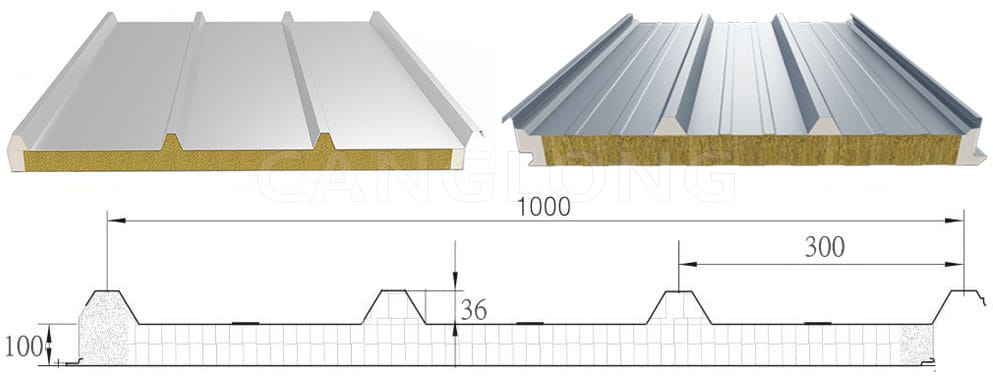

100mm Polyurethane Edge-Sealed Rockwool Roof Panel
- Effective Width: 1000mm/1m
- Profile Types: 4/5 ribs
- Core Material Density: 80-120kg/m³
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Color of Steel Plate: White/Offwhite/Blue or Customized
- Core Thickness: 100mm
- Coating: PE/HDP/PVDF/SMF
- Plating: Hot-galvanize/Aluminium/Stainless
- Sound Insulation: ≥30db
- Flammability Rating: A
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details

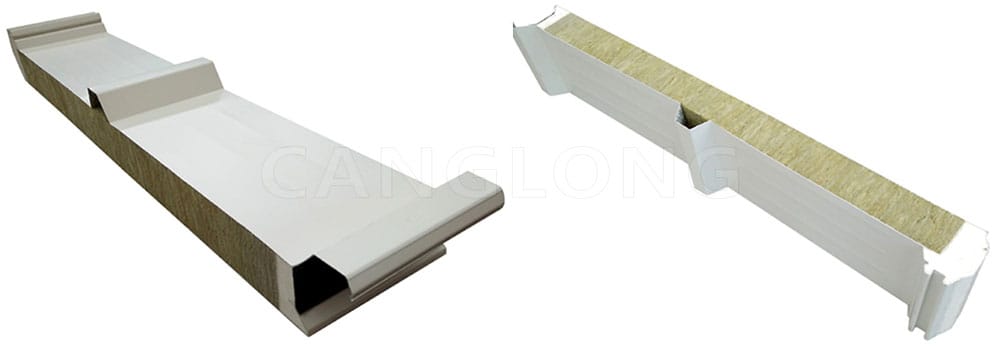

The 100mm thickness polyurethane edge-sealed rockwool roof panel is a high-quality energy-saving building board made of 100mm thick non-combustible structural rock wool as the core material, galvanized or galvanized color coated steel plate as the finish, polyurethane edge-sealed at both ends, and a professionally developed adhesive to combine the three. This structure makes the board have both the fireproof and thermal insulation properties of rock wool and the waterproof and moisture-proof properties of polyurethane. At the same time, the color steel plate also provides it with good decorativeness and durability.
Features of polyurethane edge-sealed rockwool roof panel
- Excellent fireproof performance: Since rock wool is a non-combustible material, the board has a high fireproof rating, which can effectively prevent the spread of fire and provide more time for escape.
- Good thermal insulation: The low thermal conductivity of rock wool makes the board have excellent thermal insulation performance, which can effectively block heat transfer and reduce energy consumption.
- Strong waterproof and moisture-proof performance: The polyurethane edge sealing layer can effectively block moisture and prevent moisture intrusion, ensuring that the board can still maintain good performance in a humid environment.
- Good aesthetic decoration: The color steel plate is used as a finishing material, which makes the board have a rounded and smooth appearance and beautiful decorative effect.
- Strong durability: The board is not easily affected by factors such as ultraviolet rays and oxidation, and can maintain its performance and service life for a long time.
Polyurethane Edge-sealed Rock Wool Sandwich Roof Panel Parameters
| Panel Thickness | Heat Conductivity (W/m2.K) | Weight(kg) | Load capacity (P=KN/M2) | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 0.75 | 15.75 | L(m) | 3.78 | 3.13 | 3.31 | 2.98 | 2.41 |
| 75mm | 0.53 | 18.68 | L(m) | 4.83 | 4.21 | 4.21 | 3.76 | 3.01 |
| 100mm | 0.41 | 21.62 | L(m) | 5.77 | 5.02 | 5.02 | 4.47 | 3.55 |
| 150mm | 0.31 | 27.51 | L(m) | 7.53 | 6.54 | 6.54 | 5.82 | 4.61 |
Application of polyurethane edge-sealed rockwool roof panel
100 mm polyurethane edge-sealed rock wool roof panel is widely used in the roof enclosure structure of various steel structure buildings, such as steel structure workshops, power plants, power equipment companies, car showrooms, cement warehouses, steel structure offices, etc. In addition, the board can also be used for wall structures that require fire protection, thermal insulation, waterproof and moisture-proof.
Advantages of polyurethane edge-sealed rock wool roof panel
- Superior comprehensive performance: The board combines the advantages of rock wool, polyurethane and color steel plate, and has multiple properties such as fire protection, thermal insulation, waterproof and moisture-proof and beautiful decoration.
- Energy saving and environmental protection: The board can be recycled and reused, meeting the requirements of environmental sustainability. At the same time, its excellent thermal insulation performance also helps to reduce energy consumption and achieve energy conservation and emission reduction.
- Convenient construction: The board is light in weight, high in strength, easy to cut and install, and can greatly shorten the construction period.
- Economical and practical: Although the initial investment of the board may be high, its excellent comprehensive performance and long service life make it highly cost-effective.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
