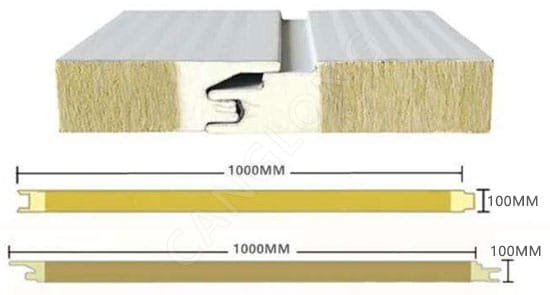

100mm PU Edge Sealing Rockwool Wallboard
- Effective Width: 1000mm/1m
- Profile Types: Micro-wave/Square-wave/Embossed/V8/Plain
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Insulation Material: Polyurethane (PU) + Rock wool
- Core Thickness: 100mm
- Coating: PE/SMF/HDP/PVDF
- Plating: Hot-dip galvanizing/Aluminium/Stainless steel
- Sound Insulation: ≥30db
- Flammability Rating: A
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
100mm thick PU (polyurethane) edge-sealed rock wool wall panel is a high-quality building insulation board, widely used in various steel structure buildings and commercial buildings. The price of PU edge sealing rockwool wallboard is affected by many factors, such as raw material price, production process, brand, etc. The specific price needs to be negotiated and determined according to market conditions and customer needs.
Material composition
- Core material: rock wool board, with good thermal insulation performance.
- Edge material: polyurethane (PU), providing excellent waterproof, moisture-proof and sealing performance.
- Panel: Color steel plate, as a double-sided panel, increases the overall strength and aesthetics of the board.
Specifications
- Thickness: 100mm
- Length and width: non-standard customization according to customer needs
- Color steel panel thickness: generally 0.4mm~0.8mm, specific thickness can also be customized on demand
Main features
- Fire retardant: PU edge sealing rockwool wallboard can meet Class A fire protection standards and has excellent fire resistance.
- Insulation: The thermal conductivity of the rock wool core is low, which makes the board have good insulation effect.
- Waterproof and moisture-proof: The polyurethane edge sealing layer effectively prevents rainwater from penetrating and extends the service life of the board.
- High strength: The overall strength of the board is high, the bending resistance is good, and it can withstand a certain load.
- Beautiful and durable: The appearance is flat and beautiful, the joints are tight, the strength is reliable, and it is suitable for various building appearance requirements.
PU Edge Sealing Rock Wool Sandwich Wall Panel Parameters
| Panel Thickness | Heat Conductivity (W/m2.K) | Weight(kg) | Load capacity (P=KN/M2) | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 0.75 | 15.53 | L(m) | 3.66 | 3.13 | 2.75 | 2.46 | 2.12 |
| 75mm | 0.53 | 18.37 | L(m) | 4.90 | 4.22 | 3.73 | 3.35 | 2.91 |
| 100mm | 0.41 | 21.21 | L(m) | 5.99 | 5.17 | 4.58 | 4.12 | 3.59 |
| 150mm | 0.31 | 26.88 | L(m) | 7.82 | 6.75 | 5.98 | 5.37 | 4.68 |
Application areas
- Steel structure buildings: such as industrial plants, warehouses, etc., provide good thermal insulation and fire resistance.
- Commercial buildings: such as shopping centers, office buildings, etc., meet the insulation, fire prevention and aesthetic requirements of building exterior walls.
- Other areas: such as refrigerated trucks, cold storage and other places that require thermal insulation.
Matters needing attention
- Customized production: PU edge sealing rockwool wallboards are usually customized, and customers need to provide detailed specifications according to their own needs.
- Installation and maintenance: During the installation process, it is necessary to ensure that the joints between the boards are tight to prevent rainwater from penetrating. At the same time, regularly inspect and maintain the boards to extend their service life.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
