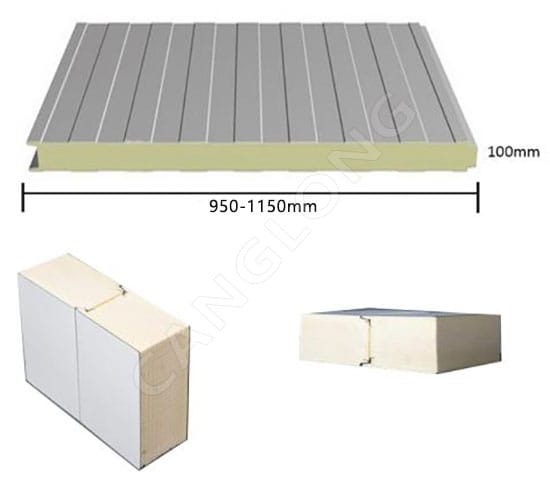

100mm PU Sandwich Wall Panel
- Effective Width: 950/1000/1150mm
- Profile Types: Micro-wave/Square-wave/Embossed/V8/Plain
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Core Material Density: 40 to 45kg/m³
- Color of Steel Plate: RAL color / Customized
- Insulation Material: PU/PUR/PIR
- Core Thickness: 100mm
- Coating: PE/SMP/HDP/PVDF
- Plating: Hot-dip galvanizing/Hot-dip aluminium/Stainless steel
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
PU sandwich wall panel, also known as polyurethane sandwich panels, usually consist of the following structures:
- Inner and outer layers of materials: generally aluminum-zinc-coated color steel plates or fiberglass plates, used to enhance the strength and corrosion resistance of the panels.
- Sandwich layer: Made of rigid polyurethane foam, it is compounded under high pressure using high-tech vacuum technology to provide the panels with excellent thermal insulation performance.

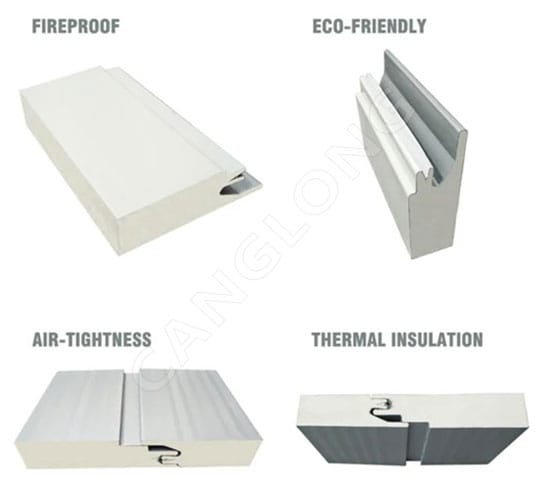

Features of 100mm PU sandwich wall panels
- Excellent thermal insulation performance: The low thermal conductivity of rigid polyurethane foam makes PU sandwich wall panels have excellent thermal insulation effects and are suitable for buildings under various climatic conditions.
- Good fire resistance: PU sandwich wall panels meet fire protection requirements, can effectively prevent the spread of fire, and ensure building safety.
- Waterproof and moisture-proof: The surface finish is high, dirt can be easily removed, and it has good waterproof and moisture-proof properties, extending the service life of the building.
- Lightweight and high-strength: light weight, high strength, easy to carry and install, reducing construction difficulty and cost.
- Beautiful and durable: the surface can be sprayed with a variety of colors, the board style is diverse, and it can be personalized according to the needs of the building. It is durable, not easy to deform and brittle.
PU Sandwich Wall Panel – Load distribution
| Panel Thickness | R-Value(m2.K/W) at 23℃ | Weight(kg) | Load capacity (P=KN/M2) | 0.50 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 2.24 | 10.06 | L(m) | 3.52 | 3.04 | 2.59 | 2.42 | 2.11 |
| 75mm | 3.30 | 11.06 | L(m) | 4.71 | 4.09 | 3.64 | 3.29 | 2.89 |
| 100mm | 4.45 | 12.05 | L(m) | 5.76 | 5.02 | 4.47 | 4.05 | 3.56 |
| 120mm | 5.55 | 12.84 | L(m) | 6.53 | 5.68 | 5.07 | 4.60 | 4.04 |
| 150mm | 6.65 | 14.04 | L(m) | 7.56 | 6.58 | 5.87 | 5.32 | 4.68 |
Application of 100mm PU sandwich wall panels
The 100mm thick PU sandwich wall panels have been widely used in the construction field with their unique structure and excellent performance, and have significant advantages. PU sandwich wall panels are widely used in the following fields:
- Industrial plant: used for the enclosure system of walls and roofs, providing thermal insulation and fire resistance.
- Civil buildings: used for the walls and roofs of residential buildings, apartments, etc. to improve living comfort and safety.
- Logistics warehousing: used for the walls and roofs of warehouses and cold storages to ensure the storage safety of goods.
- Integrated housing: used for temporary buildings, container houses, etc., providing fast and convenient construction solutions.
Advantages of 100mm PU sandwich wall panels
- Good comprehensive benefits: PU sandwich wall panels integrate load-bearing, thermal insulation, fire prevention, and waterproofing, and do not require secondary decoration. The installation is quick and convenient, the construction period is short, and the comprehensive benefits are significant.
- High cost performance: Although the initial investment is relatively high, considering its excellent thermal insulation performance and long service life, the overall cost performance is better than traditional building materials.
- Environmental protection and energy saving: It complies with the requirements of the national energy conservation and emission reduction policy, which is conducive to reducing energy consumption and environmental pollution.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
