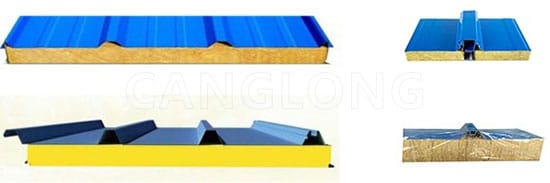

100mm Rock Wool Roof Panel With 4 Ribs

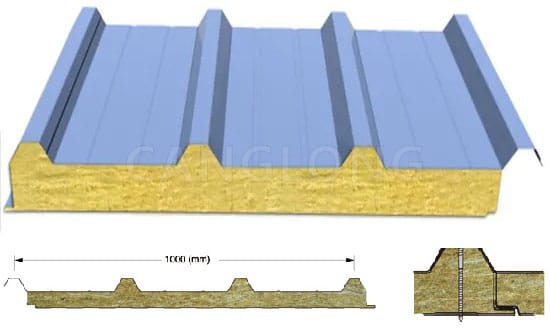

- Effective Width: 1000mm/1m
- Core Material Density: 80-120kg/m³
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Color of Steel Plate: White/Offwhite/Blue or Customized
- Core Thickness: 50/75/100/150/200mm
- Coating: PE/HDP/PVDF/SMF
- Plating: Hot-galvanize/Aluminium/Stainless
- Sound Insulation: ≥30db
- Flammability Rating: A
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details

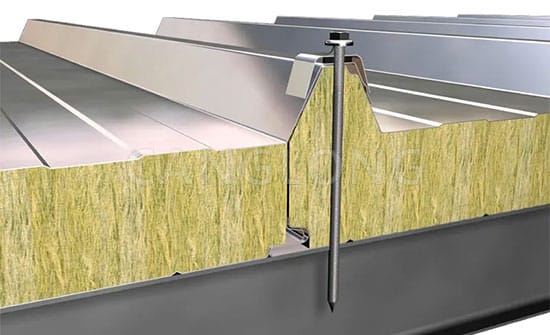

Rock wool roof panel is mainly composed of rock wool core material and surface structure. The rock wool core material is an inorganic fiber material made from natural ore (such as basalt) after high-temperature melting and fiberization, and has excellent fireproof, thermal insulation and heat insulation properties. The surface structure may include waterproof, moisture-proof and weather-resistant materials to protect the rock wool core material and enhance the overall performance of the roof panel. In addition, the 4-ribs design may refer to the reinforcement or support structure of the roof panel to improve the compressive strength and stability of the roof panel.
Characteristics of 100mm rock wool roof panel with 4 ribs
- Excellent fire resistance: Rock wool roof panels are made of inorganic fiber materials, have extremely high fire resistance, will not burn, and will not produce toxic smoke, and meet the national standard A-level fire protection requirements.
- Good thermal insulation performance: Rock wool sandwich roof panels have a low thermal conductivity, which can effectively prevent heat transfer, maintain indoor temperature stability, and improve the energy efficiency of buildings.
- Excellent sound absorption and noise reduction performance: The porous structure of the rock wool roof panel gives it good sound absorption and noise reduction performance, which can effectively reduce the spread of noise and create a quiet and comfortable living environment for residents.
- Waterproof and moisture-proof: The surface structure treated with special processes makes the rock wool roof boards have excellent waterproof and moisture-proof performance, which can effectively prevent moisture penetration and keep the building dry and comfortable.
- High compressive strength: The 4-corrugated design enhances the compressive strength and stability of the roof panel, enabling it to withstand external pressures such as wind loads and snow loads, ensuring the long-term stability of the roof system.
Application of 100mm rock wool roof panel with 4 ribs
100mm thick 4-ribs rock wool sandwich roof panel is widely used in the roof structure of various buildings, including but not limited to:
- Industrial plant: The roof of the industrial plant needs to withstand large loads and temperature changes, and also needs to have high fire resistance. Rock wool roof panel can meet these needs and provide high-quality thermal insulation and fire protection for industrial plants.
- Public buildings: such as schools, hospitals, shopping malls, etc., need to provide a safe and comfortable indoor environment for a large number of people. Rock wool roof panels not only have good fireproof performance, but also can effectively reduce noise, improve thermal insulation performance, and provide a high-quality indoor environment for public buildings.
- Residential buildings: As people’s requirements for living quality increase, the fire safety performance of residential buildings has also received more and more attention. As a high-performance fireproof and thermal insulation material, rock wool roof sandwich panels can provide reliable safety guarantees for residential buildings.
Rock Wool Sandwich Roof Panel Parameters
| Panel Thickness | Heat Conductivity (W/m2.K) | Weight(kg) | Load capacity (P=KN/M2) | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 0.75 | 15.75 | L(m) | 3.78 | 3.13 | 3.31 | 2.98 | 2.41 |
| 75mm | 0.53 | 18.68 | L(m) | 4.83 | 4.21 | 4.21 | 3.76 | 3.01 |
| 100mm | 0.41 | 21.62 | L(m) | 5.77 | 5.02 | 5.02 | 4.47 | 3.55 |
| 150mm | 0.31 | 27.51 | L(m) | 7.53 | 6.54 | 6.54 | 5.82 | 4.61 |
Advantages of 100mm rock wool roof panel with 4 ribs
- Improve building safety: 100mm rock wool sandwich roof panels with 4ribs have excellent fireproof performance, can effectively prevent the spread of fire, reduce the losses caused by fire, and improve the safety of buildings.
- Reduce energy consumption: rock wool roof sandwich panels have good thermal insulation performance, can effectively prevent heat transfer, maintain indoor temperature stability, and thus reduce the energy consumption of buildings.
- Improve living comfort: rock wool roof panels have excellent sound absorption and noise reduction performance and waterproof and moisture-proof performance, which can create a quiet, dry and comfortable living environment for residents.
- Environmentally friendly and sustainable: the main raw material of rock wool roof panel is natural ore, does not contain harmful substances, and does not generate pollution during the production process. At the same time, the rock wool roof board will not produce harmful substances during use and can be recycled and reused after disposal, which is in line with the development trend of modern green buildings.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
