120mm Thick PIR Wall Panel
- Effective Width: 950/1000/1150mm
- Profile Types: Micro-wave/Square-wave/Embossed/V8/Plain
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Core Material Density: 40 to 45kg/m³
- Color of Steel Plate: RAL color
- Insulation Material: Polyurethane (PU)
- Core Thickness: 120mm
- Coating: PE/SMP/HDP/PVDF
- Plating: Hot-dip galvanizing/Hot-dip aluminium/Stainless steel
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details

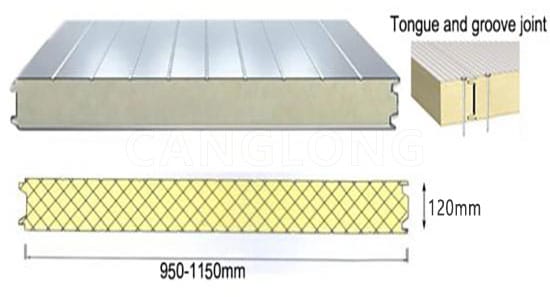

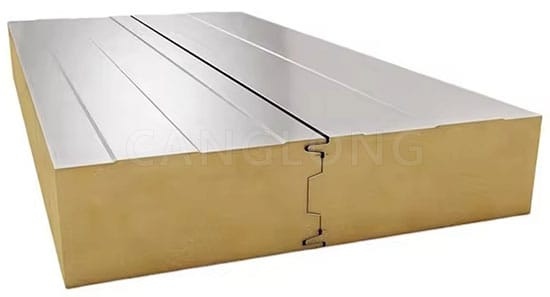

PIR wall panel, also known as polyurethane modified polyisocyanurate wall panel, is a high-performance building material. PIR wall panels are mainly composed of steel plates (as panels) and PIR core materials (as sandwich layers). The steel plate material can be selected from color coated steel plate, galvanized steel plate, aluminum zinc plated steel plate, stainless steel plate, aluminum magnesium manganese alloy plate, etc. Its thickness is usually between 0.4mm and 1.0mm. The PIR core material thickness of the 120mm thick PIR wall panel is 120mm, which has excellent thermal insulation performance. The connection method usually adopts the tongue and groove type to ensure the overall stability and sealing of the wall panel.
Characteristics of PIR wall panels
- Excellent thermal insulation performance: PIR wall panels have a low heat transfer coefficient, which can effectively prevent heat transfer and achieve good thermal insulation effect.
- Good fire resistance: PIR material itself has excellent fire resistance, is not easy to burn, and does not produce toxic gases when burned, meeting the national A-level fire protection standard.
- Lightweight and High Strength: PIR sandwich panels are lightweight but have high strength, capable of withstanding certain loads and impacts, and easy to handle and install.
- Excellent sound insulation performance: The closed cell structure of PIR core material can effectively isolate the propagation of sound, therefore PIR wall panel hasgood sound insulation effect.
- Environmental protection and health: PIR sandwich wall panels do not release harmful substances during production and use, and are harmless to human health and the environment.
PIR Sandwich Wall Panel – Load distribution
| Panel Thickness | R-Value(m2.K/W) at 23℃ | Weight(kg) | Load capacity (P=KN/M2) | 0.50 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 2.24 | 10.06 | L(m) | 3.52 | 3.04 | 2.59 | 2.42 | 2.11 |
| 75mm | 3.30 | 11.06 | L(m) | 4.71 | 4.09 | 3.64 | 3.29 | 2.89 |
| 100mm | 4.45 | 12.05 | L(m) | 5.76 | 5.02 | 4.47 | 4.05 | 3.56 |
| 120mm | 5.55 | 12.84 | L(m) | 6.53 | 5.68 | 5.07 | 4.60 | 4.04 |
| 150mm | 6.65 | 14.04 | L(m) | 7.56 | 6.58 | 5.87 | 5.32 | 4.68 |
Application of PIR sandwich wall panel
PIR wall panels are widely used in various construction fields, including residential buildings, apartments, office buildings, schools, and other public buildings. It can be used as an exterior wall panel, as well as an interior wall panel or partition board. At the same time, PIR sandwich panels are also suitable for buildings in various climatic conditions, whether it is the cold north or the hot south, they can play a good role in thermal insulation.
Advantages of PIR wall panels
- Significant energy-saving effect: Due to the excellent thermal insulation performance of PIR panel, it can significantly reduce the energy consumption of buildings and improve energy utilization efficiency.
- Convenient and fast construction: PIR sandwich wall panels adopt a prefabricated construction method, which is easy and fast to install, greatly shortening the construction period.
- High comprehensive cost-effectiveness: Although the initial investment of PIR panels may be slightly higher, due to their excellent performance and longer service life, their comprehensive cost-effectiveness is superior to other similar building materials.
- Beautiful and durable: PIR wall panels have a beautiful and elegant appearance, which can meet the needs of different architectural styles. At the same time, it also has characteristics such as corrosion resistance and aging resistance, which can maintain its good performance for a long time.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
