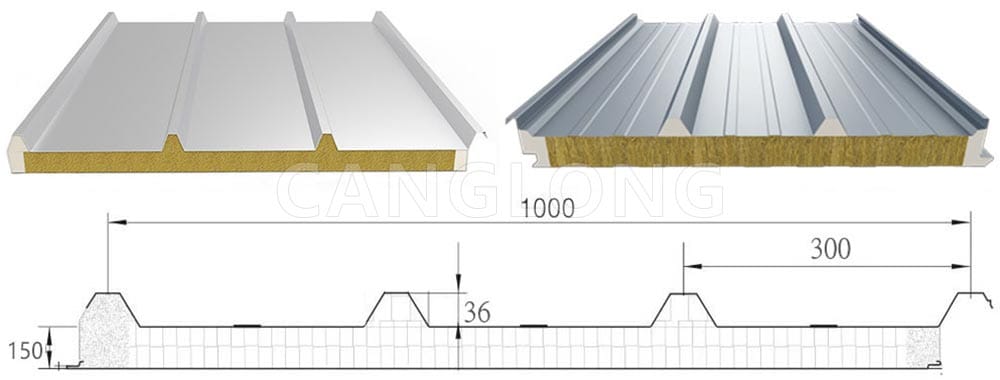

150mm PU Foam Edge Sealing Rockwool Roof Panel
- Effective Width: 1000mm/1m
- Profile Types: 3/4/5 ribs
- Core Material Density: 80-120kg/m³
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Color of Steel Plate: White/Offwhite/Blue or Customized
- Core Thickness: 150mm
- Coating: PE/HDP/PVDF/SMF
- Plating: Hot-galvanize/Aluminium/Stainless
- Sound Insulation: ≥30db
- Flammability Rating: A
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
The 150mm thickness PU foam edge sealing rockwool roof panel is designed for optimal thermal insulation and soundproofing in various construction applications. This panel is an excellent choice for those seeking a combination of insulation, soundproofing, and fire safety in roofing solutions.
150mm pu foam edge sealing rock wool roof panel is a high-performance, environmental protection, fire prevention, heat insulation, waterproof, sound insulation building material, widely used in various large-scale construction occasions. When selecting and purchasing this product, it is recommended that customers customize it according to their actual needs and choose suppliers with rich production experience and high-quality services for cooperation.
Specification parameters
- Thickness: 150mm
- Fire rating: Class A
- Width: Generally 1000mm, can also be customized according to customer needs.
- Length: The maximum length can reach 11.8m, and the specific length can be cut according to customer needs.
- Steel plate thickness: The outer plate thickness is 0.4mm0.8mm, and the inner plate thickness is 0.4mm0.6mm.
- Rock wool density: generally 80kg/m ³~120kg/m ³, can be adjusted according to customer needs.
- Color: Customizable according to Ral color code.
PU Foam Edge Sealing Rock Wool Roof Sandwich Panel Parameters
| Panel Thickness | Heat Conductivity
(W/m2.K) |
Weight(kg) | Load capacity
(P=KN/M2) |
0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 0.75 | 15.75 | L(m) | 3.78 | 3.13 | 3.31 | 2.98 | 2.41 |
| 75mm | 0.53 | 18.68 | L(m) | 4.83 | 4.21 | 4.21 | 3.76 | 3.01 |
| 100mm | 0.41 | 21.62 | L(m) | 5.77 | 5.02 | 5.02 | 4.47 | 3.55 |
| 150mm | 0.31 | 27.51 | L(m) | 7.53 | 6.54 | 6.54 | 5.82 | 4.61 |

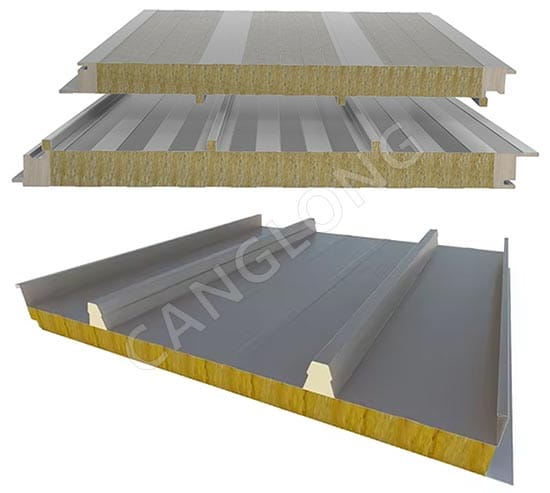

Features of 150mm PU foam edge sealing rockwool roof panel
- Thickness: At 150mm, this panel provides excellent insulation against heat and sound.
- Core Material: The core is made of high-density rockwool, known for its fire-resistant properties and sound absorption capabilities.
- Edge Sealing: The panel includes a PU foam edge sealing, which enhances airtightness and prevents thermal bridging.
- Durability: Resistant to moisture and decay, ensuring longevity in various weather conditions.
- Easy Installation: Lightweight design allows for easier handling and installation on-site.
Application scope
This product is widely used on the roofs and walls of various large factory buildings, workshops, cold storage rooms, villas, etc., especially suitable for occasions with high performance requirements for insulation, fire prevention, waterproofing, sound insulation, etc.
Installation and maintenance
Installation: This product is easy and fast to install, and can be fixed with screws, pasted, and other methods for installation. During the installation process, it is necessary to ensure good sealing at the board joints to improve overall performance.
Maintenance: Regular cleaning and maintenance of the product can extend its service life. During use, it is important to avoid scratching the surface with sharp objects to prevent any impact on aesthetics and performance
Benefits of pu foam edge sealing rockwool roof panel
- Energy Efficiency: Reduces energy consumption by minimizing heat loss or gain.
- Sound Insulation: Effectively dampens noise, making it ideal for commercial and industrial buildings.
- Fire Safety: Rockwool is non-combustible, adding a layer of fire protection.
- Environmental Impact: Made from natural materials, contributing to sustainable building practices.

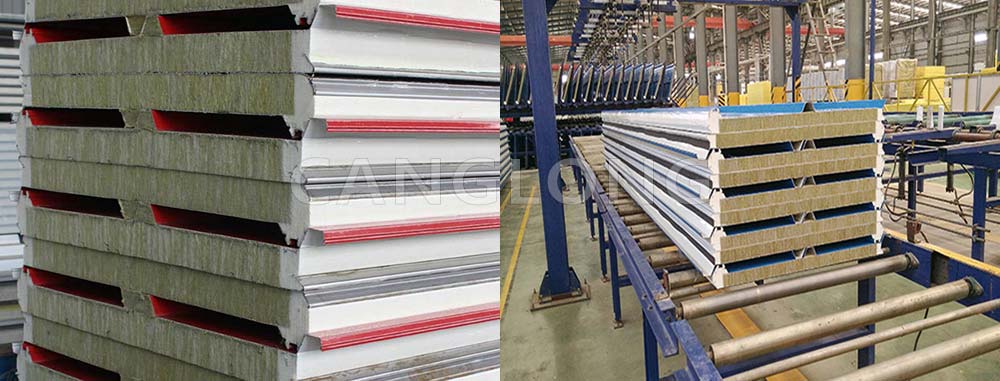

Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
-
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
-
Packing: Per customer's requirements or per product sizes, full protection packing.
-
Shipping: Per customer's requirements or per container sizes.
-
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
-
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
