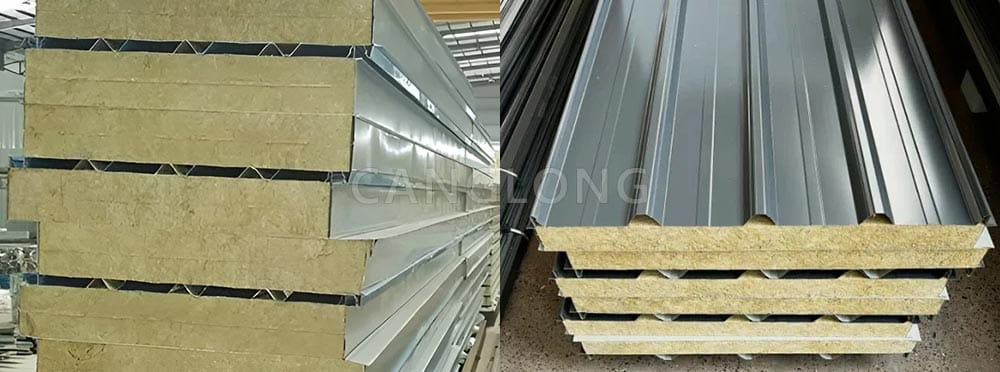

150mm Rock Wool Insulated 5 Ribs Roof Panel
- Effective Width: 950/1000mm
- Core Material Density: 80-120kg/m³
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Color of Steel Plate: White/Offwhite/Blue or Customized
- Core Thickness: 150mm
- Coating: PE/HDP/PVDF/SMF
- Plating: Hot-galvanize/Aluminium/Stainless
- Sound Insulation: ≥30db
- Flammability Rating: A
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details

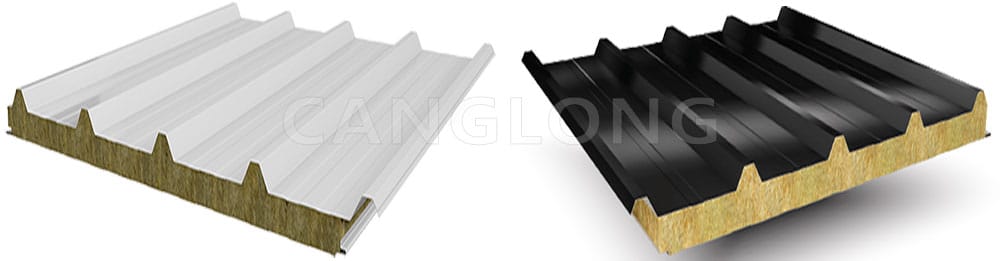

The 150mm thickness rock wool insulated 5 ribs roof panel is a popular choice in modern construction, particularly for industrial and commercial buildings. The rock wool insulated roof panel provide excellent thermal insulation, soundproofing, and fire resistance, making them ideal for various applications.
Key Features
- Insulation Thickness: The 150mm thickness of the rock wool core provides superior thermal insulation, helping to maintain comfortable indoor temperatures and reduce energy consumption.
- Ribbed Design: The 5 ribs on the panel enhance structural stability and strength, allowing for longer spans and reducing the need for additional support.
- Rock Wool Core: Made from natural volcanic rock, rock wool offers excellent thermal performance and is non-combustible, providing a high level of fire resistance.
- Durability:The panels are designed to withstand harsh weather conditions, making them suitable for a variety of climates.
- Moisture Resistance:Rock wool does not absorb moisture, which helps prevent mold growth and maintains the integrity of the insulation.
- Sound Insulation:The dense structure of rock wool provides effective soundproofing, making these panels ideal for buildings that require noise control.
Rock Wool Insulated Sandwich Roof Panel Parameters
| Panel Thickness | Heat Conductivity (W/m2.K) | Weight(kg) | Load capacity (P=KN/M2) | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 0.75 | 15.75 | L(m) | 3.78 | 3.13 | 3.31 | 2.98 | 2.41 |
| 75mm | 0.53 | 18.68 | L(m) | 4.83 | 4.21 | 4.21 | 3.76 | 3.01 |
| 100mm | 0.41 | 21.62 | L(m) | 5.77 | 5.02 | 5.02 | 4.47 | 3.55 |
| 150mm | 0.31 | 27.51 | L(m) | 7.53 | 6.54 | 6.54 | 5.82 | 4.61 |
Benefits of rock wool insulated roof panel
- Energy Efficiency: The high thermal performance of the 150mm insulation helps reduce heating and cooling costs, contributing to overall energy savings.
- Fire Safety: The non-combustible nature of rock wool enhances the fire safety of the building, making it compliant with various fire codes and regulations.
- Environmental Sustainability: Rock wool is made from natural and recycled materials, making it an eco-friendly insulation option.
- Versatility: Suitable for various applications, including warehouses, industrial facilities, and commercial buildings, these panels can be used for roofs and walls.

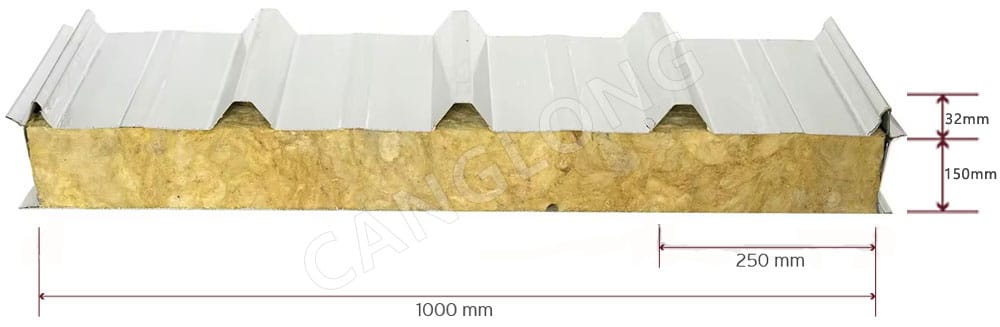

| Useful Width (mm) | 1000 | 950 |
| Rib Height (mm) | 35 | 55 |
| Rib Count | 5 | 4 |
| Sheet Type and Thickness (mm) | 0.20 – 0.80 | |
| Paint Type | Polyester, PVDF | |
| Color | RAL 9002 a | |
| Insulation Thickness (mm) – h | 50 – 60 – 75 – 80 – 100-120 | |
| Declared Thermal Conductivity (10°C) (W/mK) | ≤ 0.040 | |
| Reaction to Fire | A2-S1 | |
| Fire Resistance | REI 120* | |
Applications of rock wool insulated roof panel
- Industrial Buildings: Ideal for factories and manufacturing plants where thermal and sound insulation is crucial.
- Commercial Structures: Commonly used in shopping centers, office buildings, and recreational facilities for improved energy efficiency and comfort.
- Cold Storage Facilities: Effective for refrigerated warehouses where maintaining specific temperature ranges is essential.
- Agricultural Buildings: Suitable for barns and storage units, providing insulation and protecting livestock and equipment.
Installation Considerations
- Site Preparation: Ensure the roof structure is adequately prepared to support the weight of the panels. Proper drainage should be in place to avoid water accumulation.
- Panel Handling: Handle panels carefully to avoid damage. Use appropriate lifting equipment if necessary, especially for larger panels.
- Sealing and Jointing: Properly seal joints between panels to prevent air leaks and ensure optimal insulation performance.
- Professional Installation: Engaging experienced professionals for installation can help ensure that panels are fitted correctly, maximizing their performance and lifespan.
- Compliance with Codes: Ensure that installation meets local building codes and regulations regarding insulation and fire safety.
Conclusion
The 150mm thick rock wool insulated 5 ribs roof panel is an excellent choice for those seeking a combination of thermal efficiency, fire safety, and sound insulation. Its robust design, along with the benefits of rock wool, makes it suitable for a wide range of applications in modern construction. By considering the installation and maintenance aspects, builders and architects can effectively utilize the rock wool insulated roof panel to enhance the performance and sustainability of their projects.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
