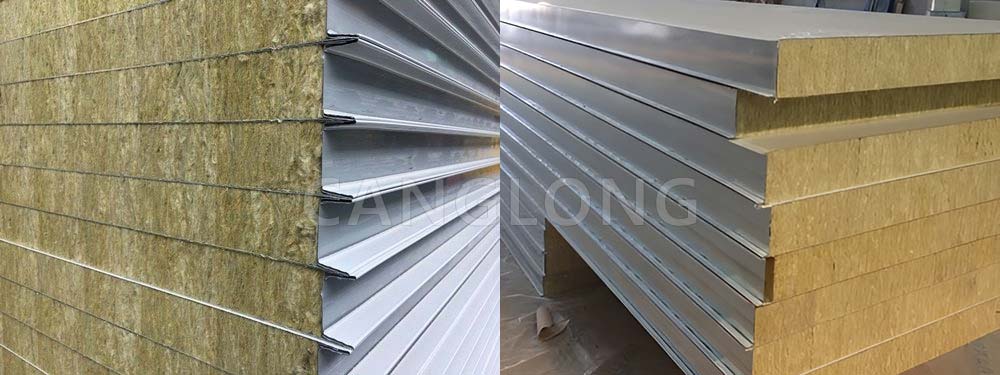

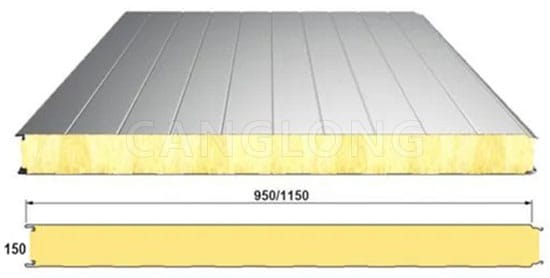

150mm Rock Wool Sandwich Wall Panel
- Effective Width: 950/1150mm
- Core Material Density: 80-120kg/m³
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Color of Steel Plate: White/Grey/Offwhite/Blue (Ral Color)
- Core Thickness: 150mm
- Coating: PE/HDP/PVDF/SMF
- Plating: Hot-galvanize/Aluminium/Stainless
- Sound Insulation: ≥30db
- Flammability Rating: A
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
The 150mm thickness rock wool sandwich wall panel is an advanced building material designed to provide superior insulation, structural integrity, and fire resistance. These panels are increasingly popular in commercial, industrial, and residential applications due to their efficiency and versatility.
Main Features of rock wool sandwich wall panel
- Insulation Core: The core of the panel is made from 150mm thick rock wool, which offers excellent thermal insulation properties, helping to maintain comfortable indoor temperatures and reduce energy costs.
- Sandwich Construction: The sandwich design typically consists of two outer layers made of metal (such as steel or aluminum) or other materials, enclosing the rock wool core. This construction enhances strength and durability.
- Fire Resistance: Rock wool is inherently non-combustible, providing a high level of fire protection, making these panels compliant with fire safety regulations.
- Sound Insulation: The dense structure of rock wool also contributes to effective soundproofing, making these panels suitable for noise-sensitive environments.
- Moisture Resistance: The rock wool core does not absorb moisture, helping to prevent mold growth and maintaining the integrity of the insulation.
Rock Wool Sandwich Wall Panel Parameters
| Panel Thickness | Heat Conductivity (W/m2.K) | Weight(kg) | Load capacity (P=KN/M2) | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 0.75 | 15.53 | L(m) | 3.66 | 3.13 | 2.75 | 2.46 | 2.12 |
| 75mm | 0.53 | 18.37 | L(m) | 4.90 | 4.22 | 3.73 | 3.35 | 2.91 |
| 100mm | 0.41 | 21.21 | L(m) | 5.99 | 5.17 | 4.58 | 4.12 | 3.59 |
| 150mm | 0.31 | 26.88 | L(m) | 7.82 | 6.75 | 5.98 | 5.37 | 4.68 |
Advantages of rock wool sandwich wall panel
1. Energy Efficiency:
The high thermal performance of the 150mm insulation reduces heating and cooling costs, leading to significant energy savings over time.
2. Environmental Sustainability:
Made from natural and recycled materials, rock wool panels are an eco-friendly choice, contributing to sustainable building practices.
3. Versatility:
These panels are suitable for various applications, including walls and roofs, in a wide range of building types, from warehouses to residential homes.
4. Quick Installation:
Pre-manufactured panels allow for faster installation compared to traditional building methods, reducing labor costs and construction time.
| Sheet Type and Thickness (mm) | Painted Galvanized Sheet (0.40 – 0.80) |
| Paint Type | Polyester PVDF |
| Colour | RAL 9002ª |
| Texture | Corrugated, Microlined |
| Insulation | Rock Wool |
| Insulation Thickness (mm) – h | 50 – 75 – 100 – 120 – 150 – 200 |
| Declared Thermal Conductivity (10°C) (W/mK) | ≤ 0.040 |
| Reaction for Fire | A2-S1, d0 |
| Fire Resistance | EI 60* |
Applications of rock wool sandwich wall panel
Industrial Buildings
Ideal for factories and manufacturing facilities where thermal insulation and fire safety are critical.
Commercial Structures
Used in shopping centers, office buildings, and recreational facilities to improve energy efficiency and occupant comfort.
Cold Storage Facilities
Effective for refrigerated warehouses and food processing plants that require strict temperature control.
Residential Construction
Suitable for energy-efficient homes, contributing to better insulation and lower utility bills.
Installation Considerations
- Site Preparation: Ensure that the site is adequately prepared and that the wall structure can support the weight of the panels. Proper drainage and moisture management should be in place.
- Handling and Storage: Panels should be handled with care to avoid damage. Store them in a dry location to protect the insulation from moisture.
- Sealing and Jointing: Properly seal the joints between panels to prevent air leaks and ensure optimal insulation performance. Use appropriate sealants that are compatible with the materials.
- Professional Installation:It is advisable to engage experienced professionals for installation to ensure that panels are fitted correctly and to maximize their performance and lifespan.
- Compliance with Building Codes:Ensure that the installation adheres to local building codes and regulations, particularly concerning insulation and fire safety.
Conclusion
The 150mm rock wool sandwich wall panel is an excellent choice for those seeking high-performance insulation, fire safety, and soundproofing in their buildings. Its robust design and versatility make it suitable for a wide range of applications in modern construction. By considering installation and maintenance best practices, builders and architects can effectively leverage these panels to enhance the energy efficiency and sustainability of their projects.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
