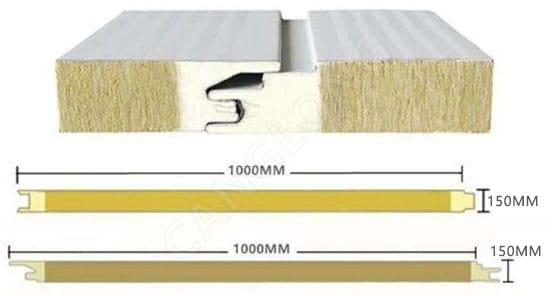

150mm Rock Wool Wall Panel With PU Edge
- Effective Width: 1000mm/1m
- Profile Types: Micro-wave/Square-wave/Embossed/V8/Plain
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Insulation Material: Polyurethane (PU) + Rock wool
- Core Thickness: 50/75/100/150/200mm
- Coating: PE/SMF/HDP/PVDF
- Plating: Hot-dip galvanizing/Aluminium/Stainless steel
- Sound Insulation: ≥30db
- Flammability Rating: A
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details

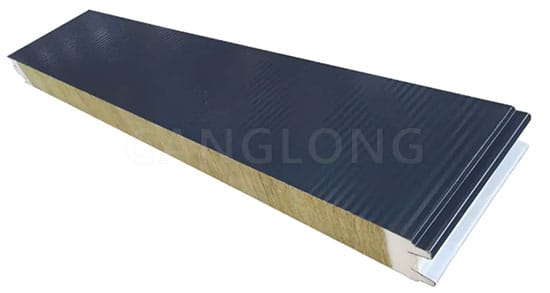

Rock wool wall panel with pu edge, also known as polyurethane edge-sealed rock wool wall panel, is a high-quality energy-saving building board that uses non-combustible structural rock wool as the core material, galvanized or aluminum-zinc color-coated steel plate as the finish, and the two are compounded together through a professionally developed adhesive, and the two ends are sealed with polyurethane (PU).

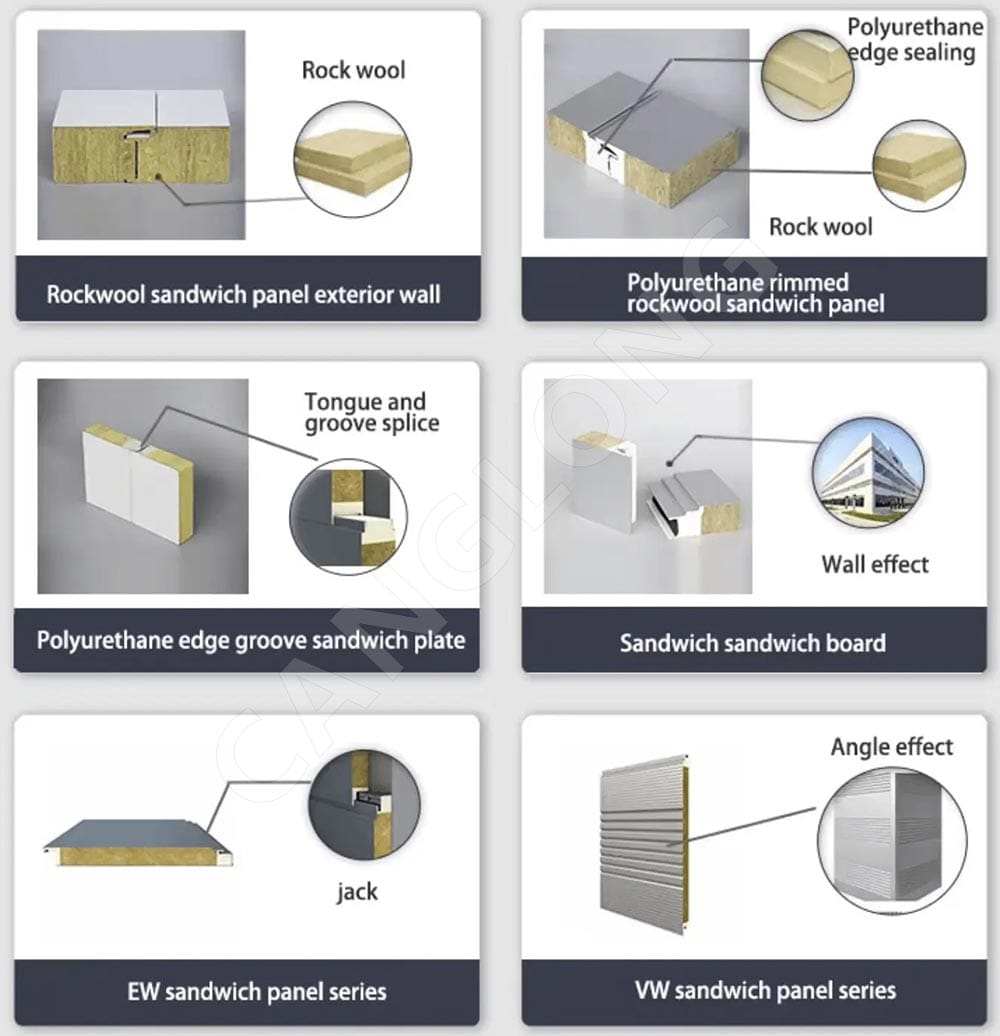

The structure of PU edge-sealed rock wool wall panel mainly consists of the following parts:
- Core material: non-combustible structural rock wool is used as the core material. Rock wool is made of natural rocks and minerals, etc., and has excellent fire resistance and thermal insulation properties.
- Panel: High-quality galvanized or aluminum-zinc color-coated steel plate is used as a double-sided panel, which has excellent anti-corrosion and anti-aging properties.
- Edge-sealing material: Polyurethane (PU) is used for edge sealing at both ends, and the professionally developed adhesive interacts with the core material and the panel to form a high-quality building board.
Features of rock wool wall panel with pu edge
- Excellent fire resistance: Rock wool as the core material has excellent fire resistance, which can effectively resist the spread of fire and protect the safety of buildings.
- Good thermal insulation: Rock wool has low thermal conductivity, can provide excellent thermal insulation effect, and reduce energy consumption.
- Waterproof and moisture-proof: The polyurethane edge sealing layer has excellent waterproof performance, which overcomes the disadvantage of rock wool’s easy water absorption and deliquesce, and prolongs the service life of the product.
- Sound insulation and noise reduction: The porous structure of rock wool gives it excellent sound absorption performance, which can absorb noise and reduce transmission, creating a quiet indoor environment.
- Beautiful decoration: Color-coated steel plates are used as panels with a variety of colors and textures to choose from, which can meet different decoration needs.
PU Edge Sealing Rock Wool Sandwich Wall Panel Parameters
| Panel Thickness | Heat Conductivity (W/m2.K) | Weight(kg) | Load capacity (P=KN/M2) | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 0.75 | 15.53 | L(m) | 3.66 | 3.13 | 2.75 | 2.46 | 2.12 |
| 75mm | 0.53 | 18.37 | L(m) | 4.90 | 4.22 | 3.73 | 3.35 | 2.91 |
| 100mm | 0.41 | 21.21 | L(m) | 5.99 | 5.17 | 4.58 | 4.12 | 3.59 |
| 150mm | 0.31 | 26.88 | L(m) | 7.82 | 6.75 | 5.98 | 5.37 | 4.68 |
Application of rock wool wall panel with pu edge
PU edge-sealed rock wool wall panels are widely used in various steel structure buildings, such as steel structure workshops, power plants, power equipment companies, car showrooms, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, large supermarkets, logistics centers, etc. It is particularly suitable for occasions that require fire protection, thermal insulation, sound insulation and noise reduction, as well as beautiful decoration.
Advantages of rock wool wall panel with pu edge
- Superior comprehensive performance: PU edge-sealed rock wool wall panels combine the advantages of rock wool and polyurethane, and have multiple properties such as fire prevention, thermal insulation, waterproof and moisture-proof, sound insulation and noise reduction, and beautiful decoration.
- Convenient construction: The wall panels are produced in a standardized manner, no secondary processing is required on site, and the installation cycle is short, which can greatly shorten the construction period.
- Environmental protection and energy saving: Rock wool and polyurethane are both environmentally friendly materials, do not contain substances harmful to the environment, and have good thermal insulation properties, which can effectively reduce the energy consumption of buildings.
- Economical and practical: Although the initial investment may be slightly higher, considering its excellent comprehensive performance and long service life, rock wool wall panel with pu edge has a high cost-effectiveness.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
