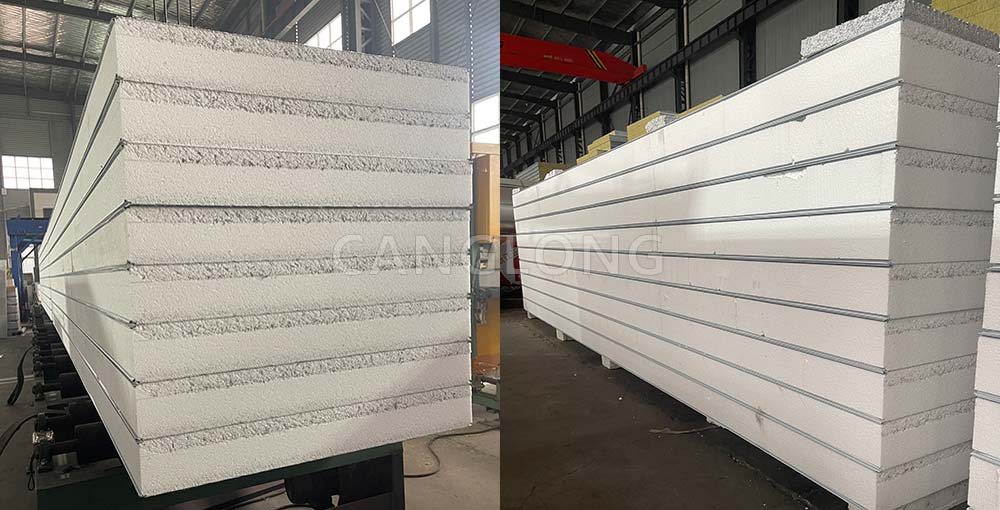

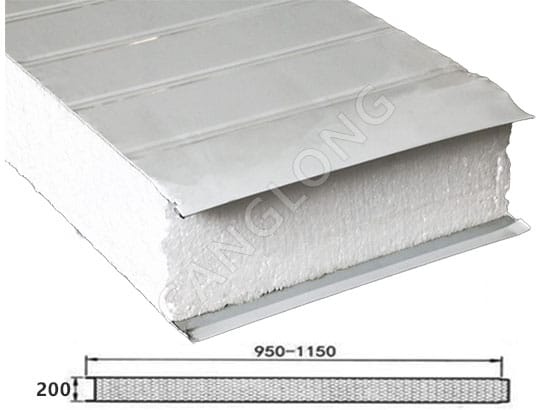

200mm Polystyrene Wall Insulation Panel
- Effective Width: 950/1150mm
- Metal Sheet Thickness: 0.2mm to 0.8mm
- Coating and Plating: PE/HDP/PVDF/SMF/Hot-galvanize/Aluminium/Stainless
- Color of Steel Plate: White/Offwhite/Blue or Customized
- Core Material: Polystyrene (EPS or XPS)
- Core Thickness: 200mm
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
The 200mm thickness polystyrene wall insulation panel is designed to provide effective thermal insulation for various building applications. Made from high-density polystyrene (EPS or XPS), these panels are lightweight, durable, and offer excellent insulating properties. They are commonly used in residential, commercial, and industrial constructions.
The 200mm polystyrene wall insulation panel is an excellent choice for enhancing thermal efficiency in various buildings. Its lightweight nature, durability, and cost-effectiveness make it a preferred option for builders and homeowners alike. By following proper installation practices, you can achieve a well-insulated space that contributes to energy savings and comfort.
Characteristics of 200mm polystyrene wall insulation panel
Material Composition
Made from expanded (EPS) or extruded (XPS) polystyrene, ensuring a high insulation value and moisture resistance.
Thickness
At 200mm thick, these panels provide substantial thermal resistance, making them ideal for energy-efficient building designs.
Thermal Performance
Low thermal conductivity, which helps maintain stable indoor temperatures and reduces energy costs for heating and cooling.
Moisture Resistance
Polystyrene panels are resistant to moisture, preventing mold and mildew growth and enhancing the durability of the insulation.
Polystyrene Wall Insulation Sandwich Panel – Span Table
| Name | Wall Panel | ||||
| Effective width(mm) | 950/1150 | ||||
| Sheet thickness(mm) | 0.2mm to 0.8mm | ||||
| Sheet color | Customized | ||||
| Core thickness(mm) | 50 | 75 | 100 | 150 | 200 |
| Mass (kg/㎡） | 9 | 9.37 | 9.74 | 10.47 | 11.21 |
| R-value (m2.K/W) | 1.22 | 1.82 | 2.43 | 3.66 | 4.88 |
Advantages of polystyrene wall insulation panel
- Energy Efficiency: The high insulation value significantly reduces energy consumption, leading to lower utility bills.
- Lightweight: Easy to handle and install, reducing labor costs and speeding up construction time.
- Durability: Resistant to pests, moisture, and rot, ensuring a long lifespan with minimal maintenance.
- Cost-Effective: Offers excellent thermal performance at a competitive price, making it a popular choice for builders and homeowners.
- Versatile Applications: Suitable for various applications, including exterior walls, interior walls, and foundation insulation.
| Non-Cyclonic Reqion A&B | Cyclonic Reqion A&B | ||
| Wind Speed (km/h) | Span (mm) | Wind Spend (km/h) | Span (mm) |
| 118.8 | 5400 | 147.6 | 3600 |
| 147.6 | 4200 | 180 | 3000 |
| 180 | 3600 | ||
Applications of 200mm thick polystyrene wall insulation panel
Residential Construction: Ideal for homes seeking improved energy efficiency and comfort.
Commercial Buildings: Used in office buildings and retail spaces to enhance thermal performance and reduce energy costs.
Industrial Facilities: Effective for warehouses and manufacturing plants requiring insulation and energy savings.
Renovations: Perfect for retrofitting existing structures to improve insulation without significant structural changes.
Installation Process
1. Preparation
- Clean the Area: Ensure the wall surface is clean, dry, and free of debris.
- Inspect the Wall: Check for any structural issues that need addressing before installation.
2. Measuring and Cutting
- Measure the Wall: Determine the dimensions of the area to be insulated.
- Cut Panels: Use a utility knife to cut panels to the required size for a snug fit.
3. Applying Adhesive
- Choose Adhesive: Use a suitable adhesive for polystyrene panels.
- Apply Adhesive: Spread adhesive on the back of the panel or directly on the wall, following the manufacturer’s instructions.
4. Positioning Panels
- Install the First Panel: Press the first panel firmly against the wall, ensuring it is level and properly aligned.
- Continue Installation: Repeat the process for additional panels, ensuring tight seams between them.
5. Sealing Gaps
- Use Sealant: Apply sealant along the edges and joints of the panels to prevent air and moisture infiltration.
6. Finishing Touches
- Optional Wall Covering: Consider adding drywall or another finish over the panels for additional protection and aesthetics.
- Final Inspection: Check all panels for secure attachment and proper sealing.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
-
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
-
Packing: Per customer's requirements or per product sizes, full protection packing.
-
Shipping: Per customer's requirements or per container sizes.
-
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
-
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
