200mm Polyurethane Sealing Rockwool Sandwich Panel For Wall
- Effective Width: 1000mm/1m

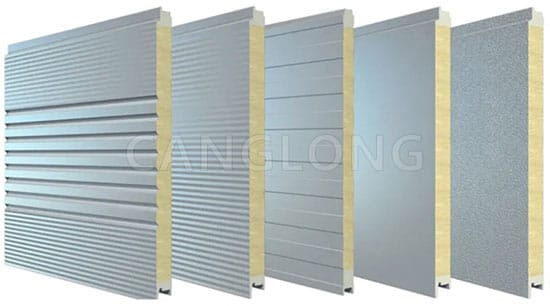

- Profile Types: Micro-wave/Square-wave/Embossed/V8/Plain
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Insulation Material: Polyurethane (PU) + Rock wool
- Core Thickness: 200mm
- Coating: PE/SMF/HDP/PVDF
- Plating: Hot-dip galvanizing/Aluminium/Stainless steel
- Sound Insulation: ≥30db
- Flammability Rating: A
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
The 200mm thickiness polyurethane sealing rockwool sandwich panel is a versatile building material designed for wall applications. Combining the benefits of rock wool insulation with a polyurethane core, this sandwich panel provides excellent thermal performance, sound insulation, and fire resistance. It is suitable for various commercial, industrial, and residential applications.
The 200mm polyurethane sealing rockwool sandwich panel is an excellent choice for wall applications, offering a combination of superior thermal insulation, fire resistance, and sound absorption. Its versatility and ease of installation make it suitable for a variety of environments, from industrial facilities to residential homes. By investing in high-quality sandwich panels, builders can achieve enhanced energy efficiency and safety, contributing to a sustainable and comfortable built environment.

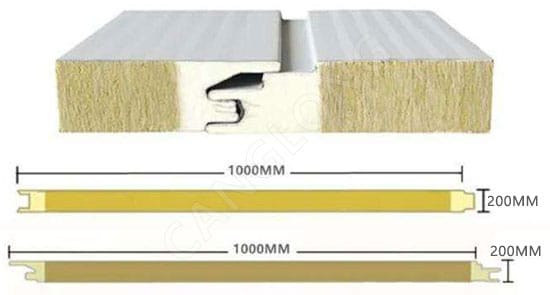

Characteristics of 200mm polyurethane sealing rockwool wall sandwich panel
Material Composition: The panel features a core made of polyurethane foam, sandwiched between two layers of rock wool, providing enhanced insulation and structural integrity.
Thickness: At 200mm thick, this panel offers superior insulation properties, making it ideal for energy-efficient building designs.
Thermal Insulation: The combination of polyurethane and rock wool ensures low thermal conductivity, significantly reducing heat transfer and energy costs.
Fire Resistance: Rock wool is naturally non-combustible and provides excellent fire protection, helping to meet safety standards.
Sound Insulation: The dense structure of rock wool effectively absorbs sound, making it ideal for environments where noise control is important.
Polyurethane Sealing Rockwool Sandwich Wall Panel Parameters
| Panel Thickness | Heat Conductivity
(W/m2.K) |
Weight(kg) | Load capacity
(P=KN/M2) |
0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 0.75 | 15.53 | L(m) | 3.66 | 3.13 | 2.75 | 2.46 | 2.12 |
| 75mm | 0.53 | 18.37 | L(m) | 4.90 | 4.22 | 3.73 | 3.35 | 2.91 |
| 100mm | 0.41 | 21.21 | L(m) | 5.99 | 5.17 | 4.58 | 4.12 | 3.59 |
| 150mm | 0.31 | 26.88 | L(m) | 7.82 | 6.75 | 5.98 | 5.37 | 4.68 |
Advantages of polyurethane sealing rockwool sandwich panel
Energy Efficiency: The high insulation value of the panel helps maintain stable indoor temperatures, leading to reduced heating and cooling expenses.
Enhanced Safety: With fire-resistant properties, these panels contribute to building safety and compliance with fire regulations.
Durability: The robust construction and resistance to moisture, pests, and mold ensure a long lifespan with minimal maintenance.
Versatility: Suitable for various applications, including warehouses, industrial buildings, and residential walls, adapting to different architectural needs.
Ease of Installation: Lightweight and designed for quick assembly, these panels reduce labor costs and accelerate construction timelines.
Applications of polyurethane sealing rockwool sandwich panel
Industrial Facilities: Ideal for manufacturing plants and warehouses requiring high thermal performance and safety standards.
Commercial Buildings: Used in office buildings and retail spaces to enhance energy efficiency and provide sound insulation.
Residential Construction: Suitable for homes looking to improve energy efficiency and soundproofing, particularly in walls.
Cold Storage Facilities: Effective in maintaining stable temperatures while ensuring compliance with safety regulations.
Installation Process
- Preparation: Ensure the installation area is clean and that the structural framework is sound. Accurate measurements are crucial for proper fitting.
- Panel Alignment: Align the panels carefully to ensure a snug fit, minimizing gaps that could impact insulation and fire resistance.
- Fastening: Secure the panels to the structural framework using appropriate fasteners, ensuring that they are tightly sealed.
- Sealing: Apply sealants at joints and edges to enhance insulation and prevent moisture infiltration.
- Finishing Touches: Optionally, panels can be finished or painted for additional protection and aesthetic appeal.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
-
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
-
Packing: Per customer's requirements or per product sizes, full protection packing.
-
Shipping: Per customer's requirements or per container sizes.
-
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.

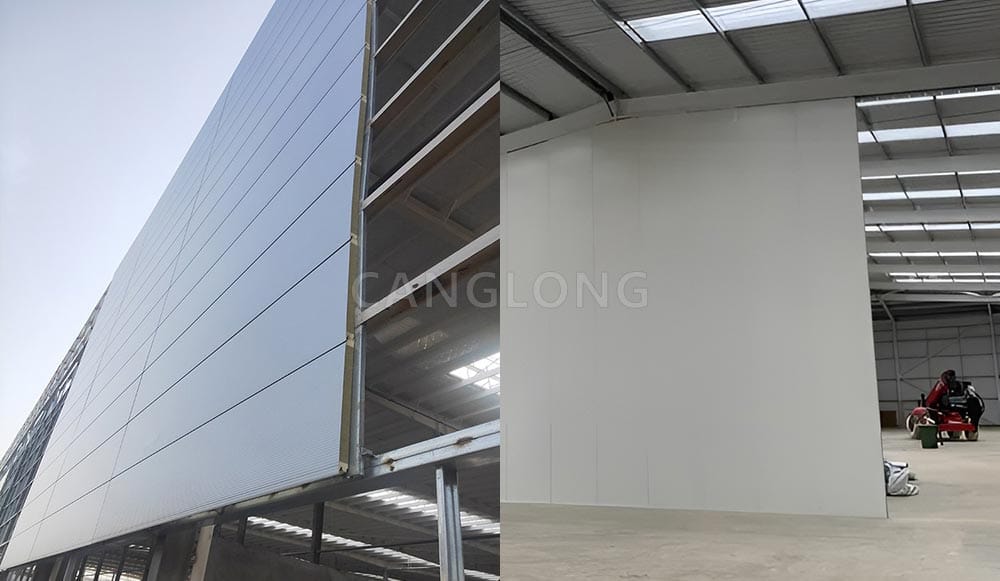

Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
-
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
