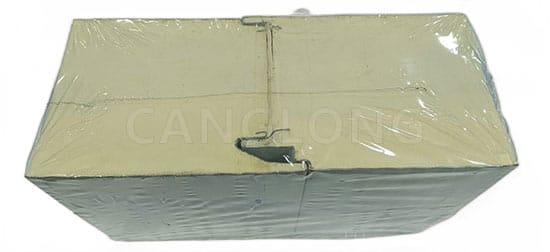

200mm Thickness Polyurethane Wall Panel

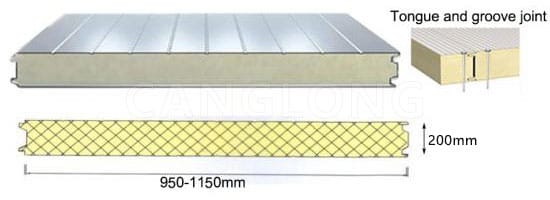

- Effective Width: 950/1000/1150mm
- Profile Types: Micro-wave/Square-wave/Embossed/V8/Plain
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Core Material Density: 40 to 45kg/m³
- Color of Steel Plate: RAL color
- Insulation Material: Polyurethane (PU)
- Core Thickness: 200mm
- Coating: PE/SMP/HDP/PVDF
- Plating: Hot-dip galvanizing/Hot-dip aluminium/Stainless steel
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details

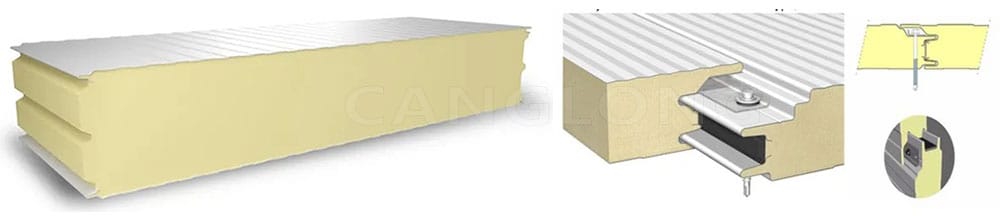

Polyurethane wall panel is usually composed of polyurethane rigid foam core and two layers of surface materials (such as metal plate, color steel plate, aluminum foil, etc.). It has a compact structure, high closed cell rate of core material, and excellent thermal insulation performance. The thickness of 200mm ensures that the wall panel has good sound insulation and thermal insulation effects, while also being able to withstand certain pressure.
Application of 200mm thickness polyurethane wall panel
- External wall insulation: used for external wall insulation systems in residential and commercial buildings to improve the insulation performance of the building.
- Roof insulation: Installing polyurethane wall panels on building roofs can effectively prevent heat loss and improve energy efficiency.
- Color steel sandwich panel: Composite with color steel plate to form sandwich panel, used for rapid construction of industrial plants, warehouses, temporary buildings, etc.
- Cold storage construction: As an insulation material for cold storage walls and roofs, it maintains a stable low-temperature environment.
Characteristics of 200mm thick polyurethane wall panel
- Excellent thermal insulation performance: Polyurethane wall panels have extremely low thermal conductivity and high thermal resistance, resulting in excellent thermal insulation effects.
- Waterproof and moisture-proof: Polyurethane sandwich wall panels have a continuous and dense skin and nearly 100% high-strength interconnected wall closure, with ideal impermeability.
- Good wind resistance and negative wind pressure resistance: Polyurethane sandwich panels have super strong self adhesion properties, firmly bonded to roofs and exterior walls, and can resist the effects of strong winds and negative wind pressure.
- Convenient construction: Polyurethane sandwich wall panels can adopt mechanized operation and automatic batching, with fast construction speed and short cycle.
Polyurethane Sandwich Wall Panel – Load distribution
| Panel Thickness | R-Value(m2.K/W) at 23℃ | Weight(kg) | Load capacity (P=KN/M2) | 0.50 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 2.24 | 10.06 | L(m) | 3.52 | 3.04 | 2.59 | 2.42 | 2.11 |
| 75mm | 3.30 | 11.06 | L(m) | 4.71 | 4.09 | 3.64 | 3.29 | 2.89 |
| 100mm | 4.45 | 12.05 | L(m) | 5.76 | 5.02 | 4.47 | 4.05 | 3.56 |
| 120mm | 5.55 | 12.84 | L(m) | 6.53 | 5.68 | 5.07 | 4.60 | 4.04 |
| 150mm | 6.65 | 14.04 | L(m) | 7.56 | 6.58 | 5.87 | 5.32 | 4.68 |
The advantages of polyurethane wall panels
- Lightweight and High Strength: Polyurethane wall panels have a light bulk density, which can reduce the weight of the finished product. At the same time, they have high compressive strength and can withstand tremendous pressure during the manufacturing process.
- Good durability: Polyurethane sandwich wall panel material has a stable porosity structure, basically a closed cell structure, good frost resistance and sound absorption, and a long average service life. Under normal use and maintenance conditions, it can reach more than 30 years.
- Fireproof and flame retardant: Polyurethane wall panels have flame-retardant self extinguishing properties after adding flame retardants, which can effectively prevent the spread of fire.
- Energy saving and environmental protection: Polyurethane wall panels have excellent thermal insulation properties, which can reduce building energy consumption and carbon emissions, in line with the concept of green buildings.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
