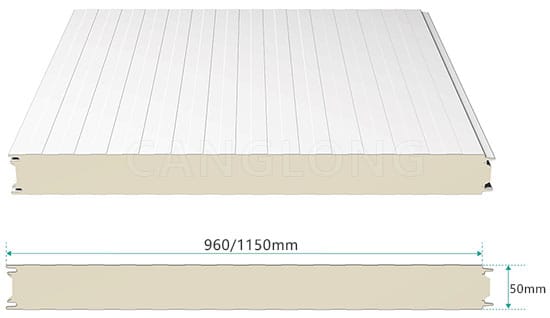

50mm Polyurethane Cold Room Panel
- Effective Width: 960/1150mm
- Core Material Density: 38 to 45kg/m³
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Core Material: PU/PIR/PUR
- Core Thickness: 50mm
- Thermal Conductivity: <0.022W/(m·k)
- Water Absorption: <0.30kg/m³
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
50mm thickness polyurethane cold room panel is a kind of insulation material commonly used in cold storage construction. It is favored for its excellent insulation, heat insulation, moisture resistance, waterproof and fire retardant properties.
Specifications and structure
- Board thickness: 50mm
- Structural features: It usually adopts a concave and convex groove structure design, which can effectively improve the insulation airtightness at the joints of the board. It is specially designed for cold storage rooms, warehouses and other places that require insulation.
Characteristics of polyurethane cold room panel
- Insulation: Rigid polyurethane has low thermal conductivity and good thermal performance. When the density of rigid polyurethane is 35-40kg/m³, the thermal conductivity is only 0.018-0.023w/(m·k), which is about half of EPS, and is one of the lowest thermal conductivity materials in insulation materials.
- Moisture-proof and waterproof: The closed-cell rate of rigid polyurethane is above 90%, which is a hydrophobic material. It will not increase the thermal conductivity due to moisture absorption, and the wall will not seep water.
- Fire retardant: After adding flame retardants, polyurethane is a flame-retardant self-extinguishing material with a softening point of more than 250 degrees Celsius. It will only decompose at higher temperatures. When polyurethane burns, a layer of ash will form on the surface of its foam. This layer of ash helps to isolate the foam below and effectively prevent the spread of fire.
- Easy installation: The polyurethane cold storage board is easy and quick to install. The storage body can be freely changed in length, width and height. It can be expanded or reduced according to actual needs. The assembled board can also be disassembled and reinstalled in a different place.
- Long service life: The porosity structure of polyurethane material is stable, which is basically a closed-cell structure, with excellent thermal insulation performance, anti-freezing and good sound absorption. Under normal use and maintenance conditions, the average life of rigid foam polyurethane insulation structure can reach more than 30 years.
Product Name | Cold Room Panel |
Fire-proof level | B1 |
Exterior face texture | Square wave / Flat effect / Embossed / Water ripple |
Interior face texture | Square wave / Flat effect / Embossed |
Exterior /Interior face thickness | 0.4-0.8mm |
Core material thickness | 50/75/80/100/120/150 mm |
Effective width | 960/1150mm |
Spreading width | 1200mm(out); 1070mm(inner) |
Length of panel | No more than container length(11.8m) |
Joint style | Hidden joint/male and female joint |
Color of steel plate | White grey, silver gray, sea-blue, crimson and so on |
Painting | Polyester coating PE, SMP coating, HDP coating, fluorocarbon coating PVDF,ect. |
Application scenarios of polyurethane cold room panel
50mm thick polyurethane cold storage panel is mainly used for various cold storage construction, including cold storage, fresh storage, quick freezing storage, etc. It is also suitable for other places that require thermal insulation, such as food workshops, pharmaceutical workshops, etc.
Market price
The market price of 50mm polyurethane cold room panel varies depending on factors such as brand, specification, and quality. Generally speaking, the price of polyurethane cold storage board of high-quality brands is relatively high, but the performance is also more stable and reliable. For specific prices, please consult relevant suppliers or manufacturers for details.
50mm thickness polyurethane cold room panel is an insulation material with excellent performance, easy installation, and long service life. It is widely used in various cold storage construction and other places that require thermal insulation. When purchasing, consumers should pay attention to factors such as product performance, price, and the reputation of the brand and supplier.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
