50mm PU Edge-Sealed Rock Wool Panel For Exterior Wall

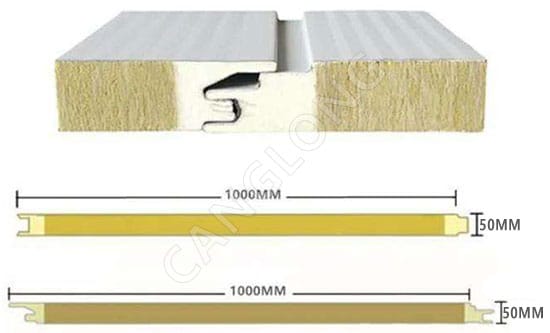

- Effective Width: 1000mm/1m

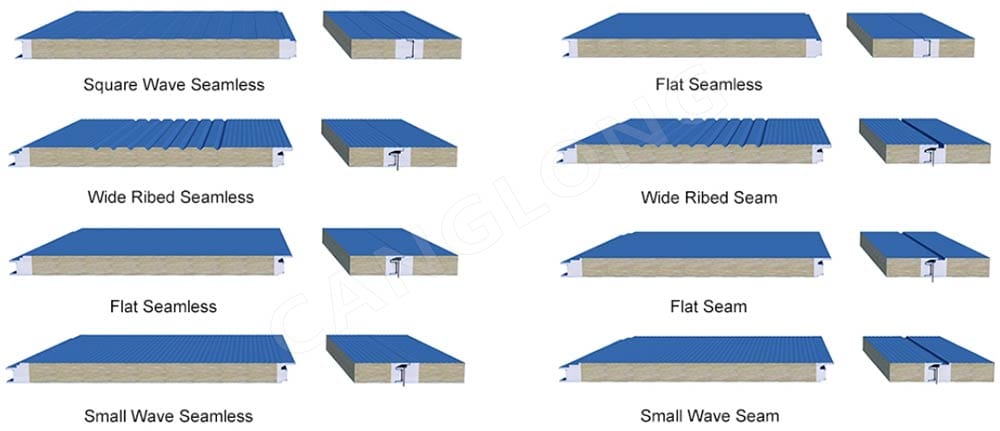

- Profile Types: Micro-wave/Square-wave/Embossed/V8/Plain
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Insulation Material: Polyurethane (PU) + Rock wool
- Core Thickness: 50mm
- Coating: PE/SMF/HDP/PVDF
- Plating: Hot-dip galvanizing/Aluminium/Stainless steel
- Sound Insulation: ≥30db
- Flammability Rating: A
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
The 50mm thickness PU edge-sealed rock wool panel is an advanced building material designed for exterior wall applications. This panel combines the thermal insulation properties of polyurethane (PU) with the fire resistance and acoustic benefits of rock wool. It is widely used in commercial, industrial, and residential buildings for its performance characteristics and energy efficiency.
Features of PU edge-sealed rock wool panel

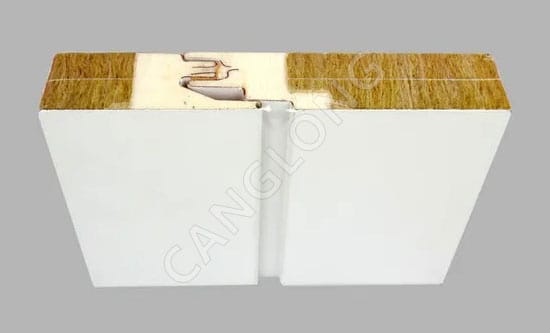

- Composite Construction: The panel consists of a core of rock wool sandwiched between two layers of PU, providing enhanced thermal insulation and fire resistance.

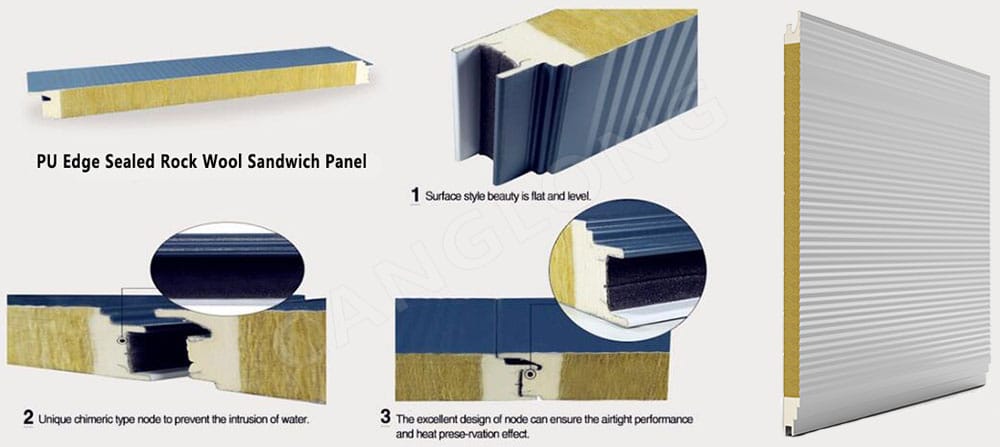

- Edge Sealing: The edge-sealed design minimizes air and moisture infiltration, improving overall energy efficiency and preventing thermal bridging.
- Thermal Insulation: With a thickness of 50mm, these panels provide excellent thermal performance, helping to maintain comfortable indoor temperatures and reduce energy consumption.
- Fire Resistance: Rock wool is inherently fire-resistant, making these panels suitable for applications where fire safety is a priority.
- Acoustic Insulation: The density of rock wool contributes to sound attenuation, making them ideal for buildings where noise control is important.

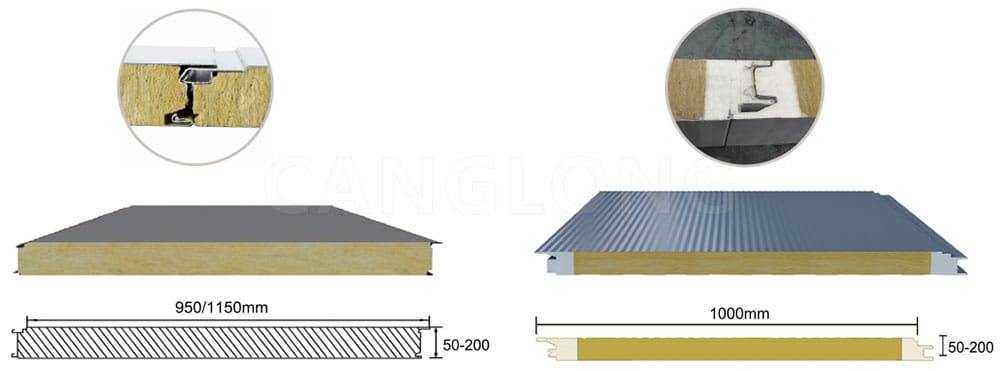

PU Edge-Sealed Rock Wool Sandwich Wall Panel Parameters
| Panel Thickness | Heat Conductivity
(W/m2.K) |
Weight(kg) | Load capacity
(P=KN/M2) |
0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 0.75 | 15.53 | L(m) | 3.66 | 3.13 | 2.75 | 2.46 | 2.12 |
| 75mm | 0.53 | 18.37 | L(m) | 4.90 | 4.22 | 3.73 | 3.35 | 2.91 |
| 100mm | 0.41 | 21.21 | L(m) | 5.99 | 5.17 | 4.58 | 4.12 | 3.59 |
| 150mm | 0.31 | 26.88 | L(m) | 7.82 | 6.75 | 5.98 | 5.37 | 4.68 |
Advantages of PU edge-sealed rock wool panel
- Energy Efficiency: The combination of PU and rock wool ensures high thermal resistance, which can lead to significant energy savings in heating and cooling costs.
- Sustainability: Rock wool is made from natural and recycled materials, while PU can also be produced with environmentally friendly processes, aligning with sustainable building practices.
- Durability: These panels are resistant to moisture, mold, and pests, ensuring long-lasting performance with minimal maintenance.
- Versatile Applications: Suitable for a variety of external wall systems, including industrial facilities, commercial buildings, and residential structures.
- Quick Installation: The lightweight nature of the panels and their prefabricated design facilitate faster installation compared to traditional wall construction methods.
Considerations
- Local Building Codes: It is essential to verify compliance with local building codes and regulations regarding insulation, fire safety, and structural requirements.
- Moisture Management: Proper installation techniques should be employed to ensure effective moisture management, particularly in areas with high humidity.
- Support Structure: The wall system must be adequately designed to support the weight of the panels and any additional finishes or cladding.
- Thermal Expansion: Consideration should be given to thermal expansion and contraction of the materials, especially in regions with extreme temperature fluctuations.
- Maintenance: While the panels are low-maintenance, regular inspections are recommended to check for any signs of damage or degradation.
Conclusion
The 50mm PU edge-sealed rock wool panel is an effective solution for exterior wall applications, offering a combination of thermal insulation, fire resistance, and acoustic performance. Its lightweight and durable nature, along with energy efficiency, makes it a popular choice for modern construction projects. By adhering to local regulations and employing proper installation techniques, builders can maximize the benefits of these panels, contributing to sustainable and energy-efficient buildings. As the demand for high-performance insulation solutions continues to grow, the 50mm thickness PU edge-sealed rock wool panel is well-positioned to meet these needs.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
-
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
-
Packing: Per customer's requirements or per product sizes, full protection packing.
-
Shipping: Per customer's requirements or per container sizes.
-
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
-
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
