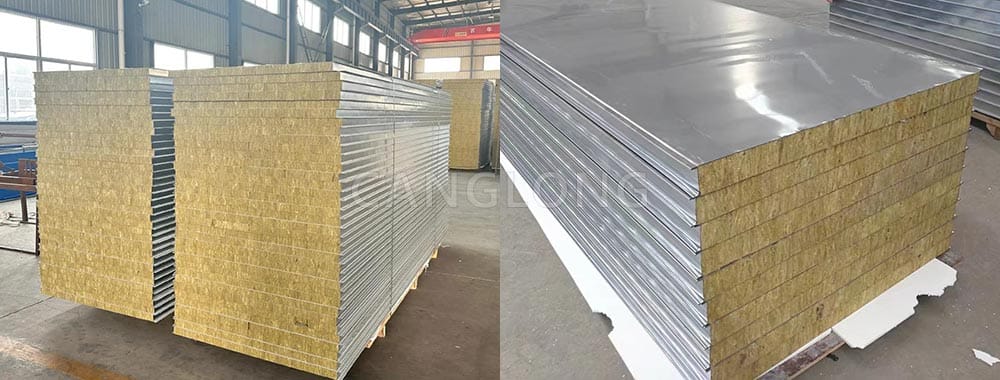

50mm Rockwool Wall Sandwich Panel
- Effective Width: 950/1150mm
- Core Material Density: 80-120kg/m³
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Color of Steel Plate: White/Grey/Offwhite/Blue (Ral Color)
- Core Thickness: 50mm
- Coating: PE/HDP/PVDF/SMF
- Plating: Hot-galvanize/Aluminium/Stainless
- Sound Insulation: ≥30db
- Flammability Rating: A
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
The 50mm thickness rockwool wall sandwich panel is a popular building material known for its excellent thermal insulation, fire resistance, and soundproofing properties. These panels are widely used in a variety of applications, including industrial buildings, commercial establishments, and temperature-controlled environments.
The 50mm rockwool wall sandwich panel is an excellent choice for anyone looking to enhance energy efficiency, fire safety, and sound insulation in their building projects. Its versatility and ease of installation make it suitable for a wide range of applications, from industrial to commercial settings. By investing in high-quality rockwool panels, builders can ensure long-lasting performance and comfort in their spaces.
Characteristics of rockwool wall sandwich panel
Material Composition:
- Exterior Layer: Typically made from steel sheets (galvanized or coated) that provide durability and weather resistance.
- Core Material: The core consists of rockwool, a mineral fiber known for its excellent thermal and acoustic insulation properties.
- Interior Layer: Often finished with a smooth surface for aesthetics and ease of cleaning.
Thickness: The panel thickness of 50mm strikes a balance between insulation performance and structural integrity, making it suitable for various climates.
Fire Resistance: Rockwool is non-combustible, providing high fire resistance and contributing to enhanced safety in buildings.
Thermal and Acoustic Insulation: Offers superior thermal insulation, helping to maintain desired indoor temperatures and reduce energy costs. Provides excellent sound insulation, making it ideal for environments requiring noise control.
Rockwool Wall Sandwich Panel Parameters
| Panel Thickness | Heat Conductivity
(W/m2.K) |
Weight(kg) | Load capacity
(P=KN/M2) |
0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 0.75 | 15.53 | L(m) | 3.66 | 3.13 | 2.75 | 2.46 | 2.12 |
| 75mm | 0.53 | 18.37 | L(m) | 4.90 | 4.22 | 3.73 | 3.35 | 2.91 |
| 100mm | 0.41 | 21.21 | L(m) | 5.99 | 5.17 | 4.58 | 4.12 | 3.59 |
| 150mm | 0.31 | 26.88 | L(m) | 7.82 | 6.75 | 5.98 | 5.37 | 4.68 |
Applications of 50mm rockwool wall sandwich panel
1. Industrial Buildings: Commonly used in factories and warehouses where thermal insulation and fire safety are critical.
2. Commercial Buildings: Suitable for shopping centers, office buildings, and retail spaces that require energy efficiency and sound control.
3. Cold Storage Facilities: Ideal for refrigerated warehouses and food processing plants, maintaining stable temperatures.
4. Acoustic Control: Used in environments requiring soundproofing, such as music studios, auditoriums, and conference rooms.
Advantages of 50mm thick rockwool wall sandwich panel
1. Energy Efficiency: The thermal insulation properties of rockwool help reduce heating and cooling costs, contributing to overall energy efficiency.
2. Fire Safety: With a high fire resistance rating, these panels enhance the safety of buildings, making them suitable for industrial and commercial applications.
3. Durability: Resistant to moisture, pests, and mold, rockwool panels have a long lifespan, reducing maintenance costs.
4. Versatility: Suitable for a wide range of applications, including warehouses, manufacturing facilities, cold storage, and more.
5. Ease of Installation: Lightweight and modular design allows for quick and easy installation, reducing labor costs and construction time.
Installation of rock wool wall sandwich panel
- Preparation: Ensure the installation area is clean and free of debris. Check the structural integrity of the supporting framework.
- Panel Alignment: Align the panels properly to ensure a tight fit and minimize thermal bridging.
- Fastening: Use appropriate fasteners to secure the panels to the framework, ensuring they are tightly sealed to prevent air and moisture infiltration.
- Sealing: Apply sealants to joints and edges to enhance insulation performance and prevent leakage.
- Finishing: Once installed, panels can be finished with additional coatings or treatments for aesthetic purposes or added protection.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
-
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
-
Packing: Per customer's requirements or per product sizes, full protection packing.
-
Shipping: Per customer's requirements or per container sizes.
-
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
-
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
