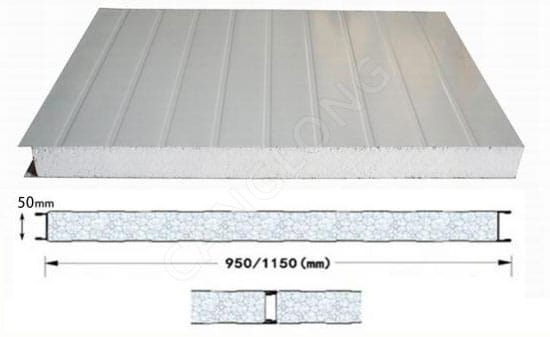

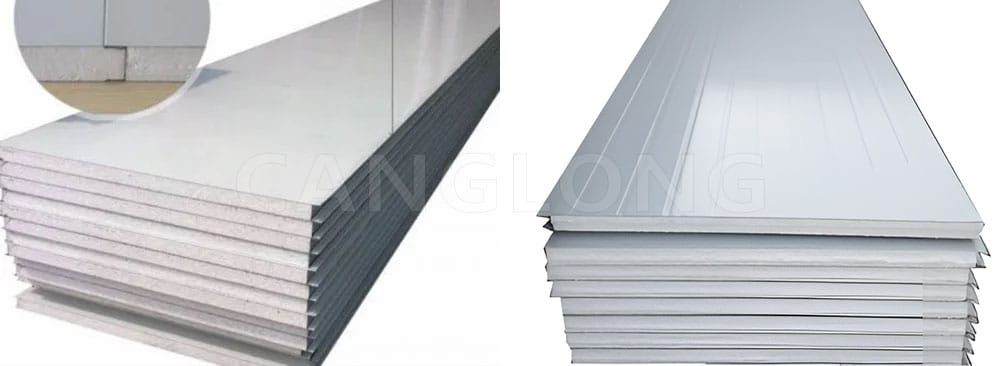

50mm Thick EPS Wall Panel
- Effective Width: 950/1150mm
- Metal Sheet Thickness: 0.2mm to 0.8mm
- Coating and Plating: PE/HDP/PVDF/SMF/Hot-galvanize/Aluminium/Stainless
- Color of Steel Plate: White/Offwhite/Blue or Customized
- Core Material: Polystyrene (EPS)
- Core Thickness: 50mm
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
50mm thick EPS wall panel is a molded polystyrene foam (EPS) wall panel with a thickness of 50 mm, which is a high-quality building insulation material. EPS wallboard has the advantages of light weight and high strength, thermal insulation, waterproof and moisture-proof, fire retardant and good processing performance. It is widely used in wall insulation, roof insulation, internal partitions and cold storage insulation. When purchasing and using, you should pay attention to product performance and quality certification to ensure building safety and insulation effect.
Characteristics of 50mm thick EPS wall panel
- Lightweight and High Strength: EPS wall panels are lightweight, easy to handle and install, and have a certain strength, which can meet the insulation and load-bearing needs of building exterior walls.
- Thermal insulation: EPS wallboard contains a large number of independent closed bubbles, with low air conductivity, and heat cannot flow inside the foam, so it has excellent thermal insulation effect.
- Waterproof and moisture-proof: The surface of EPS sandwich wall panel has been specially treated to have good waterproof and moisture-proof performance, suitable for various humid environments.
- Fireproof and flame retardant: The flame-retardant EPS wall panel is added with flame-retardant materials, which have a high oxygen index and will automatically extinguish when exposed to open flames, ensuring high safety.
- Good processing performance: EPS sandwich panels are easy to cut, paste, and install, and can be customized into various sizes and shapes according to user needs.
| Name | Wall Panel | ||||
| Effective width(mm) | 950/1150 | ||||
| Sheet thickness(mm) | 0.2mm to 0.8mm | ||||
| Sheet color | Customized | ||||
| Core thickness(mm) | 50 | 75 | 100 | 150 | 200 |
| Mass (kg/㎡） | 9 | 9.37 | 9.74 | 10.47 | 11.21 |
| R-value (m2.K/W) | 1.22 | 1.82 | 2.43 | 3.66 | 4.88 |
Application range of 50mm thick EPS wall panel
- Wall insulation: EPS wall panels can be used as insulation layers for building exterior walls, improving the insulation performance of the building and reducing energy consumption.
- Roof insulation: EPS wall sandwich panels are also suitable for roof insulation, reducing heat loss and maintaining stable indoor temperature.
- Internal partition wall: EPS sandwich wall panel can be used as an internal partition wall material, with sound insulation, fire resistance, moisture resistance and other properties.
- Cold storage insulation: Due to its excellent insulation performance, EPS wall panels are also commonly used in cold storage and other places that require insulation.
Matters needing attention
- Installation specifications: The installation of EPS wall panel should follow relevant specifications and standards to ensure installation quality.
- Maintenance: During use, attention should be paid to the maintenance of EPS sandwich wall panels to avoid damage and contamination.
- Environmental requirements: EPS wall panel, as an environmentally friendly building material, should comply with relevant national environmental standards and requirements.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
