50mm Thickness PU Panel Wall
- Effective Width: 950/1000/1150mm

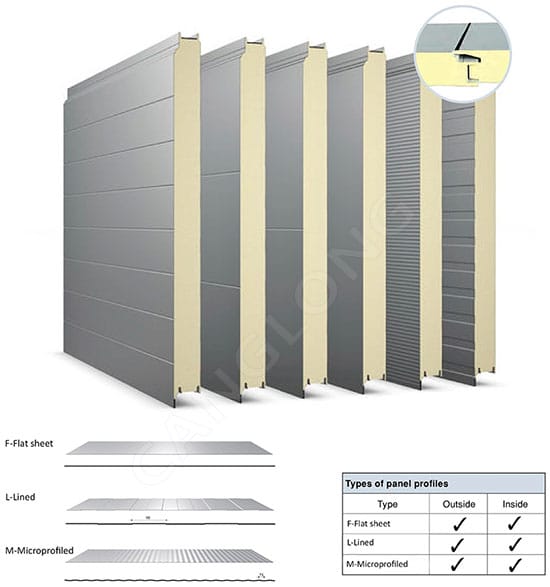

- Profile Types: Micro-wave/Square-wave/Embossed/V8/Plain
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Core Material Density: 40 to 45kg/m³
- Color of Steel Plate: RAL color / Customized
- Insulation Material: PU/PUR/PIR
- Core Thickness: 50mm
- Coating: PE/SMP/HDP/PVDF
- Plating: Hot-dip galvanizing/Hot-dip aluminium/Stainless steel
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
50mm thickness PU panel wall is a high-performance building material, widely used in energy-saving industrial plants, civil buildings, residential areas and other fields.

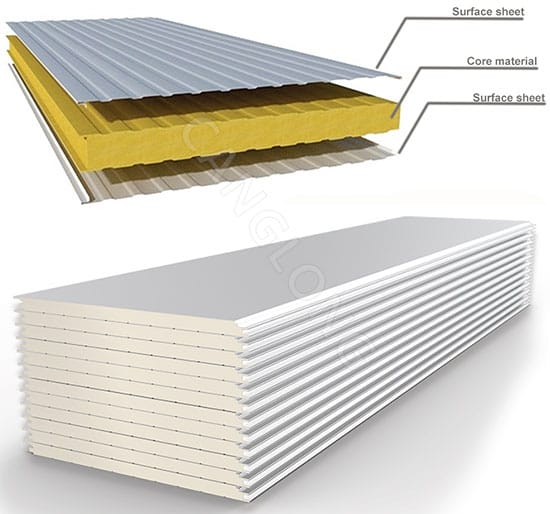

- Material: PU wall panel is also called polyurethane sandwich panel, polyurethane composite panel, polyurethane energy-saving panel, which is a double metal surface, single metal surface, non-metal surface composite panel with polyurethane rigid foam as the insulation layer.
- Thickness: The thickness of 50mm makes it suitable for occasions such as walls, roofs and floors with medium insulation requirements.
- Appearance: Rectangular board, beautiful appearance, good overall effect.
Performance advantages of PU panel wall
- Thermal insulation: It has excellent thermal insulation performance, can effectively reduce energy consumption and improve the energy efficiency of buildings.
- Fireproof performance: It has good fire resistance, meets international fire safety standards, and can effectively prevent the spread of fire.
- Waterproof and moisture-proof: It has excellent waterproof and moisture-proof performance, suitable for various humid environments.
- High strength: It has high strength and rigidity, which can meet the bearing requirements of building structures.
- Easy installation: It is quick and convenient to install, with a short construction period, which can effectively reduce construction costs.
PU Sandwich Wall Panel – Load distribution
| Panel Thickness | R-Value(m2.K/W) at 23℃ | Weight(kg) | Load capacity (P=KN/M2) | 0.50 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 2.24 | 10.06 | L(m) | 3.52 | 3.04 | 2.59 | 2.42 | 2.11 |
| 75mm | 3.30 | 11.06 | L(m) | 4.71 | 4.09 | 3.64 | 3.29 | 2.89 |
| 100mm | 4.45 | 12.05 | L(m) | 5.76 | 5.02 | 4.47 | 4.05 | 3.56 |
| 120mm | 5.55 | 12.84 | L(m) | 6.53 | 5.68 | 5.07 | 4.60 | 4.04 |
| 150mm | 6.65 | 14.04 | L(m) | 7.56 | 6.58 | 5.87 | 5.32 | 4.68 |
Application of 50mm PU panel wall
- Industrial plant: used for the wall and roof enclosure system of industrial plant to improve the thermal insulation and fire resistance of the plant.
- Civil buildings: used for wall and roof insulation of residential, office and other civil buildings to improve the comfort and energy efficiency of the building.
- Cold chain logistics: used for wall and roof insulation of cold chain logistics facilities such as food processing plants and cold storage to ensure the temperature control of goods during storage and transportation.
Selection suggestions
- Choose a well-known brand: give priority to well-known brands and high-quality suppliers to ensure product quality and after-sales service.
- Consider actual needs: select appropriate board thickness, specifications and performance parameters according to the actual needs of the building.
- Pay attention to installation quality: ensure that the installation process complies with relevant standards and specifications to improve the use effect and safety of the board.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
