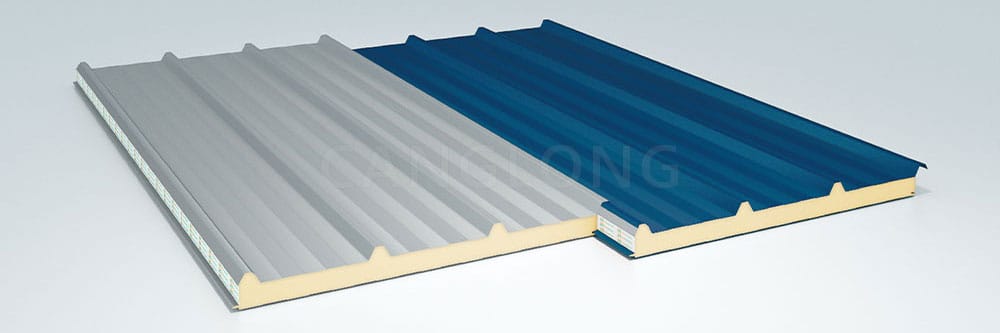

75mm Thickness 4-Ribs PUF Panel Roof

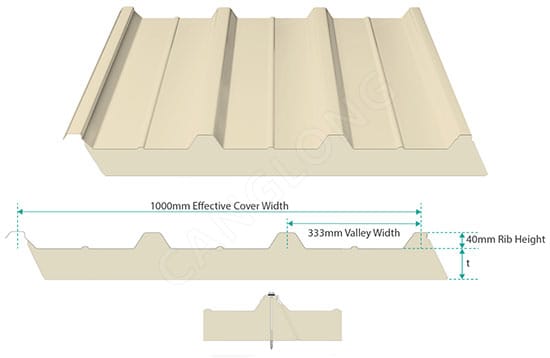

- Effective Width: 1000mm/1m
- Profile Types: 4 Ribs
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Core Material Density: 40 to 45kg/m³
- Color of Steel Plate: RAL color
- Insulation Material: Polyurethane foam (PUF)
- Core Thickness: 75mm
- Coating: PE/SMP/HDP/PVDF
- Plating: Hot-dip galvanizing/Hot-dip aluminium/Stainless steel
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details

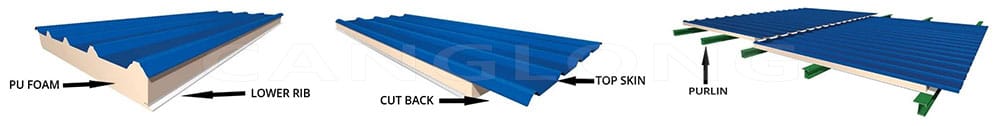

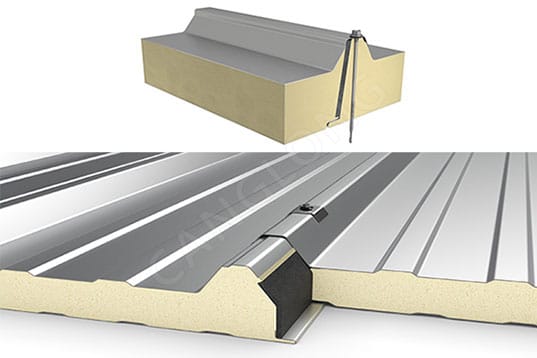

The 75mm thick 4-rib PUF panel roof is composed of multiple layers of composite structures, mainly including:
- Surface material: generally, high-strength and corrosion-resistant materials, such as color steel plate, aluminum zinc plate, etc., are used to protect the internal foam layer and enhance the overall strength of the roof board.
- Polyurethane foam core layer: as the main thermal insulation material of roof slab, it has extremely low thermal conductivity and excellent thermal insulation performance. The thickness of 75mm ensures good thermal insulation effect.
- Strengthening ribs: 4-rib design, which means that there are four strengthening ribs inside the roof slab to improve its load-bearing capacity and wind resistance.
Application of PUF panel roof
The 75mm thick 4-rib PUF roof panel is widely used in various building fields that require thermal insulation, including but not limited to:
- Residential buildings: As a roof insulation layer, it improves the thermal insulation performance of residential buildings and reduces energy consumption.
- Industrial plant: used for the roof of industrial plants to ensure stable internal temperature and reduce energy consumption.
- Agricultural greenhouse: As the roof material of the greenhouse, it provides thermal insulation function while ensuring the lighting needs of crops.
- Cold chain logistics: In cold chain logistics facilities, it serves as insulation material for the roof of cold storage to ensure stable temperature of goods during storage.
Characteristics of a 75mm thick 4-rib PUF panel roof
- Excellent thermal insulation performance: polyurethane foam core layer has extremely low thermal conductivity, and 75mm thickness ensures good thermal insulation effect.
- Strong load-bearing capacity: The 4-rib design improves the load-bearing capacity of the roof slab and can withstand large loads.
- Good anti stripping performance: The installation of reinforced ribs enhances the anti stripping performance of the roof slab, making it suitable for buildings under various climatic conditions.
- Convenient construction: The roof panel has stable dimensions, is easy to process and install, and has a fast construction speed.
PUF Roof Panel – Load distribution
| Panel Thickness | R-Value(m2.K/W) at 23℃ | Weight(kg) | Load capacity (P=KN/M2) | 0.50 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 2.24 | 10.15 | L(m) | 3.59 | 3.17 | 2.85 | 2.61 | 2.33 |
| 75mm | 3.30 | 11.18 | L(m) | 4.64 | 4.07 | 3.66 | 3.34 | 2.96 |
| 100mm | 4.45 | 12.22 | L(m) | 5.57 | 4.88 | 4.38 | 3.99 | 3.53 |
| 120mm | 5.55 | 13.05 | L(m) | 6.28 | 5.49 | 4.92 | 4.48 | 3.97 |
| 150mm | 6.65 | 14.30 | L(m) | 7.30 | 6.39 | 5.73 | 5.22 | 4.62 |
Advantages of PUF panel roof
- Energy saving and environmental protection: The 75mm thick 4-rib PUF roof panel has excellent thermal insulation performance, which can significantly reduce the energy consumption and carbon emissions of buildings, in line with the concept of green buildings.
- Long service life: The roof panel is made of high-strength and corrosion-resistant materials, which have a long service life.
- Low maintenance cost: The roof panel structure is stable and not easily damaged, reducing the frequency of repairs and replacements and lowering maintenance costs.
- Improving building quality: Using high-quality roof panel materials can enhance the overall quality and aesthetics of the building.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
