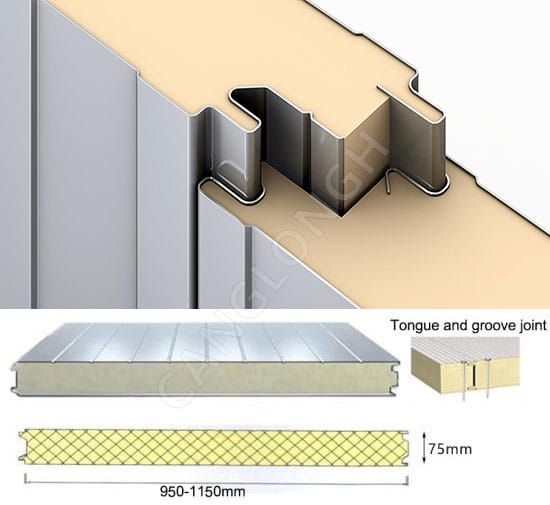

75mm Thickness PUF Wall Panel
- Effective Width: 950/1000/1150mm
- Profile Types: Micro-wave/Square-wave/Embossed/V8/Plain
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Core Material Density: 40 to 45kg/m³
- Color of Steel Plate: RAL color / Customized
- Insulation Material: PU/PUR/PIR
- Core Thickness: 75mm
- Coating: PE/SMP/HDP/PVDF
- Plating: Hot-dip galvanizing/Hot-dip aluminium/Stainless steel
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
PUF wall panel, namely polyurethane foam wall panel, is a new type of high-efficiency and energy-saving building enclosure material. PUF wall panel is usually composed of a multi-layer structure, and its core layer is 75mm thick polyurethane foam, which has good thermal insulation and heat insulation properties. Both sides are covered with high-strength, corrosion-resistant panel materials, such as color steel plates, galvanized plates, etc. These panels not only enhance the overall strength of the wallboard, but also provide good fire and moisture resistance. In addition, the wallboards are connected by specific overlap methods (such as hidden nail overlap) and sealing strips to ensure the air tightness and water tightness of the wall.
Features of 75mm thick puf wall panel
- Thermal insulation: The 75mm thick polyurethane foam layer has an extremely low thermal conductivity, which can effectively prevent the transfer of indoor and outdoor heat, thereby maintaining the stability of indoor temperature.
- Fire retardant: The polyurethane material used in PUF wall boards has been specially treated and has certain fire resistance, which can meet the requirements of building fire safety.
- Lightweight and high strength: PUF sandwich wall panels are light in weight but high in strength, easy to cut and install, and can greatly shorten the construction period.
- Environmentally friendly and non-toxic: PUF wall panel do not release harmful substances during production and use, and meet environmental protection requirements.
- Strong weather resistance: The high-strength panel material on the surface of the wall panels has good weather resistance and can resist the erosion of natural factors such as ultraviolet rays and rain.
PUF Sandwich Wall Panel – Load distribution
| Panel Thickness | R-Value(m2.K/W) at 23℃ | Weight(kg) | Load capacity (P=KN/M2) | 0.50 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 2.24 | 10.06 | L(m) | 3.52 | 3.04 | 2.59 | 2.42 | 2.11 |
| 75mm | 3.30 | 11.06 | L(m) | 4.71 | 4.09 | 3.64 | 3.29 | 2.89 |
| 100mm | 4.45 | 12.05 | L(m) | 5.76 | 5.02 | 4.47 | 4.05 | 3.56 |
| 120mm | 5.55 | 12.84 | L(m) | 6.53 | 5.68 | 5.07 | 4.60 | 4.04 |
| 150mm | 6.65 | 14.04 | L(m) | 7.56 | 6.58 | 5.87 | 5.32 | 4.68 |
Application of 75mm thick puf wall panels
PUF wall panels are widely used in various steel structure buildings, such as industrial plants, logistics warehouses, integrated houses, etc. Its excellent thermal insulation, heat insulation, fireproof performance and light weight and high strength make these buildings have significant advantages in maintaining indoor temperature stability, improving energy utilization efficiency, and reducing operating costs.
Advantages of polyurethane foam wall panels
- High efficiency and energy saving: PUF wall panels have excellent thermal insulation performance, which can significantly reduce the energy consumption of buildings and improve energy utilization efficiency.
- Convenient installation: The polyurethane foam wall panels are light in weight, easy to cut and install, which can greatly shorten the construction period and reduce construction costs.
- Beautiful and durable: The wall panels have a smooth surface and rich colors, which have a good decorative effect; at the same time, the high-strength panel material makes the wall panels have a long service life.
- High overall cost performance: Although the initial investment of PUF wall panel may be high, considering its excellent performance, long service life and reduced operating costs, its overall cost performance is still very high.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
