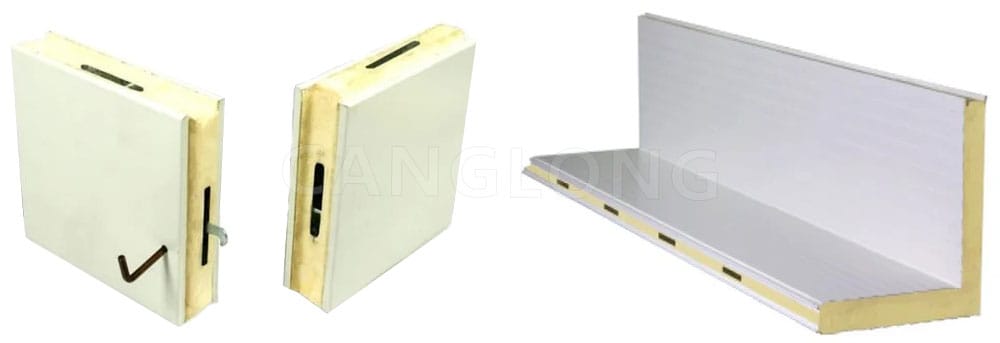

Cam Lock Type Cold Room Panel
- Effective Width: 960/1150mm
- Core Material Density: 38 to 45kg/m³
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Core Material: PIR/PUR/PU/EPS
- Core Thickness: 50/75/100/120/150/200mm
- Thermal Conductivity: <0.022W/(m·k)
- Water Absorption: <0.30kg/m³
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
Cam lock type cold room panel is specialized insulated panels designed for constructing cold storage facilities, such as refrigeration and freezing rooms. These panels utilize a cam lock system for secure and efficient assembly, providing excellent thermal insulation and durability.
Key Features
- Insulated Core: Typically filled with polyurethane (PU) or polystyrene (EPS), the core of the panels provides superior thermal insulation, helping to maintain desired temperatures in cold storage environments.

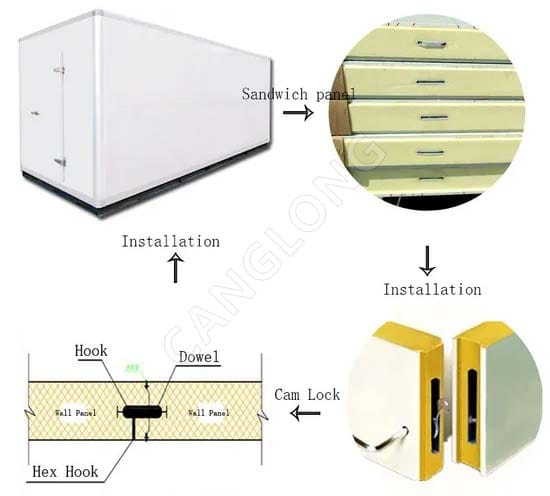

- Cam Lock System: The cam lock mechanism allows for easy assembly and disassembly of panels, ensuring tight connections that minimize thermal bridging and air leaks.
- Durable Exterior: The outer surfaces of the panels are usually made from materials such as galvanized steel, stainless steel, or aluminum, offering high durability and resistance to corrosion.
- Customizable Sizes: Cam lock panels can be manufactured in various thicknesses and dimensions to meet specific project requirements, ensuring flexibility in design.
- Easy Installation: The design of the panels facilitates quick and straightforward installation, reducing labor costs and construction time.
Product Name | Cold Room Panel |
Fire-proof level | B1 |
Exterior face texture | Square wave / Flat effect / Embossed / Water ripple |
Interior face texture | Square wave / Flat effect / Embossed |
Exterior /Interior face thickness | 0.3-0.8mm |
Core material thickness | 50/75/80/100/120/150 mm |
Effective width | 960/1150mm |
Spreading width | 1200mm(out); 1070mm(inner) |
Length of panel | No more than container length(11.8m) |

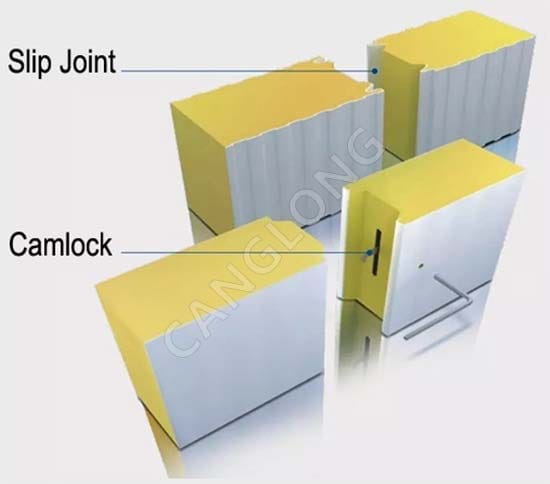

Joint style | Hidden joint/male and female joint |
Color of steel plate | White grey, silver gray, sea-blue, crimson and so on |
Painting | Polyester coating PE, SMP coating, HDP coating, fluorocarbon coating PVDF,ect. |
Advantages
- Energy Efficiency: The excellent insulation properties help reduce energy consumption by maintaining consistent temperatures, which is crucial for preserving perishable goods.
- Cost-Effective: While the initial investment may vary, the long-term savings on energy bills and reduced maintenance costs contribute to overall cost-effectiveness.
- Flexibility in Design: The modular nature of cam lock panels allows for various configurations and layouts, making them suitable for different types of cold storage applications.
- High Structural Integrity: The cam lock system ensures that panels remain securely fastened, providing stability and strength to the cold room structure.
- Hygienic Properties: The smooth surfaces of the panels are easy to clean and maintain, making them ideal for food storage applications where hygiene is paramount.
Considerations
- Local Regulations: Ensure compliance with local building codes and regulations regarding insulation, fire safety, and structural integrity.
- Site Preparation: Proper site preparation is crucial for the installation of cold room panels, including ensuring a level foundation and adequate drainage.
- Temperature Monitoring: Consider integrating temperature monitoring systems to ensure that the cold storage environment maintains the required conditions.
- Maintenance: Regular inspections of the panels and the cam lock system are necessary to prevent any issues related to wear or damage over time.
- Initial Costs: While cam lock type panels can be more expensive than traditional construction methods, the benefits of energy efficiency and durability often justify the investment.
Conclusion
Cam lock type cold room panels provide an efficient and effective solution for building cold storage facilities. Their superior insulation properties, combined with the ease of installation and secure cam lock system, make them an ideal choice for various applications in the food, pharmaceutical, and logistics industries. By considering local regulations and proper installation practices, businesses can leverage the advantages of these panels to create energy-efficient and reliable cold storage environments. As demand for high-performance cold storage solutions continues to grow, cam lock type cold room panels are well-positioned to meet these needs.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
