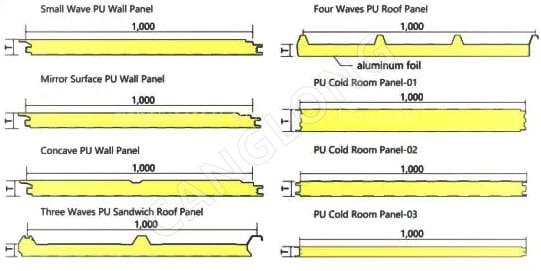

Cold Storage Insulated Panel
- Effective Width: 960/1150mm
- Core Material Density: 38 to 45kg/m³
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Core Material: PU/PIR/PUR/EPS
- Core Thickness: 50/75/80/100/150/200mm
- Thermal Conductivity: <0.022W/(m·k)
- Water Absorption: <0.30kg/m³
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
Cold storage insulated panel is essential components in the construction of facilities designed to maintain specific temperature conditions for perishable goods, pharmaceuticals, and other temperature-sensitive products. These cold storage insulated panels provide superior insulation, energy efficiency, and structural integrity, making them ideal for cold storage environments.
Features of cold storage insulated panel
1. High Thermal Insulation:
Cold storage panels are designed with high thermal resistance to minimize heat transfer, maintaining stable internal temperatures. Common insulation materials include polyurethane (PU) and expanded polystyrene (EPS).
2. Durability:
These panels are constructed to withstand harsh conditions, including moisture and temperature fluctuations. They often have a robust outer layer made of metal or fiberglass that provides additional strength.
3. Seamless Construction:
Many cold storage panels feature tongue-and-groove designs that create a tight seal between adjacent panels, reducing air leaks and improving insulation performance.
4. Moisture Resistance:
Cold storage insulated panels are designed to resist moisture absorption, which helps prevent mold growth and deterioration in humid environments.
5. Fire Resistance:
Depending on the materials used, some insulated panels can offer fire-resistant properties, contributing to overall safety in cold storage facilities.
| Product Name | Cold Storage Panel |
| Fire-proof level | B1 |
| Exterior face texture | Square wave / Flat effect / Embossed / Water ripple |
| Interior face texture | Square wave / Flat effect / Embossed |
| Exterior /Interior face thickness | 0.4-0.8mm |
Core material thickness | 50/75/80/100/120/150 mm |
| Effective width | 960/1150mm |
| Spreading width | 1200mm(out); 1070mm(inner) |
Length of panel | No more than container length(11.8m) |
Joint style | Hidden joint/male and female joint |
| Color of steel plate | White grey, silver gray, sea-blue, crimson and so on |
Painting | Polyester coating PE, SMP coating, HDP coating, fluorocarbon coating PVDF,ect. |
Benefits of cold storage insulated panel
1. Energy Efficiency:
The superior insulation provided by these panels reduces the energy required to maintain low temperatures, leading to significant cost savings on utility bills.
2. Temperature Stability:
By minimizing temperature fluctuations, cold storage insulated panel help preserve the quality and safety of perishable goods.
3. Quick Installation:
Prefabricated panels allow for rapid assembly and installation, reducing overall construction time and labor costs.
4. Versatility:
Cold storage panels can be customized in terms of size, thickness, and insulation type to meet specific operational needs.
Applications of cold storage insulated panel
Food Storage Facilities: Used in warehouses and distribution centers for storing perishable items like fruits, vegetables, dairy products, and meats.
Pharmaceutical Storage: Essential for maintaining controlled temperature environments for medications and vaccines that require refrigeration.
Cold Chain Logistics: Integral to cold chain systems that ensure temperature-sensitive products are stored and transported under optimal conditions.
Floral and Plant Storage: Used in facilities that require specific temperature and humidity levels to preserve flowers and plants.
Industrial Refrigeration: Employed in various industrial applications where temperature control is crucial for product integrity.
Installation Considerations
- Site Preparation: Proper site preparation is crucial to ensure that the foundation can support the weight of the panels and that the area is free of moisture.
- Panel Handling: Panels should be handled carefully to avoid damage. Ensure that they are stored in a dry place before installation.
- Sealing Joints: Ensure that joints between panels are properly sealed to prevent air leaks. Use appropriate sealants designed for insulated panels.
- Compliance with Regulations: Ensure that the installation meets local building codes and health regulations regarding cold storage facilities.
- Professional Installation: Hiring experienced professionals for installation can help ensure proper fitting and sealing, maximizing the performance of the cold storage system.
Cold storage insulated panel is a critical component in maintaining the quality and safety of perishable goods in various industries. Their excellent thermal insulation properties, durability, and energy efficiency make them an ideal choice for constructing cold storage facilities. By understanding the features and benefits of these panels, builders and facility managers can effectively design and implement efficient cold storage solutions that meet their specific needs.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
