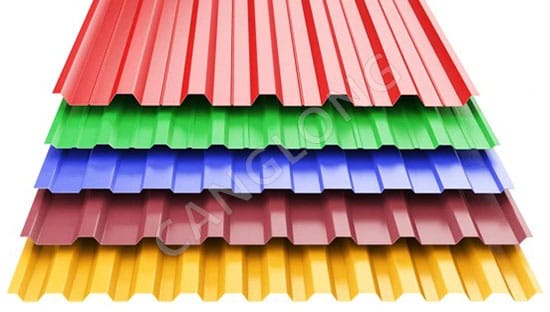

Color Steel Plate
- Coverage Width: 750/850/900/1000mm
- Sheet Thickness: 0.3mm to 0.8mm
- Color of Steel Plate: Blue, White, Gray, Off white, Brick red or Customized
- Substrate: Carbon structural steel rolled plate/Stainless steel/Aluminum
- Metallic Coating: Galvanized sheet/Alu-zinc sheet/Alu-zinc-magnesium sheet
- Surface: Wood grain/Camouflage/Matte/Orange peel/Pearlescent
- Coating: PE/SMP/HDP/PVDF
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
Color steel plate is pre-coated steel sheets that are widely used in construction, manufacturing, and various industrial applications. Their durability, aesthetic appeal, and versatility make them a popular choice for a variety of projects.
Color coated steel plates are a versatile and practical choice for a wide range of applications in construction and manufacturing. Their combination of aesthetic appeal, durability, and cost-effectiveness makes them an attractive option for architects, builders, and homeowners alike. As technology advances, color steel plates will continue to evolve, offering even more innovative solutions for modern design and construction needs.
Key Characteristics
1. Material Composition: Color steel plate is typically made from a base steel sheet that is coated with a layer of zinc for corrosion resistance, followed by a layer of paint or polymer for color and additional protection.
2. Surface Finish: The coating can be applied in various finishes, including matte, gloss, and textured, allowing for a wide range of aesthetic options.
3. Thickness Options: Available in various thicknesses, color steel sheets can be tailored to meet specific structural and design requirements.
4. Color Variety: These steel plates come in a wide array of colors, making them suitable for different architectural styles and preferences.
| Specification | Thickness | 0.3mm-0.8mm |
| Width | 750mm-1000mm | |
| Zinc coating | 40g/m2-600g/m2 | |
| Length | 1800-4000mm | |
| Painting | Top paint: 15-25um, Back paint:5-7um | |
| Color | Bright red, Sea blue and White grey, or according to the Ral Number | |
| Place of Origin | Henan, China (Mainland) | |
| Coil Weight | 2-8 Tons | |
| Standard | ASTM A653, JIS G3302, DX51D, SGCC | |
| Coating Type | Galvanized, Galvalume, Prepainted coating(PE, SMP, HDP, PVDF) | |
| Surface Treatment | Regular spangle, chromated, unoiled, smooth | |
| Application | Exterior and interior wall, Roofs,and Soffits | |
| Package | Seaworthy export package / depends on customer’s requests | |
| MOQ | 25 tons or one container | |
Applications of color steel plate
- Building Facades: Commonly used in commercial and industrial buildings for exterior cladding, providing both protection and aesthetic value.
- Roofing: Ideal for roofing applications due to their lightweight nature and resistance to weathering.
- Interior Paneling: Used for interior walls and partitions, offering a modern look with easy maintenance.
- Furniture and Fixtures: Employed in the manufacturing of furniture, shelving, and other fixtures due to their durability and design flexibility.
- Agricultural Buildings: Frequently used in barns and storage facilities because of their resistance to moisture and ease of cleaning.
Advantages of color steel plate
- Corrosion Resistance: The zinc coating provides excellent protection against rust and corrosion, extending the lifespan of the steel sheet.
- Aesthetic Appeal: The variety of colors and finishes allows for creative design possibilities, enhancing the visual appeal of buildings and structures.
- Lightweight: Compared to traditional materials, color coated steel plates are lightweight, making them easier to handle and install.
- Energy Efficiency: Some color coatings are designed to reflect sunlight, helping to reduce heat absorption and improve energy efficiency in buildings.
- Cost-Effectiveness: Color steel plate offer a cost-effective solution for both construction and maintenance, with lower long-term costs compared to other materials.
Maintenance
While color steel plates are designed for durability, regular maintenance is essential to ensure their longevity:
- Cleaning: Periodic cleaning with mild detergents and water can help remove dirt and prevent buildup that may lead to corrosion.
- Inspection: Regular inspections for scratches, dents, or other damage should be conducted to address any issues promptly.
- Repainting: If the color starts to fade or the coating wears off, repainting with compatible paint can restore the protective layer.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
-
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
-
Packing: Per customer's requirements or per product sizes, full protection packing.
-
Shipping: Per customer's requirements or per container sizes.
-
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
-
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
