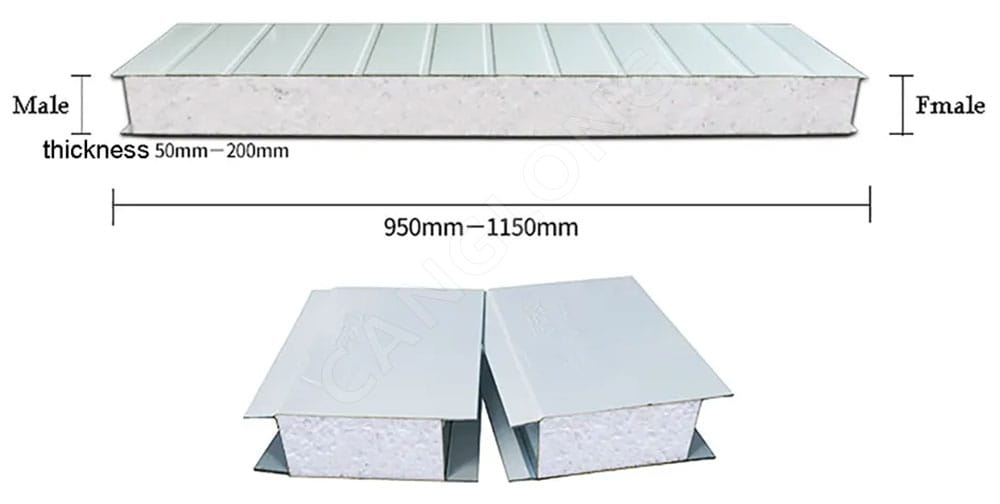

EPS Coolroom Panels
- Effective Width: 950/1150mm
- Metal Sheet Thickness: 0.2mm to 0.8mm
- Core Material: Polystyrene (EPS)
- Core Thickness: 50/75/100/150/200mm
- Coating: PE/HDP/PVDF/SMF
- Plating: Hot-galvanize/Aluminium/Stainless
- Color of Steel Plate: White/Offwhite/Blue or Customized
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
EPS coolroom panels, also known as expandable polystyrene cold storage board, is a cold storage construction board that uses expandable polystyrene (EPS) as the core insulation material. EPS， Also known as polystyrene panel or foam board, it is a kind of lightweight, thermal insulation, moisture-proof building insulation material. It is made of polystyrene particles through processes such as foaming and molding, and is widely used in cold storage construction due to its excellent insulation performance.
The main characteristics and advantages of eps coolroom panels
- Excellent insulation performance: EPS coolroom panels have extremely low thermal conductivity, which can effectively isolate heat transfer inside and outside the cold storage, ensuring stable temperature inside the cold storage. This excellent insulation performance helps reduce the energy consumption of refrigeration equipment and lower operating costs.
- Lightweight and High Strength: EPS cold storage panels are lightweight, easy to transport and install, and have high compressive strength to withstand certain loads, ensuring the stability and safety of the cold storage structure.
- Moisture and Waterproof: EPS material itself has certain moisture resistance properties, which can effectively prevent high humidity inside the cold storage and protect the quality of stored items.
- Convenient construction: EPS cold room panels adopt modular design, which can be cut and spliced according to the actual size of the cold storage. The construction process is simple and fast, reducing the difficulty and cost of construction.
- Environmental protection and energy conservation: EPS material can be recycled and reused, meeting environmental protection requirements. Meanwhile, due to its excellent insulation performance, it helps reduce energy consumption and achieve the goal of energy conservation and emission reduction.
| Name | Wall Panel | Roof Panel | |||||||
| Effective width(mm) | 950/1150 | 950 | |||||||
| Sheet thickness(mm) | 0.2mm to 0.8mm | 0.2mm to 0.8mm | |||||||
| Sheet color | Customized | Customized | |||||||
| Core thickness(mm) | 50 | 75 | 100 | 150 | 200 | 50 | 75 | 100 | 200 |
| Mass (kg/㎡） | 9 | 9.37 | 9.74 | 10.47 | 11.21 | 9.83 | 10.19 | 10.56 | 11.3 |
| R-value (m2.K/W) | 1.22 | 1.82 | 2.43 | 3.66 | 4.88 | 1.22 | 1.82 | 2.43 | 3.66 |
However, it is worth noting that although EPS cold storage panels have many advantages, their performance may be affected in certain special environments, such as high temperature, high humidity, or environments with corrosive substances. Therefore, when selecting and using EPS coolroom panels, it is necessary to comprehensively consider the specific cold storage construction needs and usage environment.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
