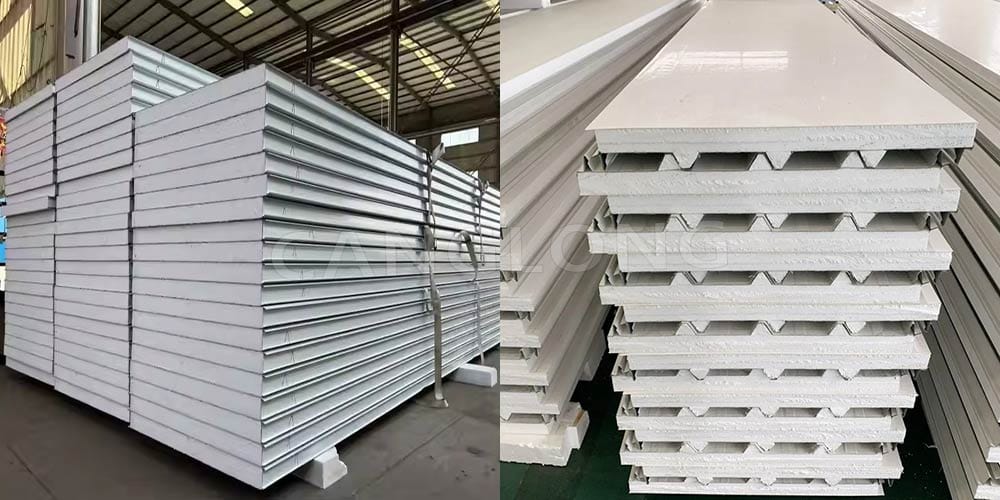

EPS Sandwich Panel
- Effective Width: 950/1150mm
- Metal Sheet Thickness: 0.2mm to 0.8mm
- Coating and Plating: PE/HDP/PVDF/SMF/Hot-galvanize/Aluminium/Stainless
- Color of Steel Plate: White/Offwhite/Blue or Customized
- Core Material: Polystyrene (EPS)
- Core Thickness: 50/75/100/150/200mm
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
EPS sandwich panel, also known as polystyrene sandwich panel, is a board composed of two layers of inner and outer metal sheets and a polystyrene foam sandwich layer in the middle. The inner and outer layers are mostly glass fiber reinforced plastic boards, but some are made of other materials such as color steel plates, while the sandwich layer is specially treated polystyrene foam.
The production process of EPS sandwich panel mainly includes the steps of pre-foaming, aging and board forming of EPS particles. EPS particles are expanded by high-temperature steam heating, and then aging treatment is performed to enhance their elasticity. Finally, the particles are squeezed and fused together to form a board in the molding machine through processes such as steam heating and vacuum cooling.
| Name | Wall Panel | Roof Panel | |||||||
| Effective width(mm) | 950/1150 | 950 | |||||||
| Sheet thickness(mm) | 0.2mm to 0.8mm | 0.2mm to 0.8mm | |||||||
| Sheet color | Customized | Customized | |||||||
| Core thickness(mm) | 50 | 75 | 100 | 150 | 200 | 50 | 75 | 100 | 200 |
| Mass (kg/㎡） | 9 | 9.37 | 9.74 | 10.47 | 11.21 | 9.83 | 10.19 | 10.56 | 11.3 |
| R-value (m2.K/W) | 1.22 | 1.82 | 2.43 | 3.66 | 4.88 | 1.22 | 1.82 | 2.43 | 3.66 |
Product Features
- Thermal insulation: Polystyrene is a good thermal insulation material with low thermal conductivity, which can effectively prevent heat transfer, making EPS sandwich panels have good thermal insulation effect.
- Lightweight and high strength: EPS sandwich board is relatively light, but its strength and durability are relatively high. It can withstand a certain load and is suitable for various building structures.
- Corrosion resistance: The surface of the fiberglass plate has a layer of excellent gel coat, which has good chemical stability to the atmosphere, water and general concentrations of acid, alkali, salt and other media, making the EPS panel has excellent corrosion resistance.
- Good processing performance: EPS sandwich panel can be cut, spliced and processed as needed to adapt to different building structures and design requirements.
- Economical price: The cost of polystyrene materials is relatively low, so the price of polystyrene sandwich panel is relatively affordable and has a high cost performance.
Polystyrene Insulation Sandwich Wall Panel – Span Table
| Non-Cyclonic Reqion A&B | Cyclonic Reqion A&B | ||
| Wind Speed (km/h) | Span (mm) | Wind Spend (km/h) | Span (mm) |
| 118.8 | 5400 | 147.6 | 3600 |
| 147.6 | 4200 | 180 | 3000 |
| 180 | 3600 | ||
Polystyrene Insulation Sandwich Roof Panel – Span Table
| Thickness (mm) | Singel span(mm) | Multi-span(mm) | ||||||||||||
| 1500 | 2700 | 3900 | 5100 | 6300 | 7500 | 8700 | 1500 | 2700 | 3900 | 5100 | 6300 | 7500 | 8700 | |
| 50 | 5.16 | 2.35 | 1.28 | – | – | – | – | 4.15 | 2.07 | 1.17 | – | – | – | – |
| 75 | 7.70 | 3.74 | 2.00 | 1.21 | – | – | – | 5.9 | 2.91 | 1.72 | 1.11 | – | – | – |
| 100 | 9.41 | 4.63 | 2.55 | 1.53 | 1.04 | 0.76 | – | 7.61 | 4 | 2.41 | 1.58 | 1.1 | – | – |
| 125 | 10.98 | 5.55 | 3.11 | 1.86 | 1.25 | 0.92 | – | 7.74 | 4.25 | 2.95 | 1.98 | 1.4 | 1.03 | – |
| 150 | 13.26 | 6.78 | 3.67 | 2.19 | 1.47 | 1.07 | 0.82 | 7.74 | 4.35 | 3.04 | 2.35 | 1.77 | 1.31 | – |
Application range
EPS sandwich panels are widely used in various fields due to their excellent performance, mainly including:
- Industrial plants: EPS sandwich panels have good thermal insulation and mechanical strength, and are suitable for walls, roofs and partitions of various industrial plants.
- Cold chain logistics: Its excellent thermal insulation and sealing properties make it an ideal choice for cold chain logistics warehouses.
- Temporary buildings: The characteristics of light weight, high strength and easy processing make EPS panel widely used in temporary buildings, such as mobile houses and simple houses.
- Other fields: EPS panels are also commonly used in cleanrooms, high- and medium-end modular houses, container houses, and exterior wall decoration of buildings that require insulation, waterproofing, and aesthetics.
Matters needing attention
When using EPS sandwich panels, the following points should be noted:
- Fire resistance: Although EPS sandwich board has certain flame retardant properties, necessary fire prevention measures must still be taken in the event of a fire to prevent the spread of the fire.
- Installation quality: The installation quality of EPS panel directly affects their use effect, so they should be installed in strict accordance with relevant specifications to ensure that the splicing between the panels is tight and firmly fixed.
- Maintenance: Regular cleaning and maintenance of polystyrene sandwich panels can extend their service life and maintain their good performance.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
