Expanded Polystyrene Wall Panel

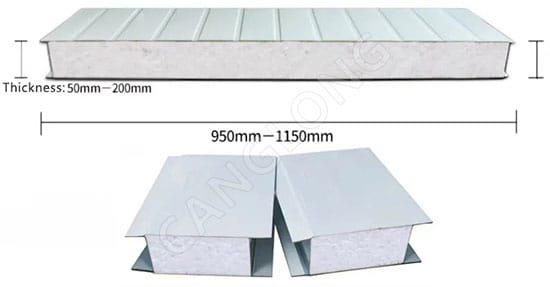

- Effective Width: 950/1150mm
- Metal Sheet Thickness: 0.2mm to 0.8mm
- Coating: PE/HDP/PVDF/SMF
- Plating: Hot-galvanize/Aluminium/Stainless
- Color of Steel Plate: White/Offwhite/Blue or Customized
- Core Material: Polystyrene (EPS)
- Core Thickness: 50/75/100/150/200mm
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
Expanded polystyrene wall panel is lightweight, versatile building materials widely used in construction for their excellent insulation properties and ease of installation. These expanded polystyrene (EPS) wall panels have gained popularity in both residential and commercial applications due to their energy efficiency and cost-effectiveness.
Expanded polystyrene wall panels offer a lightweight, energy-efficient solution for modern construction needs. Their excellent insulation properties, moisture resistance, and cost-effectiveness make them a preferred choice for a variety of applications. By understanding the features and benefits of EPS wall panels, builders and architects can effectively utilize them to enhance the energy efficiency and sustainability of their projects, contributing to environmentally friendly building practices.
Features of expanded polystyrene wall panel
1. Lightweight Construction:
EPS wall panels are significantly lighter than traditional building materials, making them easier to handle and transport, which can reduce labor costs during installation.
2. Excellent Thermal Insulation:
With a low thermal conductivity (approximately 0.030 to 0.040 W/m·K), EPS panels provide effective insulation, helping to maintain comfortable indoor temperatures and reduce energy consumption.
3. Moisture Resistance:
Expanded polystyrene is resistant to moisture absorption, which helps prevent mold growth and deterioration in humid environments.
4. Cost-Effective:
The combination of lower material costs and reduced energy bills makes expanded polystyrene panels a cost-effective choice for construction projects.
5. Sound Insulation:
The density of expanded polystyrene provides some soundproofing qualities, making these panels suitable for environments where noise reduction is desired.
| Non-Cyclonic Reqion A&B | Cyclonic Reqion A&B | ||
| Wind Speed (km/h) | Span (mm) | Wind Spend (km/h) | Span (mm) |
| 118.8 | 5400 | 147.6 | 3600 |
| 147.6 | 4200 | 180 | 3000 |
| 180 | 3600 | ||
Advantages of expanded polystyrene wall panel
1. Energy Efficiency:
Expanded polystyrene wall panels contribute to significant energy savings by reducing the need for heating and cooling, leading to lower utility bills.
2. Environmental Sustainability:
Expanded polystyrene is made from recyclable materials and can be recycled at the end of its life cycle, contributing to sustainable building practices.
3. Versatility:
Available in various thicknesses and sizes, expanded polystyrene panels can be customized to meet specific project requirements, including different finishes.
4. Quick Installation:
The lightweight nature of expanded polystyrene sandwich panels allows for fast and efficient installation, minimizing construction time.
Expanded Polystyrene Sandwich Wall Panel – Span Table
| Name | Wall Panel | ||||
| Effective width(mm) | 950/1150 | ||||
| Sheet thickness(mm) | 0.2mm to 0.8mm | ||||
| Sheet color | Customized | ||||
| Core thickness(mm) | 50 | 75 | 100 | 150 | 200 |
| Mass (kg/㎡） | 9 | 9.37 | 9.74 | 10.47 | 11.21 |
| R-value (m2.K/W) | 1.22 | 1.82 | 2.43 | 3.66 | 4.88 |
Applications of expanded polystyrene wall panel
1. Residential Construction:
Used in the construction of homes, particularly in energy-efficient designs and passive house projects.
2. Commercial Buildings:
Suitable for office buildings, retail spaces, and warehouses where insulation and energy efficiency are critical.
3. Cold Storage Facilities:
Effective for refrigerated warehouses and food processing plants, maintaining the required temperature for perishable goods.
4. Modular and Prefabricated Buildings:
Commonly used in modular construction, where panels can be pre-manufactured and assembled on-site for speed and efficiency.
5. Insulated Concrete Forms (ICFs):
Expanded polystyrene wall panel can be integrated into ICF systems for enhanced thermal performance and energy efficiency.
Installation Considerations
1. Site Preparation:
Ensure that the wall structure is adequately prepared to support the panels and that the foundation is level.
2. Handling and Storage:
Handle expanded polystyrene panels with care to avoid damage. Store them in a dry location to protect against moisture and physical impacts.

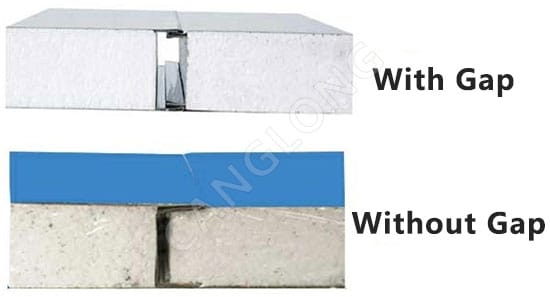

3. Sealing Joints:
Properly seal the joints between panels to prevent air leaks and ensure optimal insulation performance. Use compatible sealants designed for EPS.
4. Professional Installation:
It is advisable to engage experienced professionals for installation to ensure that panels are correctly fitted and sealed, maximizing their performance.
5. Compliance with Building Codes:
Ensure that installation meets local building codes and regulations regarding insulation and fire safety.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.

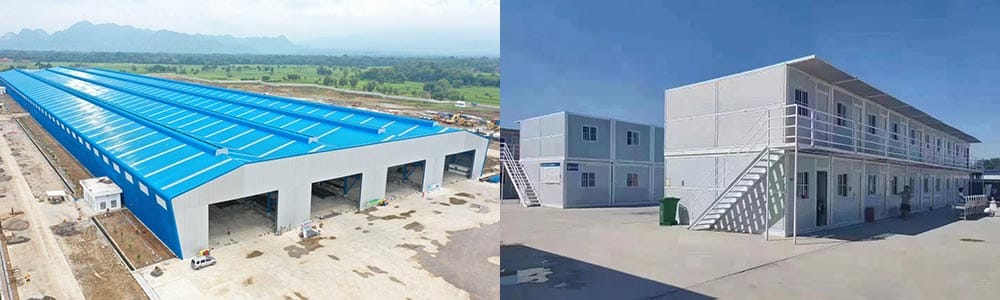

Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
