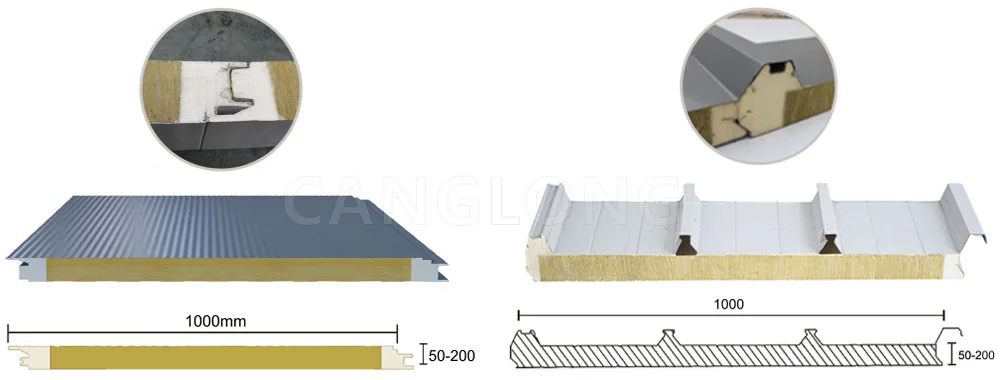

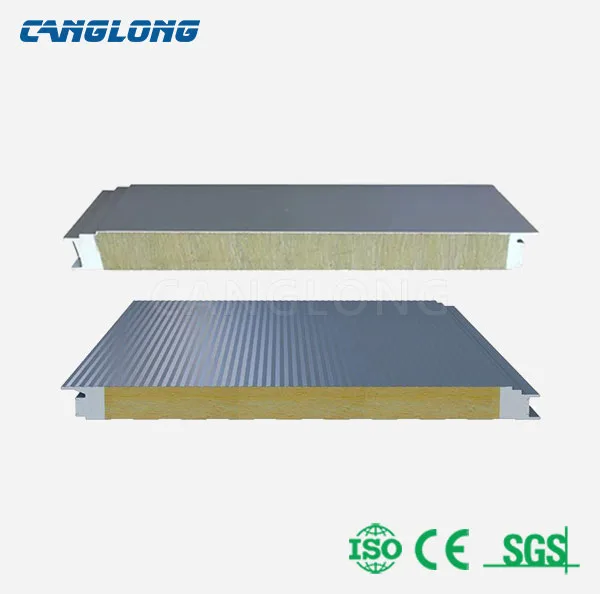

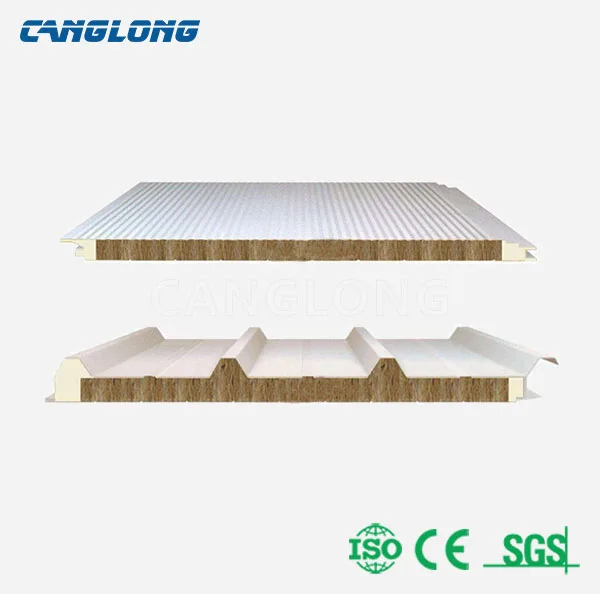

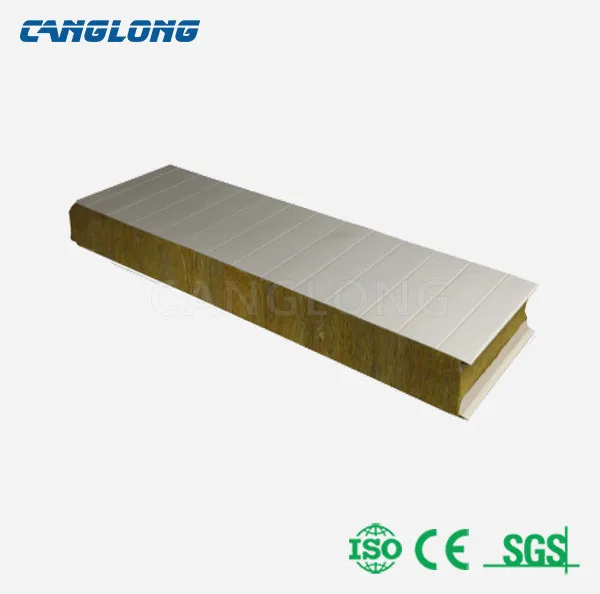

Fire Rated Mineral Wool Panel With PU/PIR Sealing Side
- Effective Width: 1000mm/1m

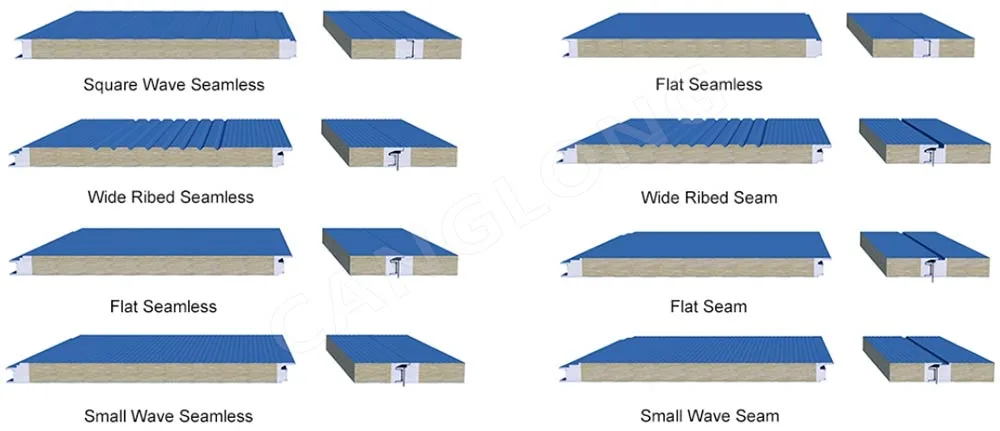

- Profile Types: Micro-wave/Square-wave/Embossed/V8/Plain
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Insulation Material: Mineral wool + PU/PIR
- Core Thickness: 50/75/100/150/200mm
- Coating: PE/SMF/HDP/PVDF
- Plating: Hot-dip galvanizing/Aluminium/Stainless steel
- Sound Insulation: ≥30db
- Flammability Rating: A
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
Fire-rated mineral wool panels with polyurethane (PU) or polyisocyanurate (PIR) sealing sides are advanced building materials designed to provide superior fire resistance, thermal insulation, and energy efficiency. The fire rated mineral wool panel with PU/PIR sealing side is increasingly used in commercial and industrial applications where fire safety is a critical concern.
Fire-rated mineral wool panel with PU/PIR sealing side is an excellent choice for enhancing fire safety and energy efficiency in various construction applications. Their superior fire resistance, thermal insulation, and durability make them ideal for industrial, commercial, and public buildings. As building codes and safety regulations continue to evolve, the demand for such advanced materials will grow, making them an integral part of modern construction practices. By investing in high-quality fire-rated mineral wool panels, builders and property owners can ensure compliance with safety standards while achieving energy efficiency and sustainability goals.
Features of fire rated mineral wool panel
1. Fire Resistance
Mineral wool panels are inherently non-combustible, providing excellent fire resistance. They can withstand high temperatures, helping to prevent the spread of flames.
2. Thermal Insulation
These panels offer exceptional thermal insulation properties, reducing heat transfer and improving energy efficiency in buildings.
3. PU/PIR Sealing

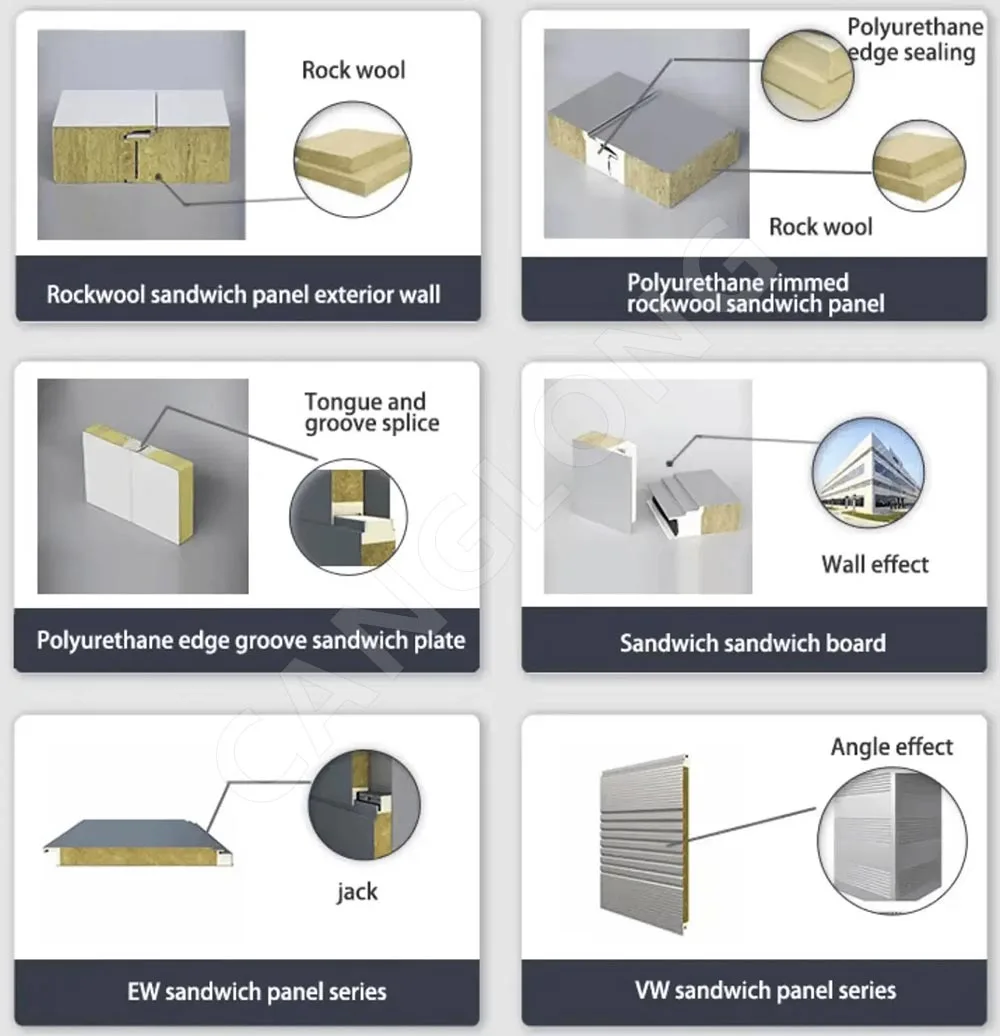

The addition of PU or PIR sealing on the edges enhances the overall insulation performance and ensures airtightness, minimizing thermal bridging and air leakage.
4. Sound Insulation
Mineral wool also provides excellent soundproofing qualities, making these panels suitable for applications where noise reduction is essential.
5. Durability
These panels are resistant to moisture, mold, and pests, ensuring long-term durability and performance in various environments.
Fire Rated Mineral Wool Wall Panel With PU/PIR Sealing Side Parameters
| Panel Thickness | Heat Conductivity (W/m2.K) | Weight(kg) | Load capacity (P=KN/M2) | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 0.75 | 15.53 | L(m) | 3.66 | 3.13 | 2.75 | 2.46 | 2.12 |
| 75mm | 0.53 | 18.37 | L(m) | 4.90 | 4.22 | 3.73 | 3.35 | 2.91 |
| 100mm | 0.41 | 21.21 | L(m) | 5.99 | 5.17 | 4.58 | 4.12 | 3.59 |
| 150mm | 0.31 | 26.88 | L(m) | 7.82 | 6.75 | 5.98 | 5.37 | 4.68 |
Benefits of fire-rated mineral wool panel
1. Enhanced Safety
The fire-rated properties of these panels provide peace of mind in commercial and industrial settings, meeting stringent fire safety regulations and standards.
2. Energy Efficiency
With high thermal insulation values, these panels help reduce energy consumption for heating and cooling, leading to lower operational costs.
3. Versatility
Suitable for a variety of applications, including walls, roofs, and partitions in industrial buildings, warehouses, and commercial facilities.
4. Sustainability
Many mineral wool products are made from recycled materials, contributing to sustainable building practices and LEED certification.
5. Easy Installation
The lightweight nature of these panels allows for quick and easy installation, reducing labor costs and construction time.

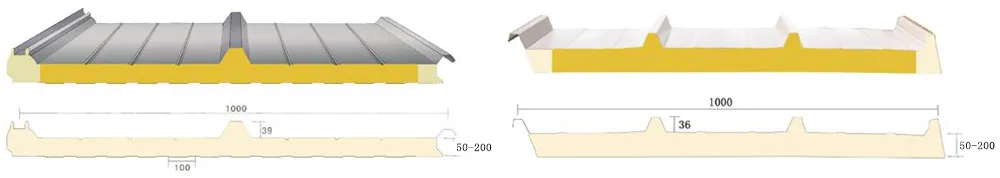

Fire Rated Mineral Wool Roof Panel With PU/PIR Sealing Side Parameters
| Panel Thickness | Heat Conductivity (W/m2.K) | Weight(kg) | Load capacity (P=KN/M2) | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 0.75 | 15.75 | L(m) | 3.78 | 3.13 | 3.31 | 2.98 | 2.41 |
| 75mm | 0.53 | 18.68 | L(m) | 4.83 | 4.21 | 4.21 | 3.76 | 3.01 |
| 100mm | 0.41 | 21.62 | L(m) | 5.77 | 5.02 | 5.02 | 4.47 | 3.55 |
| 150mm | 0.31 | 27.51 | L(m) | 7.53 | 6.54 | 6.54 | 5.82 | 4.61 |
Applications of fire rated mineral wool panel
1. Industrial Facilities
Used in manufacturing plants, warehouses, and processing facilities where fire safety is a priority.
2. Commercial Buildings
Ideal for office buildings, shopping centers, and hotels that require fire-rated wall and ceiling systems.
3. Cold Storage
Suitable for cold storage facilities where temperature control and fire resistance are crucial.
4. Public Buildings
Commonly used in schools, hospitals, and government buildings to ensure compliance with fire safety regulations.
5. Multi-Story Structures
Fire-rated mineral wool panels are essential in high-rise buildings, providing fire barriers and thermal insulation.
Considerations When Choosing Fire Rated Mineral Wool Panels
- Fire Rating Certification: Ensure the panels meet relevant fire safety standards and certifications for your specific application.
- Insulation Performance: Evaluate the thermal resistance (R-value) to ensure it meets the energy efficiency requirements of your building.
- Manufacturer Reputation: Select panels from reputable manufacturers known for quality and reliability, ensuring long-lasting performance.
- Installation Guidelines: Follow manufacturer installation guidelines carefully to maintain fire safety and insulation performance.
- Environmental Impact: Consider the sustainability of the materials used and opt for eco-friendly options wherever possible.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels

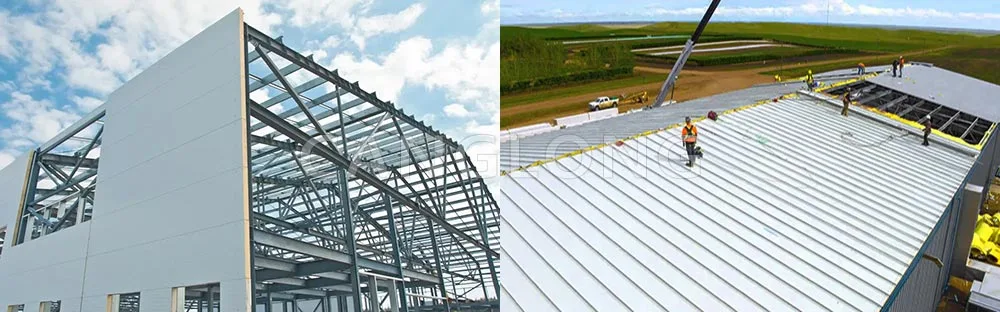

Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
