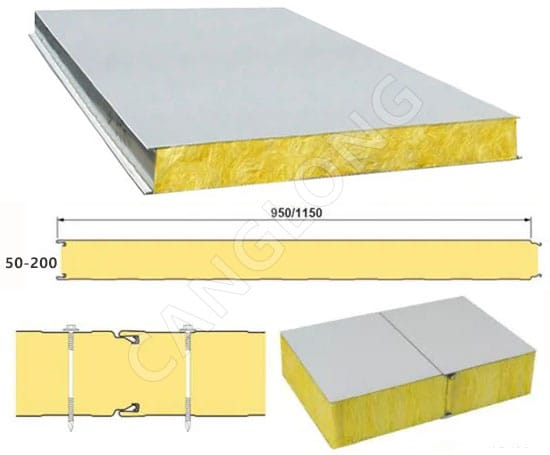

Glass Wool Exterior Wall Sandwich Panel
- Effective Width: 950/1150mm
- Core Material Density: 80-120kg/m³
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Color of Steel Plate: White/Offwhite/Blue (Ral Color)
- Core Thickness: 50/75/100/150/200mm
- Coating: PE/HDP/PVDF/SMF
- Plating: Hot-galvanize/Aluminium/Stainless
- Sound Insulation: ≥30db
- Flammability Rating: A
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
Glass wool exterior wall sandwich panel is an innovative building material designed to provide excellent thermal insulation, soundproofing, and fire resistance. These glasswool sandwich panels are widely used in modern construction for various applications, particularly in commercial and industrial buildings.
Glass wool exterior wall sandwich panels provide a high-performance solution for thermal insulation, soundproofing, and fire safety in various applications. Their composite structure, energy efficiency, and versatility make them a preferred choice in modern construction. By understanding the features and benefits of these panels, builders and architects can effectively utilize them to enhance the insulation and sustainability of their projects, contributing to more comfortable and energy-efficient buildings.
Features of glass wool exterior wall sandwich panel
1. Composite Structure:
Glass wool sandwich panels consist of a core made from glass wool insulation sandwiched between two outer layers, often made of metal (such as steel or aluminum) or other materials. This structure enhances both insulation performance and durability.
2. Thermal Insulation:
The glass wool core offers low thermal conductivity, typically around 0.035 to 0.045 W/m·K, ensuring effective thermal insulation that helps maintain comfortable indoor temperatures and reduces energy costs.
3. Fire Resistance:
Glass wool is non-combustible and can withstand high temperatures, providing excellent fire-resistant properties and enhancing the overall safety of the building.
4. Sound Insulation:
The dense structure of glass wool provides effective soundproofing, making these panels suitable for environments where noise reduction is essential.
5. Moisture Resistance:
Glass wool does not absorb moisture, helping to prevent mold growth and maintaining the integrity of the insulation over time.
Glass Wool Sandwich Wall Panel Parameters
| Panel Thickness | Heat Conductivity (W/m2.K) | Weight(kg) | Load capacity (P=KN/M2) | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 0.75 | 15.53 | L(m) | 3.66 | 3.13 | 2.75 | 2.46 | 2.12 |
| 75mm | 0.53 | 18.37 | L(m) | 4.90 | 4.22 | 3.73 | 3.35 | 2.91 |
| 100mm | 0.41 | 21.21 | L(m) | 5.99 | 5.17 | 4.58 | 4.12 | 3.59 |
| 150mm | 0.31 | 26.88 | L(m) | 7.82 | 6.75 | 5.98 | 5.37 | 4.68 |
Benefits of glass wool exterior wall sandwich panel
1. Energy Efficiency:
The superior insulation properties of glass wool panels contribute to significant energy savings by reducing the need for heating and cooling, resulting in lower utility bills.
2. Sustainability:
Glass wool is made from recycled materials, making it an eco-friendly choice for construction. Its long lifespan also contributes to sustainable building practices.
3. Versatility:
These panels can be customized in terms of size, thickness, and finishes to meet specific design requirements and building codes.
4. Quick Installation:
Prefabricated sandwich panels allow for rapid installation, reducing overall construction time and labor costs.
Applications of glass wool exterior wall sandwich panel
1. Commercial Buildings: Used in office buildings, shopping malls, and retail spaces to improve energy efficiency and occupant comfort.
2. Industrial Facilities: Ideal for factories, warehouses, and manufacturing plants where thermal insulation, fire safety, and soundproofing are critical.
3. Cold Storage Facilities: Effective for refrigerated warehouses and food processing plants, maintaining specific temperature ranges for perishable goods.
4. Recreational Structures: Suitable for gyms, sports complexes, and community centers, providing both thermal comfort and noise control.
5. Residential Applications: Used in energy-efficient homes to enhance insulation and reduce energy consumption.
Installation Considerations
- Site Preparation: Ensure that the wall structure is adequately prepared to support the weight of the panels and that proper drainage is established to avoid water accumulation.
- Handling and Storage: Handle panels with care to prevent damage. Store them in a dry location to protect the insulation from moisture.
- Sealing and Jointing: Properly seal joints between panels to prevent air leaks and ensure optimal insulation performance. Use appropriate sealants compatible with glass wool and the outer materials.
- Professional Installation: It is advisable to engage experienced professionals for installation to ensure that panels are fitted correctly and to maximize their performance and lifespan.
- Compliance with Building Codes: Ensure that installation meets local building codes and regulations regarding insulation and fire safety.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
