Insulated Metal Panel
- Effective Width: 950/1000/1150mm
- Profile Types: Micro-wave/Square-wave/Embossed/V8/Plain
- Metal Sheet Thickness: 0.2mm to 0.8mm
- Color of Steel Plate: RAL color / Customized / Aluminum plate
- Core Thickness: 50/75/80/100/120/150/200mm
- Insulation Material: PU/PUR/PIR/EPS/Rock Wool
- Coating: PE/SMP/HDP/PVDF
- Plating: Hot-dip galvanizing/Hot-dip aluminium/Stainless steel
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details

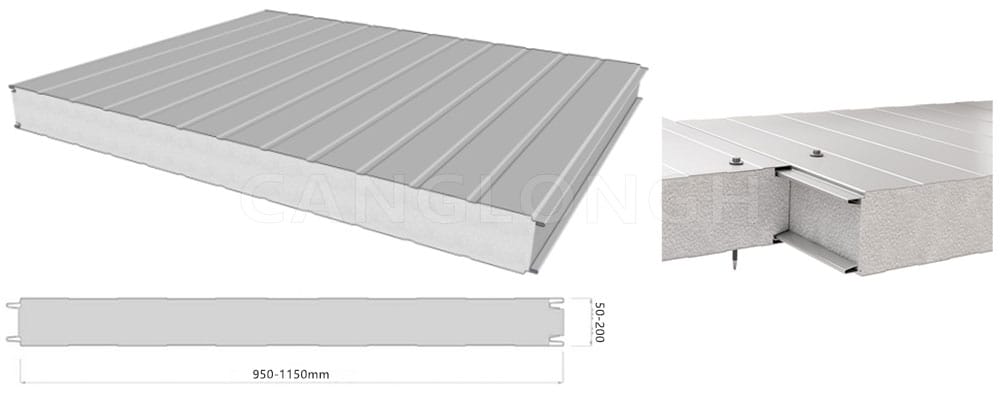

Insulated metal panel is a kind of exterior wall insulation decoration integrated plate, mainly composed of two layers of metal plates inside and outside and the sandwich layer in the middle.
- Outer metal plate: The main function is to protect the sandwich panel and bear the external force. The outer metal plate material generally uses color-coated steel plate, galvanized plate, etc. These materials have good corrosion resistance, impact resistance and decorative properties.
- Inner metal plate: The main function is to connect the outer metal plate and the sandwich layer to ensure the overall structural stability of the sandwich panel. The inner metal plate material is also commonly used for color-coated steel plate, galvanized plate, etc.
- Sandwich layer: It is the core part of the sandwich panel, and its materials generally include polystyrene, polyurethane, rock wool, etc. These materials have good thermal insulation, sound insulation, fire resistance and other properties, and are the key to the thermal insulation effect of the sandwich panel.
Characteristics of thermal insulated metal panel
- Thermal insulation: The thermal insulation sandwich panel has excellent thermal insulation performance, effectively reduces the temperature difference between indoor and outdoor, and saves energy.
- Waterproof and flame retardant: Its structural design and material selection make it have good waterproof and flame retardant properties, ensuring the safety of the building.
- Lightweight and earthquake-resistant: The insulation panel is light in weight and small in size, with a weight of only about 3.6 kg per square meter. It saves time and effort to carry and install, and has certain earthquake resistance.
- Convenient construction: The assembly method of the board is simple and practical, not restricted by seasonal environment, and it is very safe and convenient to install and use.
- Sound insulation and noise reduction: The core material in the middle is a heat insulation and sound insulation layer composed of high-density polyurethane foam, which has good sound insulation effect.
- Green and environmental protection: The insulated metal panel hardly causes environmental pollution during production and use, and meets the requirements of sustainable development.
- Beautiful and durable: The high-quality color embossed metal plate treated with a special layer has a beautiful appearance and good durability.
| Specification and Technical Information (insulation sandwich panel) | ||
| Core material | Upper and lower layer Middle | Color steel sheet PU/EPS/ROCK WOOL |
| Core density | 35-45kg/m3 | |
| Cell closed percentage | more than 92%, elimates the possibbility of leakge | |
| Thermal conductivity | less than 0.025w/m.k | |
| Metal Sheet | Prepainted Galvanized/Galvalume/Aluminum sheet | |
| Thickness | 0.4-0.8mm | |
| Top coating | 18-25um | |
| Length | less than 11.8m | |
| Effect width | 950mm/1000mm/1150mm | |
| Wall panel thickness | 30/50/75/80/100/120/150/200mm | |
| Anti-fire | Grade B1 of GB8624, safe. | |
| Use | various roofs and walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums etc. | |
| MOQ | 20’GP | |
Application of insulation metal panel
Insulation metal plate is widely used in building exterior walls, roofs, partitions and other parts, as well as newly built brick-concrete structures, frame structures, steel structures, light-weight houses and other types of buildings. At the same time, it is also suitable for decorative energy-saving transformation and indoor and outdoor decoration of existing buildings.
| Patethickness (mm) | Hiat transfer coefficient k/m2hic | Alerage souna insulation factou r(db) | Plate weight kg/m | LOADP=KN/M2 P=0.5 1.0 1.5 2.0 2.5 |
| 50 | 0.57 | 20.0 | 11.72 | L=3.5 2.6 1.8 1.3 1.1 |
| 70 | 0.38 | 21.5 | 12.12 | L=4.2 3.2 2.6 2.0 1.7 |
| 100 | 0.28 | 23.0 | 12.53 | L=4.8 3.6 2.8 2.5 2.3 |
| 150 | 0.19 | 24.5 | 13.33 | L=6.0 4.5 3.6 3.0 2.8 |
| 200 | 0.14 | 25.5 | 14.13 | L=7.0 5.3 4.2 3.5 3.0 |
Advantages of Insulated Metal Panels
- High Strength: Insulated metal panels have good strength and rigidity, can withstand external pressure and load, and maintain structural stability.
- Fire resistance: Metal insulation panels can withstand high temperatures, have good fire resistance, and can be used for a long time in high temperature environments.
- Corrosion resistance: After reasonable anti-corrosion treatment, the insulation metal panels can be used in corrosive media such as acids, alkalis, and salts, and maintain a long service life.
- Thermal conductivity: The insulation sandwich panels have a low thermal conductivity coefficient, which can effectively reduce the conduction of heat and improve the insulation effect.
- Energy saving: The insulation panels can effectively isolate the temperature difference between the outdoors and indoors, prevent the waste of heat or cold, and improve energy efficiency.
- Low maintenance cost: The maintenance cost of the insulated metal panel is low, and no regular maintenance and repairs are required, which can reduce maintenance and workload.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
