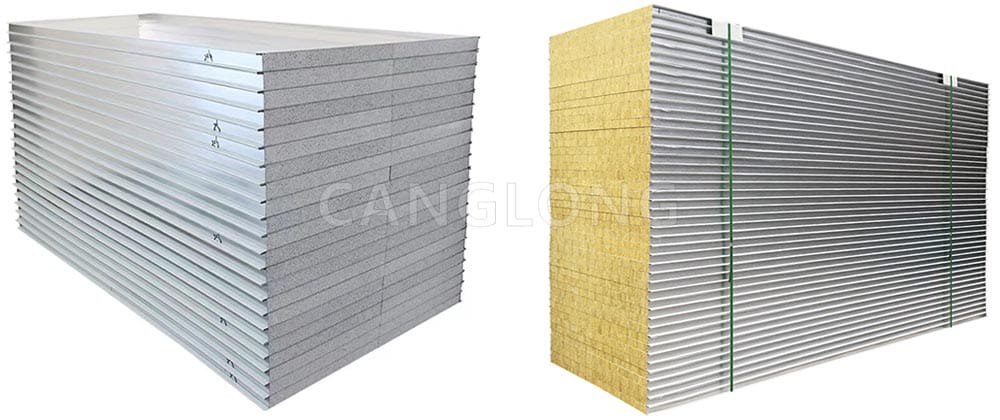

Mechanism Cleanroom Panel
- Effective Width: 950-1150mm
- Core Material Density: 38 to 45kg/m³
- Metal Sheet Thickness: 0.2mm to 0.8mm
- Core Material: EPS/PIR/PUR/PU/Rock wool
- Core Thickness: 50/75/100/120/150mm
- Thermal Conductivity: <0.022W/(m·k)
- Water Absorption: <0.30kg/m³
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
Mechanism cleanroom panel is essential components in controlled environments, such as laboratories, manufacturing facilities, and pharmaceutical plants. These panels help maintain the stringent cleanliness and environmental conditions required for sensitive processes. Understanding their structure, functionality, and applications is crucial for effective clean room design.
Mechanism clean room panels play a vital role in maintaining controlled environments across various industries. Their design, materials, and functionality contribute significantly to contamination control, insulation, and overall clean room performance. Understanding these panels’ characteristics and applications is essential for any organization seeking to implement or maintain a cleanroom facility. Proper installation and ongoing maintenance will ensure that these panels perform effectively, safeguarding the integrity of sensitive processes and products.

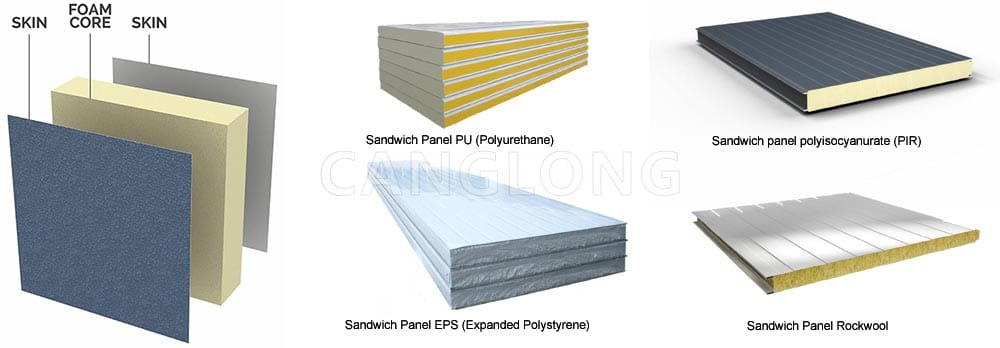

Structure of mechanism cleanroom panel
Mechanism cleanroom panels typically consist of several key components:
- Core Material: The core is usually made from materials such as polystyrene, polyurethane, or mineral wool. This core provides insulation and structural integrity while contributing to the panel’s lightweight properties.
- Facing Material: The surfaces of clean room panels are often covered with materials like stainless steel, aluminum, or vinyl. These materials are chosen for their durability, ease of cleaning, and ability to resist contamination.
- Edge Design: Panels may feature various edge designs, such as tongue-and-groove or flush edges, to ensure a tight seal between adjacent panels, minimizing the risk of airborne contaminants.
| Thickness | 50/75/100/120/150(mm) |
| Effective width | 950, 980, 1150(mm) |
| Length | According to customer’ s request, less than 11.8m |
| Materials | Polystyrene foam board, Steel sheet |
| Structure | Upper and lower layer: Color steel sheet, Aluminum |
| Middle: EPS/PU/XPS/TPS/Rockwool/Glass Wool | |
| EPS density | 10/12/14/15/16/18/20 kg/m³ |
| Conventional color | White, sea blue, red etc. |
| Lifetime | More than 60 years |
| Performance | Light weight, heat insulation, water resistant, green and environmental |
| Usage | Roof, Wall, Ceiling, Partition |
Functionality
Mechanism cleanroom panels serve several critical functions:
- Contamination Control: The smooth surfaces and sealed edges of cleanroom panels help prevent dust, bacteria, and other contaminants from entering the cleanroom environment.
- Thermal Insulation: Insulated panels help maintain stable temperatures within the cleanroom, which is essential for sensitive processes and materials.
- Sound Dampening: Clean room panels can also provide sound insulation, contributing to a quieter working environment.
- Fire Resistance: Many panels are designed to meet fire safety standards, providing additional protection in the event of a fire.
Types of mechanism cleanroom panel
There are several types of clean room panels, including:
- Wall Panels: Used to form the walls of the clean room, these panels create the primary barrier against contaminants.
- Ceiling Panels: These panels contribute to the cleanroom’s overall integrity and often incorporate lighting and air filtration systems.
- Floor Panels: Specialized flooring systems are designed to withstand foot traffic while providing a seamless, cleanable surface.
Applications of mechanism cleanroom panel
Mechanism clean room panels are utilized in various industries, including:
- Pharmaceuticals: Ensuring sterile conditions for drug production and packaging.
- Biotechnology: Protecting sensitive biological processes from contamination.
- Electronics: Maintaining a dust-free environment for semiconductor manufacturing.
- Food Processing: Ensuring sanitary conditions for food production and packaging.
Installation and Maintenance
Proper installation and maintenance of mechanism cleanroom panels are crucial for their performance:
- Installation: Panels should be installed by trained professionals to ensure airtight seals and structural integrity. Proper alignment and support are essential.
- Maintenance: Regular cleaning with approved disinfectants and inspections for damage or wear are necessary to maintain the effectiveness of the cleanroom environment.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
-
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
-
Packing: Per customer's requirements or per product sizes, full protection packing.
-
Shipping: Per customer's requirements or per container sizes.
-
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
-
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
