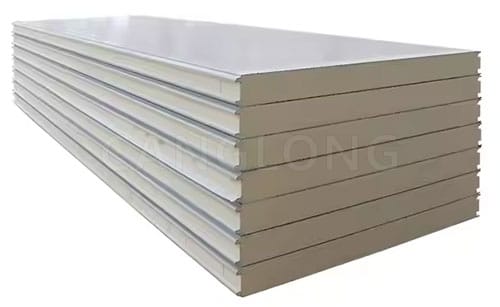

PIR Coolroom Panels
- Effective Width: 960/1150mm
- Core Material Density: 38 to 45kg/m³
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Core Material: PIR/PUR/PU
- Core Thickness: 100/120/150/200mm
- Thermal Conductivity: <0.022W/(m·k)
- Water Absorption: <0.30kg/m³
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
PIR coolroom panel is a sandwich board made of polyisocyanurate foam as the core material after a series of process treatment. Its structure usually consists of two parts: a panel and a core material. The panel can be made of metal, plastic, or other composite materials to provide strength and durability. The core material is PIR foam, which is responsible for providing thermal insulation performance. PIR coolroom panels have been widely used and recognized in fields such as cold chain, construction, and electricity due to their excellent fire resistance, non water absorption, high strength, and good insulation performance.
Characteristics of PIR coolroom panel
- Good fire resistance: PIR coolroom panels have undergone special flame retardant treatment, which is not easy to burn, will not drip, and will not produce toxic or harmful gases. Its flame retardant level can reach B1 flame retardant material level, which meets the requirements of cold storage design specifications.
- Non absorbent: The PIR cold room panel has a closed cell rate of over 90%, which can effectively prevent moisture infiltration and water absorption expansion, thereby protecting the insulation layer from damage.
- High strength: PIR cold storage panel has higher density than ordinary polyurethane foam, so it has higher strength and pressure resistance, and can withstand greater pressure and load.
- Good insulation performance: PIR coolroom panels have low thermal conductivity and excellent insulation performance, which can effectively maintain the low temperature environment inside the cold storage and reduce energy consumption.
Application of PIR coolroom panels
PIR cold storage panels are widely used in various occasions that require insulation and heat preservation, especially in cold chain fields such as refrigeration boxes, refrigerated warehouses, and freezers. In addition, it can also be used for insulation and heat preservation in the construction industry, such as roofs, walls, floors, as well as insulation and heat preservation of power equipment and sound insulation and heat insulation of cooling equipment.

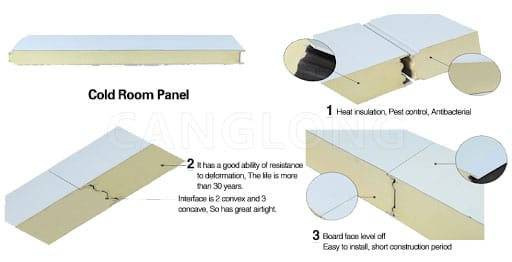

Product Name | Cold Room Panel |
Fire-proof level | B1 |
Exterior face texture | Square wave / Flat effect / Embossed / Water ripple |
Interior face texture | Square wave / Flat effect / Embossed |
Exterior /Interior face thickness | 0.3-0.8mm |
Core material thickness | 50/75/80/100/120/150 mm |
Effective width | 1000mm |
Spreading width | 1200mm(out); 1070mm(inner) |
Length of panel | No more than container length(11.8m) |
Joint style | Hidden joint/male and female joint |
Color of steel plate | White grey, silver gray, sea-blue, crimson and so on |
Painting | Polyester coating PE, SMP coating, HDP coating, fluorocarbon coating PVDF,ect. |
Advantages of PIR coolroom panel
- Energy saving and environmental protection: PIR coolroom panels have excellent insulation performance and are more energy-efficient than other materials at the same thickness. Meanwhile, it does not contain CFCs and is harmless to the ozone layer, making it an environmentally friendly material.
- Strong durability: After special anti-corrosion treatment, PIR cold storage panels are not easy to age, rot, mold, etc., and have a long service life.
- Easy installation: PIR cold room panels can be processed by cutting, bonding, welding, etc. as needed, making installation simple and convenient, saving time and costs.
- Strong adaptability: PIR coolroom panels have the characteristics of lightweight shock resistance and strong adaptability, and can adapt to various complex environments and conditions.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
