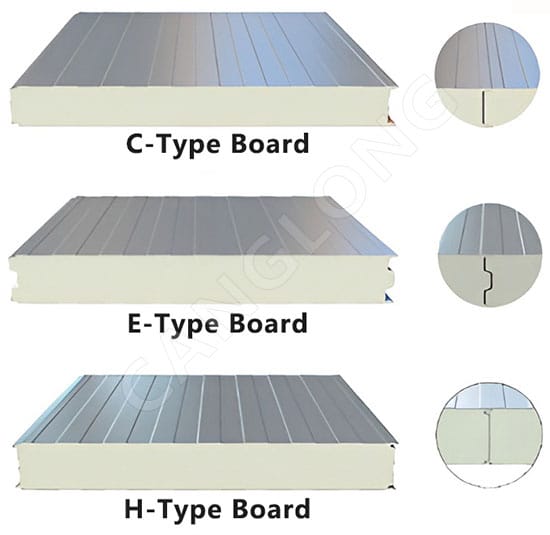

PU Foam Sandwich Panel
- Effective Width: 950/1000/1150mm
- Profile Types: Micro-wave/Square-wave/Embossed/V8/Plain
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Core Material Density: 40 to 45kg/m³
- Color of Steel Plate: RAL color /Aluminum plate
- Insulation Material: PU/PUR/PIR
- Core Thickness: 50/75/100/150/200mm
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
PU foam sandwich panel, also known as polyurethane sandwich panel and polyurethane composite panel, is a high-performance building panel. PU sandwich panel consists of two layers of metal plates (such as glass steel plate or color steel plate) inside and outside and a rigid polyurethane foam sandwich layer in the middle. These materials are tightly bonded together through advanced vacuum technology or high-pressure composite processes to form a cohesive structure.
Features of PU foam sandwich panel
1. Thermal insulation: rigid polyurethane foam has extremely low thermal conductivity, so PU foam sandwich panel has excellent thermal insulation performance.
2. Fire and moisture prevention: The surface material and insulation material of sandwich panels are non combustible and have been treated with special coatings to improve their fire resistance. At the same time, polyurethane foam itself also has certain moisture resistance.
3. Light weight and high strength: PU foam sandwich panel is light in weight, but has high strength and stiffness, and can withstand certain loads.
4. Beautiful and durable: the sandwich panel has high surface finish, bright colors, excellent light retention, and is not easy to change color, corrosion resistant, sun proof, and anti-aging.
5. Easy installation: Sandwich panels can be customized according to user needs, and installation is simple and fast, without the need for complex construction steps.
PU Foam Sandwich Wall Panel – Load distribution
| Panel Thickness | R-Value(m2.K/W) at 23℃ | Weight(kg) | Load capacity (P=KN/M2) | 0.50 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 2.24 | 10.06 | L(m) | 3.52 | 3.04 | 2.59 | 2.42 | 2.11 |
| 75mm | 3.30 | 11.06 | L(m) | 4.71 | 4.09 | 3.64 | 3.29 | 2.89 |
| 100mm | 4.45 | 12.05 | L(m) | 5.76 | 5.02 | 4.47 | 4.05 | 3.56 |
| 120mm | 5.55 | 12.84 | L(m) | 6.53 | 5.68 | 5.07 | 4.60 | 4.04 |
| 150mm | 6.65 | 14.04 | L(m) | 7.56 | 6.58 | 5.87 | 5.32 | 4.68 |
Advantages of PU foam sandwich panel
1. High efficiency and energy saving: Due to its excellent thermal insulation performance, PU foam sandwich panel can significantly reduce the energy consumption of buildings.
2. Green and environmental protection: polyurethane foam is an environmental protection material, non-toxic and tasteless, and will not pollute the environment.
3. Economical and practical: Sandwich panels are moderately priced and have a long service life, with high cost-effectiveness.
4. Multifunctionality: Sandwich panels not only have thermal insulation functions, but also multiple functions such as fire prevention, moisture resistance, and sound insulation.
5. Easy to maintain: The sandwich panel has a high surface finish and is easy to clean and maintain.
PU Foam Sandwich Roof Panel – Load distribution
| Panel Thickness | R-Value(m2.K/W) at 23℃ | Weight(kg) | Load capacity (P=KN/M2) | 0.50 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 2.24 | 10.15 | L(m) | 3.59 | 3.17 | 2.85 | 2.61 | 2.33 |
| 75mm | 3.30 | 11.18 | L(m) | 4.64 | 4.07 | 3.66 | 3.34 | 2.96 |
| 100mm | 4.45 | 12.22 | L(m) | 5.57 | 4.88 | 4.38 | 3.99 | 3.53 |
| 120mm | 5.55 | 13.05 | L(m) | 6.28 | 5.49 | 4.92 | 4.48 | 3.97 |
| 150mm | 6.65 | 14.30 | L(m) | 7.30 | 6.39 | 5.73 | 5.22 | 4.62 |
Application of PU foam sandwich panel
PU foam sandwich panels are widely used in various construction fields, including but not limited to:
- Industrial plant: used for thermal insulation and fire prevention of large-span structural roofs and walls.
- Civil buildings: used for roofs, walls, and partitions of residential buildings, villas, apartments, and other structures.
- Refrigerated/Dry Cargo Carriage: Used for insulation, refrigeration, and manufacturing of dry cargo carriages.
- Purification plant: used in production environments that require high cleanliness, such as electronics, pharmaceuticals, and other industries.
- Container house: used for the manufacturing of temporary buildings and mobile homes.
Installation Considerations
- Site Preparation: Ensure that the building structure is adequately prepared to support the weight of the panels and that proper drainage is established.
- Handling and Storage: Handle PU panels carefully to avoid damage. Store them in a dry location to protect the foam from moisture.
- Sealing and Jointing: Properly seal the joints between panels to prevent air leaks and ensure optimal insulation performance. Use compatible sealants designed for use with PU foam.
- Professional Installation: Engaging experienced professionals for installation ensures that panels are correctly fitted and sealed, maximizing their performance and lifespan.
- Compliance with Building Codes: Ensure that the installation meets local building codes and regulations regarding insulation and fire safety.
In conclusion, PU foam sandwich panel offer a high-performance solution for thermal insulation, energy efficiency, and structural integrity in various applications. Their lightweight nature, excellent thermal insulation properties, and versatility make them a preferred choice in modern construction. By understanding the features and benefits of PU foam sandwich panels, builders and architects can effectively leverage these materials to enhance the sustainability and comfort of their projects, contributing to more energy-efficient buildings.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
