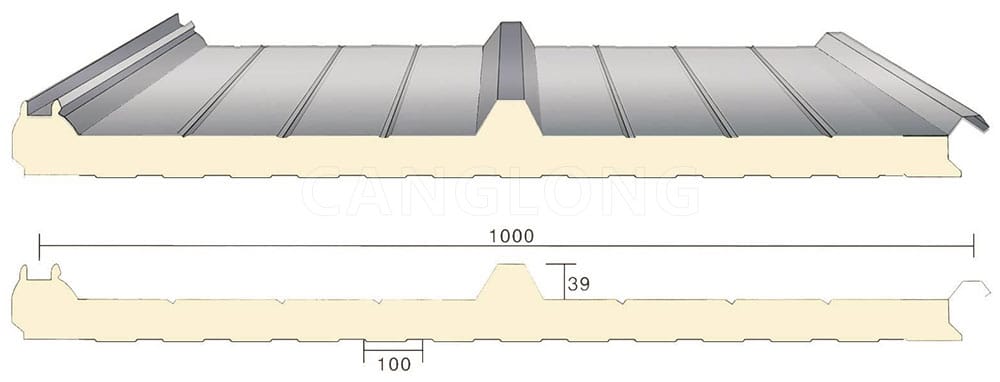

PU Roof Panel
- Effective Width: 1000mm/1m
- Profile Types: two/three/four/five waves
- Metal Sheet Thickness: 0.4mm To 0.8mm
- Color of Steel Plate: Customer customize/Aluminum plate
- Core Thickness: 50/75/80/100/120/150/200mm
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
PU roof panel is a synthetic material board made of polyurethane as the basic raw material. It has excellent physical and chemical properties and is particularly suitable for the roof system of buildings. This material is widely used in the construction industry.

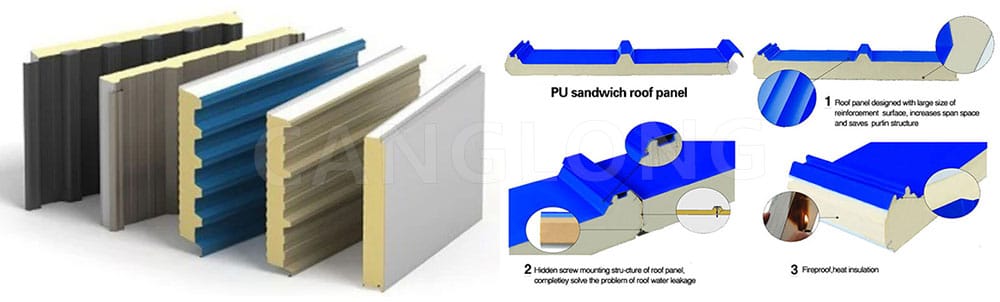

Structure of PU sandwich roof panel
PU sandwich panel is a composite board made of two layers of metal plates or color steel plates with polyurethane foam sandwiched between them. It has multiple functions such as load-bearing, heat preservation, and waterproofing. PU roof panels have two-wave, three-wave, four-wave, and five-wave panels, which can be customized according to different usage scenarios.
Characteristics of PU roof panel
- Excellent thermal insulation performance: PU roof panel has extremely low thermal conductivity, which can effectively reduce heat transfer, improve the thermal insulation effect of buildings, and reduce energy consumption.
- Waterproof and moisture-proof: The material has good waterproof performance, which can effectively prevent rainwater penetration and protect the internal structure of the building from damage.
- Fire retardant: After adding flame retardants, polyurethane becomes a flame-retardant self-extinguishing material, which improves the safety of buildings.
- Lightweight and high strength: PU sandwich roof panel is light in weight but high in strength, can withstand a certain load, and reduce the weight of the building.
- Strong weather resistance: can adapt to various harsh climate environments and extend service life.
- Convenient installation: the board is easy to process and install, and can be cut and spliced according to different needs, shortening the construction period.
| Panel Thickness | R-Value(m2.K/W) at 23℃ | Weight(kg) | Load capacity (P=KN/M2) | 0.50 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 2.24 | 10.15 | L(m) | 3.59 | 3.17 | 2.85 | 2.61 | 2.33 |
| 75mm | 3.30 | 11.18 | L(m) | 4.64 | 4.07 | 3.66 | 3.34 | 2.96 |
| 100mm | 4.45 | 12.22 | L(m) | 5.57 | 4.88 | 4.38 | 3.99 | 3.53 |
| 120mm | 5.55 | 13.05 | L(m) | 6.28 | 5.49 | 4.92 | 4.48 | 3.97 |
| 150mm | 6.65 | 14.30 | L(m) | 7.30 | 6.39 | 5.73 | 5.22 | 4.62 |
Advantages of PU panels
- High overall cost performance: Although the unit price of polyurethane materials may be higher than some traditional insulation materials, its excellent thermal insulation performance can significantly reduce building energy consumption, thereby saving long-term operating costs.
- Environmental protection and energy saving: in line with the concept of modern green buildings, it helps to reduce energy consumption and environmental pollution.
- Beautiful atmosphere: the surface of PU sandwich roof panels can be treated to form various colors and textures to enhance the appearance of the building.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
