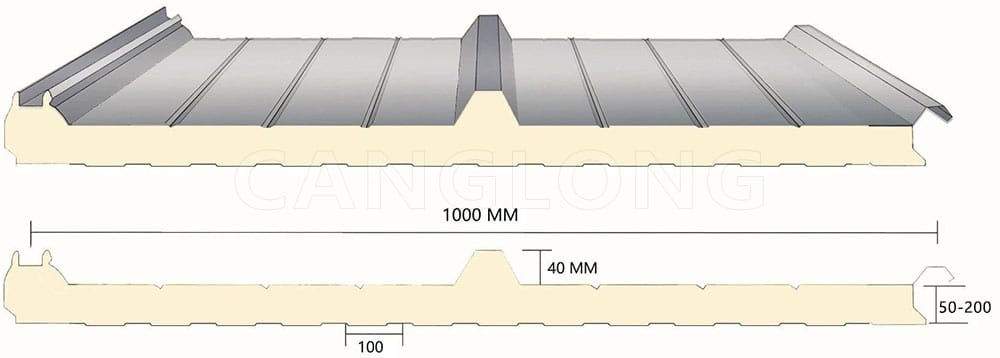

PU Sandwich Roof Panel With 3 Ribs
- Effective Width: 1000mm/1m
- Profile Types: 3 ribs
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Core Material Density: 40 to 45kg/m³
- Color of Steel Plate: RAL color
- Insulation Material: PU/PUR/PIR
- Core Thickness: 50/75/80/100/120/150mm
- Coating: PE/SMP/HDP/PVDF
- Plating: Hot-dip galvanizing/Aluminium/Stainless steel
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details

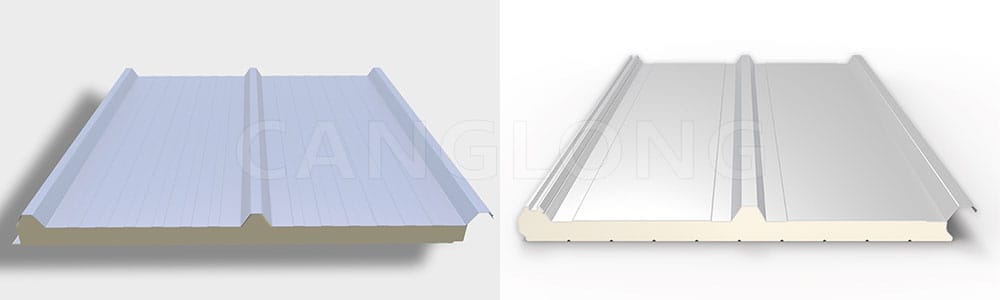

The structure of PU sandwich roof panel with 3 ribs is mainly composed of three layers: the inner and outer layers are metal panels (such as steel plates, aluminum plates, etc., the specific materials may vary depending on the manufacturer and product), and the middle sandwich layer is hard polyurethane foam. This structure is compounded by a special process under high pressure, which makes the sandwich panel have extremely high strength and stability.
Characteristics of PU sandwich roof panel with 3 ribs
- High-efficiency thermal insulation: polyurethane foam as a sandwich layer has an extremely low thermal conductivity, which makes the 3-flute PU sandwich roof panel have excellent thermal insulation performance.
- Good fire resistance: PU sandwich panels have a high fire resistance level, meet national safety standards, and can reduce fire risks to a certain extent.
- Waterproof and moisture-proof: Since the closed-cell rate of polyurethane foam is as high as 90%, the PU sandwich roof panel with 3 ribs has excellent waterproof and moisture-proof properties and is suitable for use in humid environments.
- Lightweight and high strength: Compared with traditional building materials, PU sandwich roof panels with 3 ribs are lighter, but have higher strength and hardness, can withstand larger loads, and are not easy to deform or damage.
- Corrosion resistance: PU sandwich panels have strong resistance to most acids and alkalis, and can maintain their stability in harsh environments.
- Convenient construction: 3-ribs PU sandwich roof panels are easy to cut, paste and fix, and the construction process is simple and fast, without the need for secondary decoration.
PU Sandwich Roof Panel – Load distribution
| Panel Thickness | R-Value(m2.K/W) at 23℃ | Weight(kg) | Load capacity (P=KN/M2) | 0.50 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 2.24 | 10.15 | L(m) | 3.59 | 3.17 | 2.85 | 2.61 | 2.33 |
| 75mm | 3.30 | 11.18 | L(m) | 4.64 | 4.07 | 3.66 | 3.34 | 2.96 |
| 100mm | 4.45 | 12.22 | L(m) | 5.57 | 4.88 | 4.38 | 3.99 | 3.53 |
| 120mm | 5.55 | 13.05 | L(m) | 6.28 | 5.49 | 4.92 | 4.48 | 3.97 |
| 150mm | 6.65 | 14.30 | L(m) | 7.30 | 6.39 | 5.73 | 5.22 | 4.62 |
Application of 3 ribs PU sandwich roof panels
3-flute PU sandwich roof panels are widely used in various construction fields that require thermal insulation, such as industrial plants, warehouses, cold storage, gymnasiums, exhibition halls, etc. In addition, due to its light weight and high strength, it is also often used in temporary buildings, modular houses, mobile houses, etc.
Advantages of PU sandwich roof panels
- Reduce energy consumption: Due to the excellent thermal insulation performance of 3-ribs PU sandwich roof panels, it can significantly reduce the energy consumption of buildings and reduce operating costs.
- Extend service life: The sandwich panel has strong resistance to harsh environments, is not easy to age, and has a long service life.
- Improve the quality of the building: The PU sandwich roof panel with 3 ribs has a beautiful appearance and good overall effect, which can improve the overall quality and beauty of the building.
- Environmental protection and energy saving: The production process of the PU sandwich panel does not require the use of CFCs (chlorofluorocarbon compounds), which is environmentally friendly and in line with the current green energy-saving trend.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
