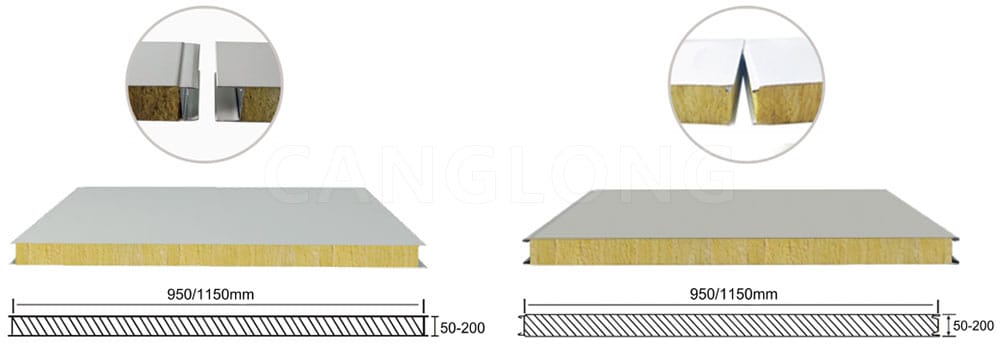

Rock Wool Sandwich Panel
- Effective Width: 950/1150mm
- Core Material Density: 80-120kg/m³
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Color of Steel Plate: White/Offwhite/Blue (Ral Color)
- Core Thickness: 50/75/100/150/200mm
- Coating: PE/HDP/PVDF/SMF
- Plating: Hot-galvanize/Aluminium/Stainless
- Sound Insulation: ≥30db
- Flammability Rating: A
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
Rock wool sandwich panel is a type of sandwich panel made from rock wool as raw material, which fully utilizes the unique properties of rock wool core material and has significant effects in fire prevention, thermal insulation, sound absorption and insulation.

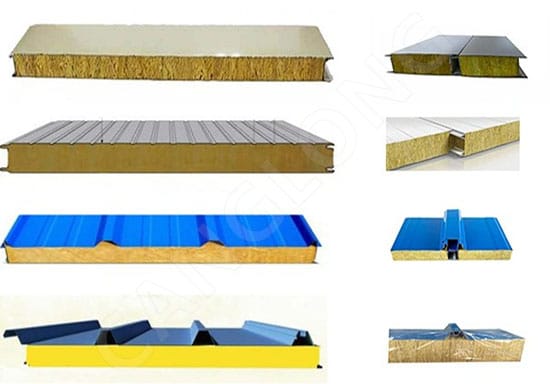

Structure of rock wool sandwich panel
Rock wool sandwich panels mainly consists of the following three parts:
- Surface material: The surface of rock wool panels usually uses various metal sheets as panels, such as color coated steel plates (also known as color coated steel plates), galvanized steel plates, stainless steel plates, or aluminum plates. These surface materials not only have a beautiful appearance, but also have good corrosion resistance and wind pressure resistance, which can protect the rock wool core material from external environmental erosion.
- Core material: The core layer of rock wool sandwich panel is rock wool, which is an inorganic fiber material with excellent fire resistance, insulation, heat insulation and sound absorption properties. Rock wool core material is processed into boards with a certain thickness and density through specific processes, and filled between surface materials to provide insulation, heat preservation, and enhance structural strength.
- Adhesive layer: In the manufacturing process of rockwool sandwich panels, a special adhesive is usually used to firmly bond the surface material and core material together. This adhesive needs to have good bonding performance and weather resistance to ensure that the rock wool sandwich panel will not experience delamination or cracking during long-term use.
Rock Wool Sandwich Wall Panel Parameters
| Panel Thickness | Heat Conductivity (W/m2.K) | Weight(kg) | Load capacity (P=KN/M2) | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 0.75 | 15.53 | L(m) | 3.66 | 3.13 | 2.75 | 2.46 | 2.12 |
| 75mm | 0.53 | 18.37 | L(m) | 4.90 | 4.22 | 3.73 | 3.35 | 2.91 |
| 100mm | 0.41 | 21.21 | L(m) | 5.99 | 5.17 | 4.58 | 4.12 | 3.59 |
| 150mm | 0.31 | 26.88 | L(m) | 7.82 | 6.75 | 5.98 | 5.37 | 4.68 |
Characteristics of rock wool sandwich panel
- Excellent fire resistance: The raw material of rockwool sandwich panel is natural rock, which has excellent fire resistance. According to relevant tests, the fire resistance limit of rock wool sandwich panels can reach more than 4 hours, effectively preventing the spread of fires.
- Good insulation performance: Rock wool sandwich panels have low thermal conductivity, which can effectively reduce heat transfer and maintain stable indoor temperature.
- Significant sound absorption and insulation effect: Rock wool sandwich panels have good sound insulation effect, which can reduce the impact of noise on work and life.
- Good stiffness: Rock wool sandwich panels have high compressive, tensile, and bending strength, suitable for the structural requirements of various buildings.
- Reasonable fastening method: The polyurethane double-sided rock wool roof panel adopts a fastening interface to save the use of parts.
- The fixing method is firm and reasonable: The polyurethane double-sided rock wool roof panel is fixed with specially made M6 self tapping screws and steel purlins, which can resist strong external forces such as typhoons.
Rock Wool Sandwich Roof Panel Parameters
| Panel Thickness | Heat Conductivity (W/m2.K) | Weight(kg) | Load capacity (P=KN/M2) | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 0.75 | 15.75 | L(m) | 3.78 | 3.13 | 3.31 | 2.98 | 2.41 |
| 75mm | 0.53 | 18.68 | L(m) | 4.83 | 4.21 | 4.21 | 3.76 | 3.01 |
| 100mm | 0.41 | 21.62 | L(m) | 5.77 | 5.02 | 5.02 | 4.47 | 3.55 |
| 150mm | 0.31 | 27.51 | L(m) | 7.53 | 6.54 | 6.54 | 5.82 | 4.61 |
Application of rock wool sandwich panel
Rock wool sandwich panels are widely used in various fields due to their excellent performance:
- In the field of public buildings, rock wool panels are widely used in office buildings, hotels, hospitals and other public buildings. Their superior fire resistance and thermal insulation properties provide a safe and comfortable working environment for personnel.
- In the field of industrial construction, rock wool sandwich panels can be used for the exterior walls and roofs of industrial plants, warehouses, and other buildings, effectively reducing energy consumption and lowering operating costs.
- In the field of scientific research architecture, buildings such as research office buildings have high requirements for fire performance, and rock wool sandwich boards precisely meet this demand. In addition, its sound insulation and absorption performance also helps improve the work efficiency of researchers.
- In the field of environmental protection and energy conservation, rock wool sandwich panel is a green and environmentally friendly building material that does not contain harmful substances and does not pollute the environment. At the same time, its thermal insulation performance helps to reduce the energy consumption of buildings, which is in line with the policy orientation of energy conservation and emission reduction.
Advantages of rock wool sandwich panel
- Short installation cycle: The rock wool sandwich panel adopts prefabricated components, making on-site installation simple and fast, greatly shortening the project cycle and reducing construction costs.
- Scratch protection: During the production of rock wool sandwich board, polyethylene adhesive protective film can be pasted on the surface to avoid scratches or wear on the surface coating of the steel plate during transportation and installation.
- Beautiful and generous: The interface of the rock wool sandwich panel is designed according to European standards, with a smooth and smooth appearance, a flat and beautiful surface, tight joints, reliable strength, and effective prevention of cold and hot bridges.
Sandwich Panel Production Workshop

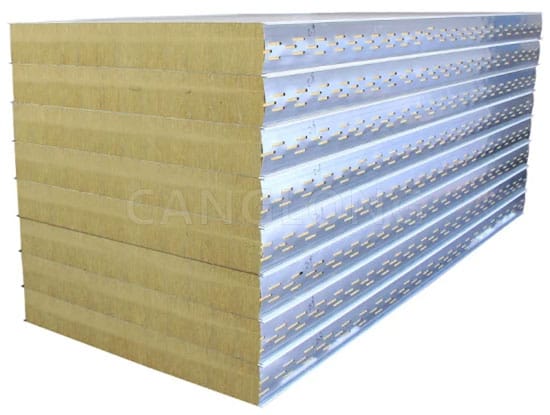

Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
