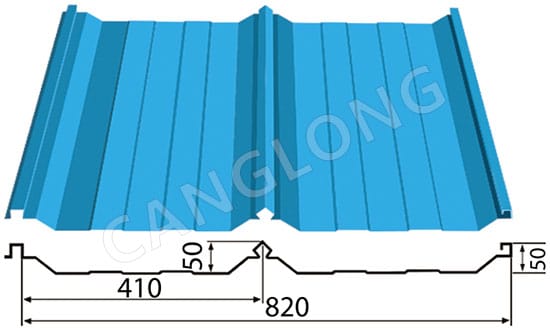

W820 Type Roof Sheet
- Coverage Width: 820mm
- Sheet Thickness: 0.3mm to 0.8mm
- Color of Steel Plate: Blue, White, Gray, Off white, Brick red or Customized
- Substrate: Carbon structural steel rolled plate/Stainless steel/Aluminum
- Metallic Coating: Galvanized sheet/Alu-zinc sheet/Alu-zinc-magnesium sheet
- Surface: Wood grain/Camouflage/Matte/Orange peel/Pearlescent
- Coating: PE/SMP/HDP/PVDF
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
The 820mm wide color steel roof sheet is a common building material with unique structure, characteristics, wide application scenarios and significant advantages. It is one of the indispensable and important materials in the construction industry.

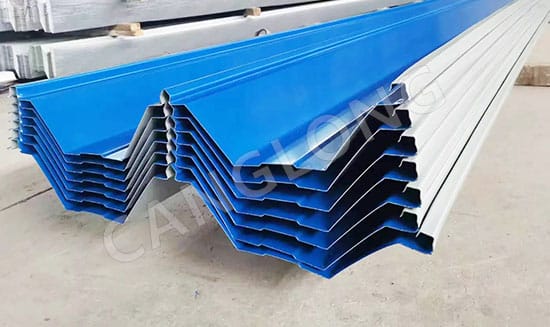

The w820 type roof sheet is a profiled plate formed by color-coated steel plate and cold bending by roller. Its structure usually includes multiple corrugated or ribbed sections for added strength and stability. These corrugated or ribbed sections allow the color steel roof panels to more effectively distribute the load when stressed, thereby increasing their load-bearing capacity.
Features of w820 type roof sheet
1. Light weight: Color steel roof sheets are relatively lightweight, which helps reduce the overall weight of the building and reduce foundation treatment costs.
2. High strength: Although light in weight, color steel roof sheets have high strength and stability and can withstand greater wind and snow pressure.
3. Thermal insulation: Color steel sheets have good thermal insulation properties, which can effectively reduce building energy consumption and improve building energy efficiency.
4. Waterproof and anti-corrosion: The specially treated color coated metal sheets have excellent waterproof and anti-corrosion properties, which can effectively extend the service life.
5. Convenient construction: The installation of color coated steel roof sheet is simple and fast, greatly shortening the construction period.
| Specification | Thickness | 0.3mm-0.8mm |
| Width | 750mm-900mm | |
| Zinc coating | 40g/m2-600g/m2 | |
| Length | 1800-4000mm | |
| Painting | Top paint: 15-25um, Back paint:5-7um | |
| Color | Bright red, Sea blue and White grey, or according to the Ral Number | |
| Place of Origin | Henan, China (Mainland) | |
| Coil Weight | 2-8 Tons | |
| Standard | ASTM A653, JIS G3302, DX51D, SGCC | |
| Coating Type | Galvanized, Galvalume, Prepainted coating(PE, SMP, HDP, PVDF) | |
| Surface Treatment | Regular spangle, chromated, unoiled, smooth | |
| Section Inertia(cm4/m) | 28.00 | 49.01 |
| Section Resistance(cm3/m) | 15.22 | 26.49 |
| Application | Exterior and interior wall, Roofs,and Soffits | |
| Package | Seaworthy export package / depends on customer’s requests | |
| MOQ | 25 tons or one container | |
Application of w820 type roof sheet
820mm wide color steel roof sheets are widely used in various building structures, especially in places that require rapid construction and long-term use. For example:
- Residential: Color steel plate can be used on residential roofs and walls to provide stable structural support and good thermal insulation effects.
- Industrial plants: In industrial plants, color steel roof sheets are often used as roofing materials to meet the high requirements for strength and stability.
- Warehouse: Color steel sheets are also suitable for roofs and walls of storage facilities such as warehouses, with good waterproof and anti-corrosion properties.
- Public buildings: Public buildings such as gymnasiums and exhibition halls also often use roof sheet as roofing materials to meet the needs of rapid construction and long-term use.
Advantages of w820 type roof sheet
- Economical: Color steel sheets have a high cost performance, which can reduce construction costs and improve economic benefits.
- Durability: Specially treated color steel roof sheets have a long service life, reducing the frequency of maintenance and replacement.
- Environmental protection: The production and recycling process of roof sheet has less impact on the environment and meets the requirements of sustainable development.
- Flexibility: Color coated metal sheets can be customized according to specific needs, such as length, color, thickness, etc., to meet diverse building needs.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
