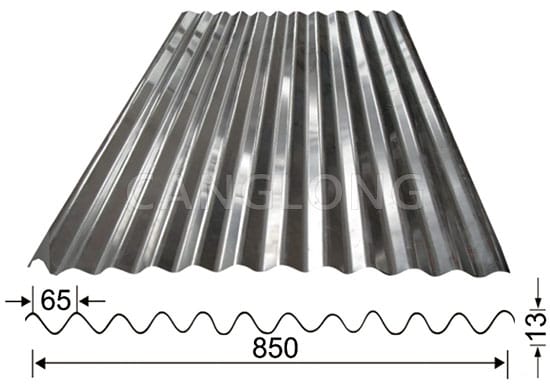

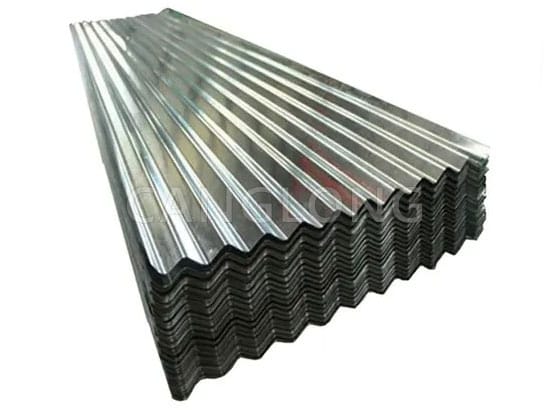

W850 Type Wall Metal Sheet
- Coverage Width: 850mm
- Sheet Thickness: 0.3mm to 0.8mm
- Color of Steel Plate: Blue, White, Gray, Off white, Brick red or Customized
- Substrate: Carbon structural steel rolled plate/Stainless steel/Aluminum
- Metallic Coating: Galvanized sheet/Alu-zinc sheet/Alu-zinc-magnesium sheet
- Surface: Wood grain/Camouflage/Matte/Orange peel/Pearlescent
- Coating: PE/SMP/HDP/PVDF
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
W850 type wall metal sheet has become an ideal wall material in modern buildings due to their excellent structural characteristics, diverse application fields and significant advantages. Whether in industrial or commercial areas, color steel wall panels can provide efficient, economical and beautiful solutions.
Color coated corrugated galvanized roofing sheet is suitable for industrial and civil buildings, warehouses, special buildings, large-span steel structure house roof, wall and internal and external wall decoration, with light weight, high strength,convenient and quick construction, seismic, fire prevention, rain prevention, long life, maintenance free characteristics.
Features of wall metal sheet
1. Thermal insulation: It has good thermal insulation properties and can effectively reduce energy consumption.
2. Lightweight and high strength: Compared with traditional building materials, metal wall sheets are light in weight, high in strength, and easy to transport and install.
3. Fire protection performance: The selected insulation materials can provide certain fire protection properties and meet building safety requirements.
4. Beautiful and diverse: A variety of colors and surface treatments can be provided according to customer needs to enhance the appearance of the building.
| Specification | Thickness | 0.3mm-0.8mm |
| Width | 750mm-900mm | |
| Zinc coating | 40g/m2-600g/m2 | |
| Length | 1800-4000mm | |
| Painting | Top paint: 15-25um, Back paint:5-7um | |
| Color | Bright red, Sea blue and White grey, or according to the Ral Number | |
| Place of Origin | Henan, China (Mainland) | |
| Coil Weight | 2-8 Tons | |
| Standard | ASTM A653, JIS G3302, DX51D, SGCC | |
| Coating Type | Galvanized, Galvalume, Prepainted coating(PE, SMP, HDP, PVDF) | |
| Surface Treatment | Regular spangle, chromated, unoiled, smooth | |
| Section Inertia(cm4/m) | 28.56 | 38.08 |
| Section Resistance(cm3/m) | 3.42 | 6.83 |
| Application | Exterior and interior wall, Roofs,and Soffits | |
| Package | Seaworthy export package / depends on customer’s requests | |
| MOQ | 25 tons or one container | |
Application of metal sheet
W850 type wall metal sheets are widely used in:
- Industrial plants: used for exterior walls and interior partitions of workshops, warehouses, logistics centers, etc.
- Commercial buildings: such as interior and exterior wall decoration of exhibition halls, shopping malls, etc.
- Agricultural buildings: walls of greenhouses, farms and other facilities.
- Temporary buildings: Such as construction site offices, mobile homes and other places that can be quickly built.
Advantages of metal wall sheet
- Convenient construction: Due to its lightweight characteristics, installation speed is fast, shortening the construction period and reducing labor costs.
- Economical: The cost of color steel wall sheet is relatively low, and its good thermal insulation properties can reduce long-term energy expenses.
- Durability: The anti-corrosion performance of metal sheet and the durability of insulation materials make color steel wall panels durable in various environments.
- Environmental protection: Recyclable materials meet the requirements of modern green buildings and reduce the impact on the environment.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
